BOX BATTERY FOR 3 BATTERIES


Battery box made of a Bakelite material that will accommodate up to a maximum of three 1.5v dry cells (R40 type).  The box has two internal terminal plates for connecting the batteries and external wiring.

Two screws secure the cover to the base and the base has two screw holes for securing the unit to a wall or similar surface.

Dimensions:- 8.5" x 3.75" x 7.75"


External view

Internal view with cover removed
Three cells R40 in situe

Internal view with cover removed

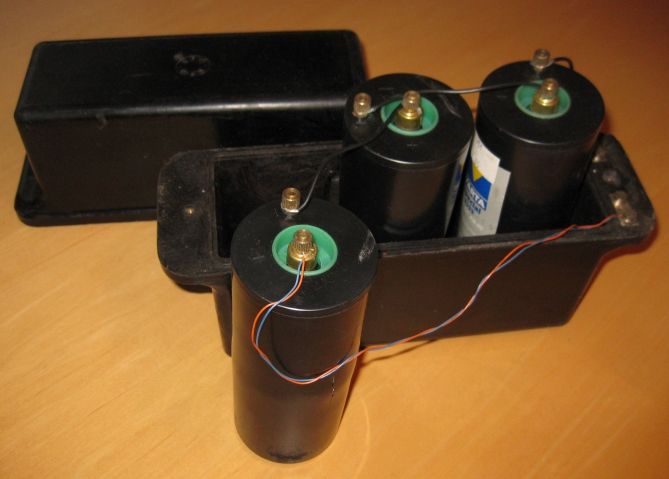

One cell removed

Internal view with ruler
