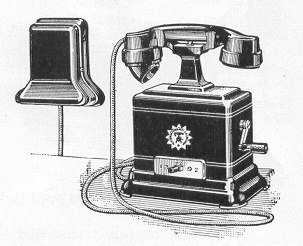

SWEDISH TELEPHONE No. AE 265 & 270


AE 265 & AE 270
Intermediate magneto table telephone for two lines

Parts:
bell 1000 ohm, microtelephone RE 1044 of black bakelite with removable capsule transmitter RC 4000/40, 40 ohm, and cord RS 6160, generator according to the table, case of black enamelled sheet iron, wall fitting with a 1000 ohm bell and instrument cord RS 9808.

The telephone has a three-way key by means of which connection to or interconnection of the other two telephones may be established.

Dimensions:
height 275 mm, width 245 mm, depth 150 mm.

Catalogue Number generator number of magnets weight kg
AE 265 RH 4451 4 6.3
AE 270 RH 5502 5 6.7

Connection to the lines is made when the key is in left or right position. When it is in central position the two lines are joined and the conversation can then not be heard in the intermediate telephone. Two dry cells RK 210 are required for this telephone. A suitable battery case is RK 2300. By means of bracket DL 502 these telephones may be used as wall sets.

Taken from the L. M. Ericsson Telephones and Signalling Material Catalogue No. 188 (1934)
