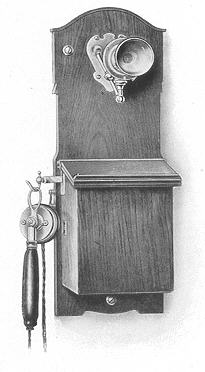

Type CD 120


Common Battery Wall Telephone

FRAMEWORK, polished walnut.

TRANSMITTER. RC 141, on adjustable arm RC 602.

RECEIVER. RD 201, with cord RS 4010 (Old No. 2094), suspended on a hook-switch.

CONDENSER, with a capacity of two microfarads.

RINGER. 1,000 ohms resistance.

The line terminals are enclosed, and a clip for papers is provided. A protector is mounted on the lower part of the backboard.

Overall dimensions
Height 18.90 inches
Width 9.15
Depth 8.25

Weight 9.25 lbs.

Taken from the Ericsson Telephone Catalogue 1912
