ERICSSON

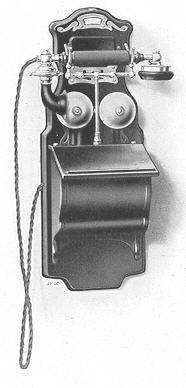

TELEPHONE No. CD 570



Type CD 570


Common Battery Wall Telephone

FRAMEWORK, entirely of steel, black enamelled.

MICRO-TELEPHONE. RE 1001, with cord RS 6000, resting on a cradle-switch.

CONDENSER, with a capacity of two microfarads.

RINGER. 1,000 ohms resistance.

The line terminals and a protector are enclosed in the instrument.

Overall dimensions
Height 20.00 inches
Width 7.50
Depth 6.90

Weight 10.14 lbs.

 Taken from the Ericsson Telephone Catalogue 1912
