ERICSSON TELEPHONE No. 301


MAGNETO WALL SETS for TERMINAL STATIONS

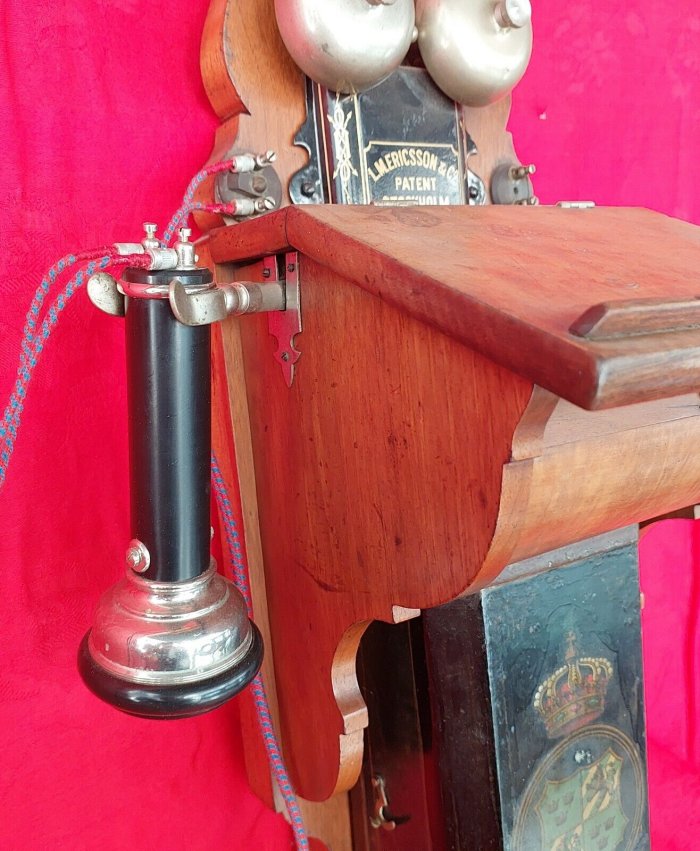

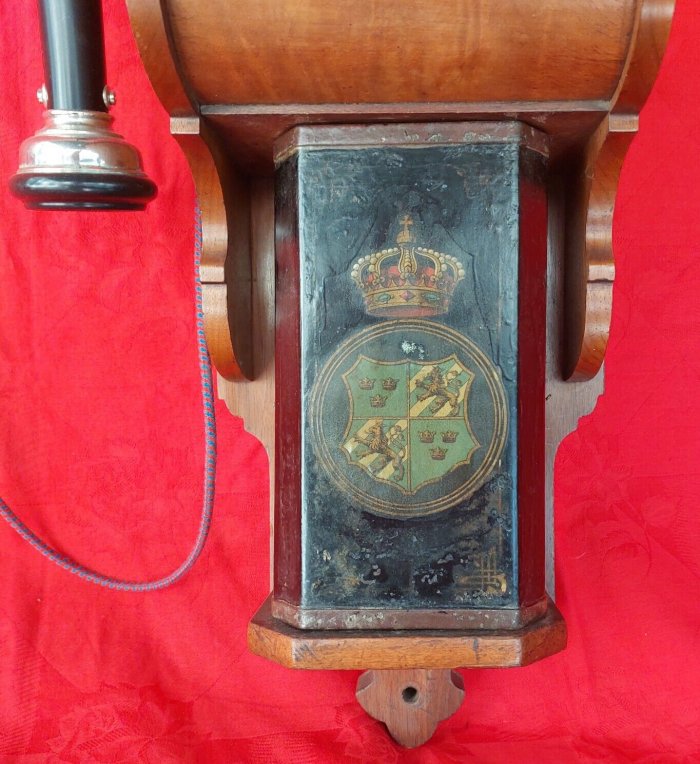

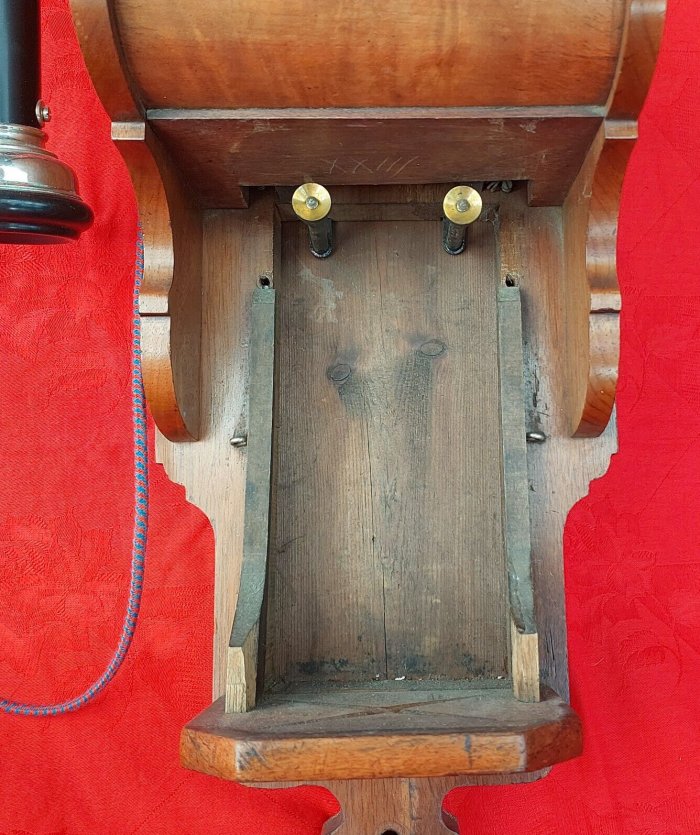

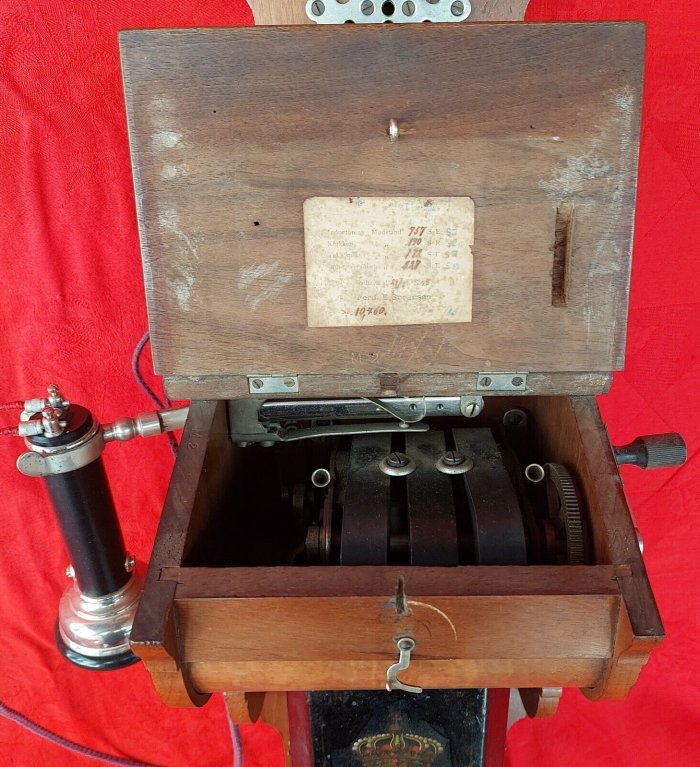

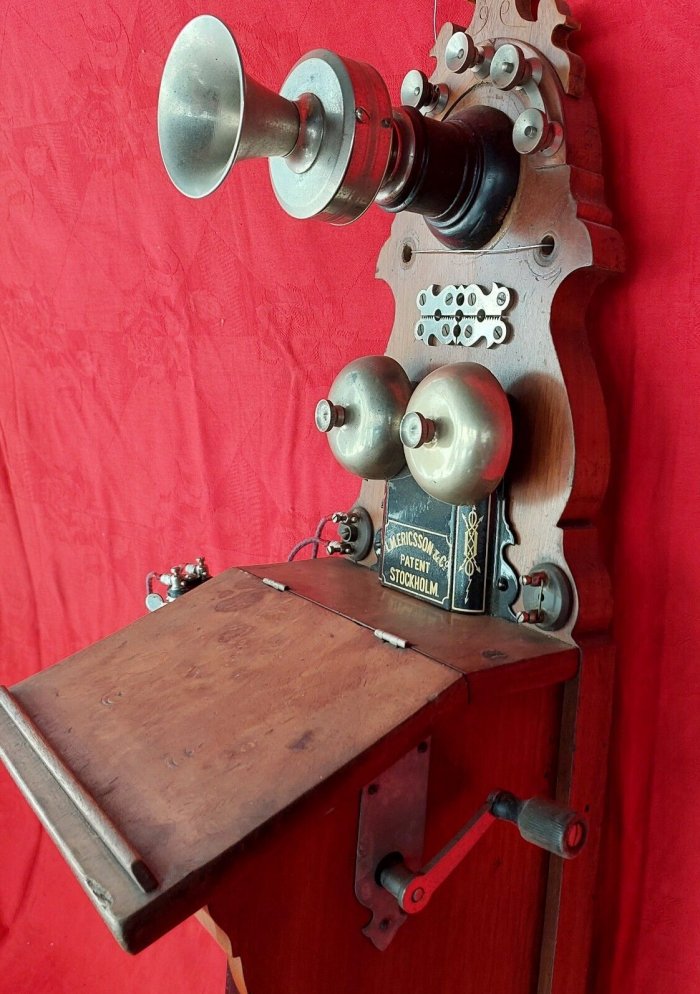

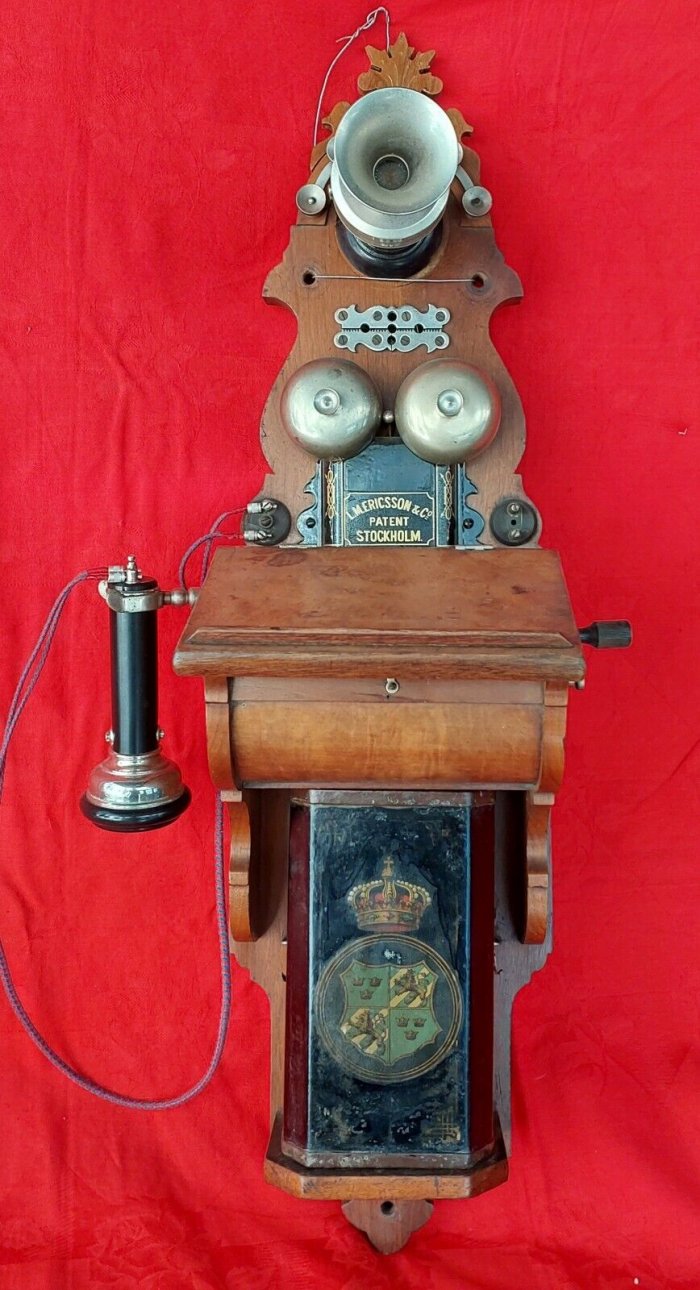

This instrument is of the ordinary size, and is fitted with fixed transmitter No. 570, receiver No. 546 with cord No. 2030, three-magnet generator No. 480, which will ring satisfactorily through the 300 ohm bell of the instrument and a line resistance of 20,000 ohms; also a lightning arrestor, and terminals for the lines, earth, extension bell, and extra receiver. A battery box to accommodate two small Leclanche cells or dry cells No. 972 is also included.

Weight: 6.5 lbs. Price 3.1.6

Taken from the Ericsson Telephone Catalogue 1903 and also in the 1897 Catalogue

Introduced around 1882
