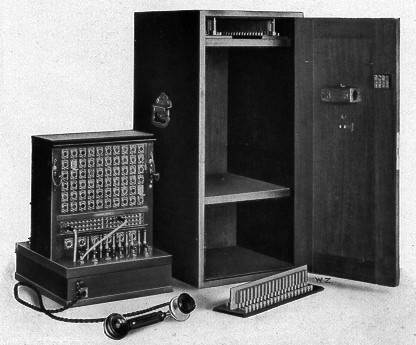

ERICSSON SWITCHBOARD No. MC 200


(Old Catalogue No. 860)
Portable Switchboards
Metallic Circuit
Local Battery System


THE CONNECTIONS ARE MADE BY MEANS OF CORDS AND PLUGS.

CAPACITY
60 Lines.

FRAMEWORK
Polished walnut.

EQUIPMENT
GENERATOR. RH 5050, 5-magnet.
60 CONNECTING JACKS.
MICROTELEPHONE. RE 2056, with cord
6 PAIRS OF CORDS AND PLUGS. RS 7501.
1 OPERATOR's KEY for each cord circuit.
BATTERIES. 2 Dry Cells, RK 190 (Old Catalogue No. 600)
1 RINGING KEY for the Hand-Generator.
1 RINGING KEY for a Power Generator.
CARBON LIGHTNING PROTECTOR for 60 m.c. lines.
60 CALLING INDICATORS.
6 CLEARING INDICATORS.
NIGHT BELL.
NIGHT BELL SWITCH.
PROTECTING CASE OF OAK.

DIMENSIONS OF PROTECTING CASE
Height 30.30 inches.
Width 13.75
Length 15.90

Weight of switchboard and protectors, 119 lbs.

If specially ordered this type of switchboard can be supplied for any number of lines.

Taken from the Ericsson Telephone Catalogue 1914
