N 1421A
This distinctive and pleasing design of wall type telephone follows to a
very large extent its prototype the table set, and as it occupies a small amount of space
it is ideally suitable where permanent fixing is desired. C. B. Telephones
N 1421A
This distinctive and pleasing design of wall type telephone follows to a
very large extent its prototype the table set, and as it occupies a small amount of space
it is ideally suitable where permanent fixing is desired.

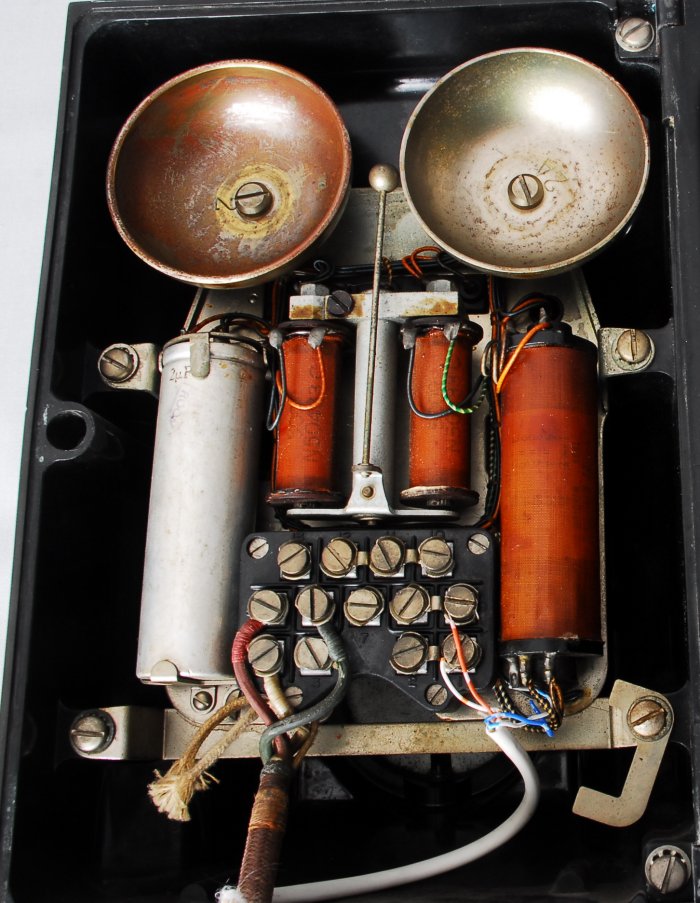

The moulded Bakelite casework is gate-hinged on a metal baseplate, to which it is fastened by one screw, and the cradle is designed to allow the micro-telephone to be suspended vertically over the front of the instrument during the temporary absence of the user. The interior apparatus, consisting of anti-side-tone induction coil, condenser, ringer, switch and terminals, is mounted as a unit which can be readily removed from the case; alternatively, the case with equipment unit attached, can be lifted off the hinges for maintenance purposes.
The Bakelite micro-telephone is of a type notable for its reception and transmission qualities.
Normally produced in black, these telephones can also be obtained in Chinese red, ivory
or jade green if specially ordered.
Micro-telephone cord N4021
Inset N7752
Mouthpiece N8634
Receiver N6819
Earpiece N4443
Receiver diaphragm N4400
| Code No. | Description | Dimensions | Weight | P.O. No. |
| N1421A | Black Bakelite wall telephone | 8 x 9 x 4 | 5.5 |
Taken from the Ericsson catalogue, edition No. 49
