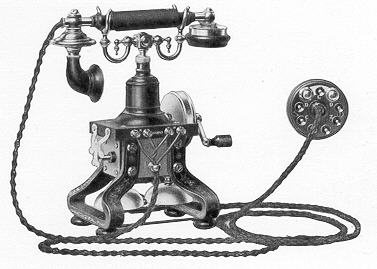

ERICSSON TELEPHONE No. N2000


Magneto Table Telephone
N 2000

This exclusive instrument is a masterpiece of unique design and is undoubtedly the handsomest set in the industry.

The micro-telephone rests on a cradle which operates the switch springs.

The generator armature is totally enclosed and the 2 magnets of large cross section also form the legs of the telephone.

The generator will operate a 1000 ohm ringer satisfactorily through a line resistance up to 15,000 ohms.

The ringer has a resistance of 1000 ohms and the sound from the domes is not restricted, although they are well protected from accidental damage.

The cord connections from the micro-telephone and terminal block are made to terminals on the ebonite base-plate.

A disc type lightning arrester is fitted on the terminal block.

Parts
Micro-telephone N5803
Micro-telephone cord N4002
Terminal block cord N4091

Overall dimensions 12 x 10.25 x 5.5 inches

Weight 11.75 lb.

Taken from the Ericsson catalogue, edition 26
