ERICSSON TELEPHONE
No's N2100, N2102 & N2103


Magneto Table Telephone

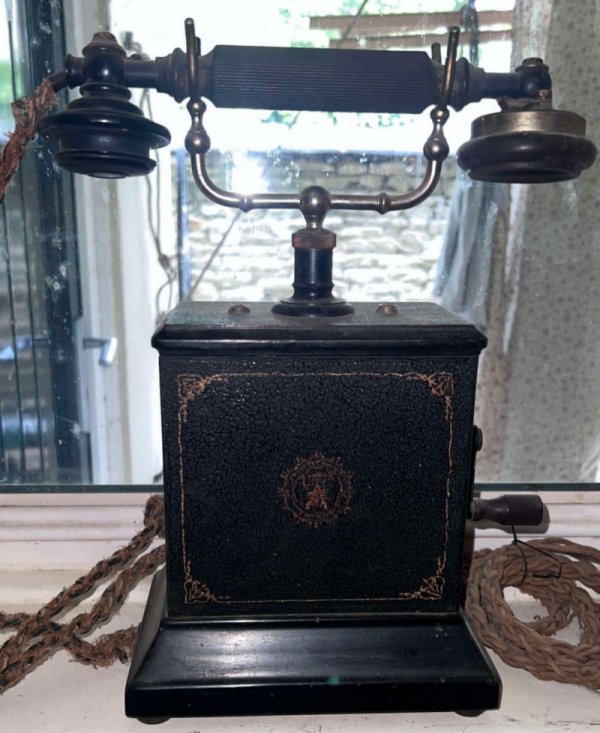

N2100

The case is constructed in three parts : the base and body of metal black enamelled, and the top of hardwood ebonized.

The body is relieved by gold transfers of artistic design.

This is the standard table instrument for all kinds of magneto working up to the largest installation.

Generator : 4 magnets.
Ringer : 1000 ohms.

The working parts and terminals are totally enclosed, making the set very compact.

A lightning arrester is fitted in the terminal block.

Micro-telephone N5802
Micro-telephone cord N4001
Terminal block cord N4090

Overall dimensions 13 x 10.25 x 5.5 inches.
Weight 11.5 lb.

If specially ordered, we can supply this set with a 300 ohm ringer, i.e., series circuit.

Stockholm design, introduced around 1901

N2100 - without condenser
N2102 - with 5uf condenser
N2103 - with 2uf condenser

Taken from the Ericsson catalogue, edition 26
