ERICSSON TELEPHONE No. N2204A


Magneto Telephones


N 2204 Type

This instrument is the equivalent of the modern bakelite table set but arranged for wall mounting, and is ideal for indoor use where space is limited.

The casework is of the same neat design as that used for the automatic and C.B. sets and embodies the same new features, i.e. the case is gate-hinged and the cradle construction enables the micro-telephone to be suspended vertically over the front of the instrument.

The interior components, consisting of  "alnico" generator, anti-side-tone induction coil, condenser, ringer, switch and terminals, are mounted as a unit which can be readily removed from the case; alternatively, the case with equipment unit attached can be lifted off the hinges for maintenance purposes.

Sets are available with standard generators or, for long line working, with heavy duty generators.

H.M.T. cord N4021
Receiver N6819
Earpiece N4443
Receiver Diaphragm N4400
Mouthpiece N8634
Generator Handle N71936
Inset N7752

Supplied worldwide (including GEC) in all four, standard colours.

Code No.   Generator   Ringer ohms   Dimensions   Weight lb
N2204A   Standard   1000   8.5 x 9.25 x 4.5   8
N2204B   Heavy Duty   2000   8.5 x 9.25 x 4.5   8.5

Taken from the Ericsson catalogue, edition No. 49

Click here for an article from the Ericsson Bulletin

Introduced circa 1951 - Taken from Diagram N77376 - Telephone N2204A8T.

N2204CA is a similar telephone with a single press button in the casing - click here for more information.

Complete Telephone
Telephone with case open for inspection.  The cover is hinged on the left hand side and all the components are fixed to a chassis.
Telephone with chassis removed

See also the GEC ST3131


Ericsson N2204CA3

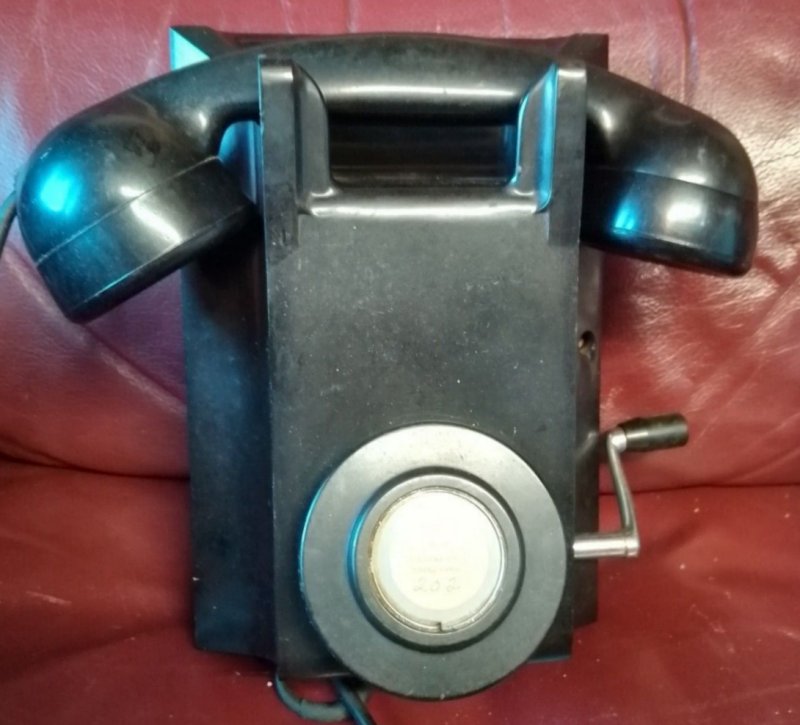

View of the Phone

When this instrument was supplied for either the Canadian or US markets it was fitted with a US type F-1 transmitter instead of the Transmitters, Inset No. 13.  In later models the Transmitter used was the US type G-1 (WE 500 series telephone) transmitter. The picture above shows the F-1 transmitter.
