ERICSSON TELEPHONE No. N2800, N2801, N2830, N2831, N2860 & N2861


Steel Case Magneto Wall Telephones

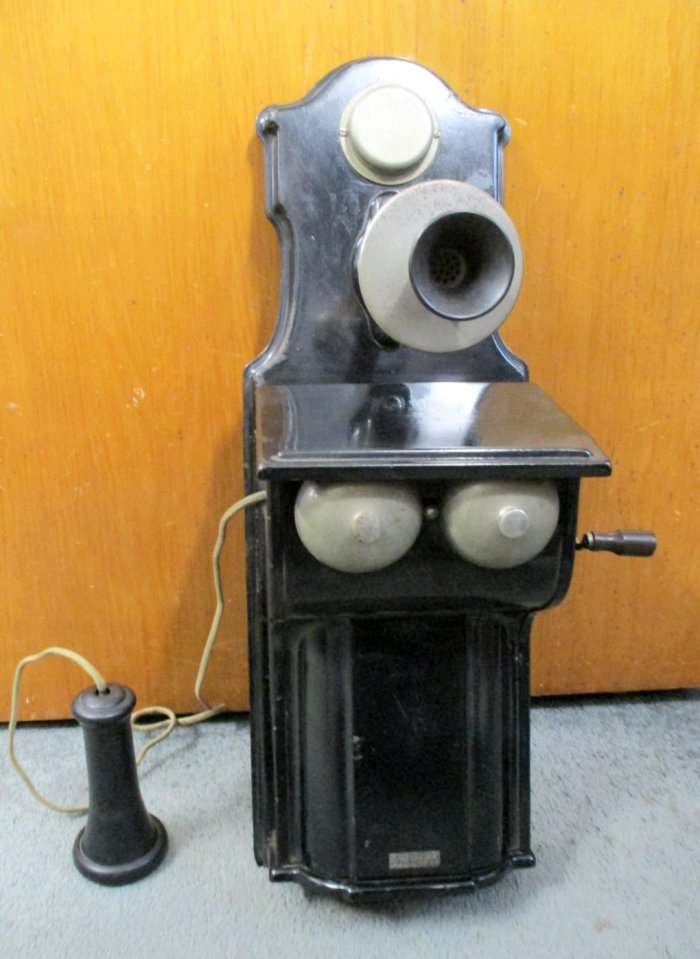

N 2800 N 2830 N 2860


The case is built up from pressed steel, finished with a pleasing and durable black enamel, relieved by nickel-plated metal fittings and incorporating a convenient writing desk.

A separate receiver and transmitter, hanging micro-telephone or micro-telephone resting on a cradle, as desired.

The generators will operate a 1000 ohm ringer satisfactorily through a line resistance up to 30,000 ohms.

Polarised ringers-for resistance see table below.

The transmitter arm on N2800 type is adjustable for height.

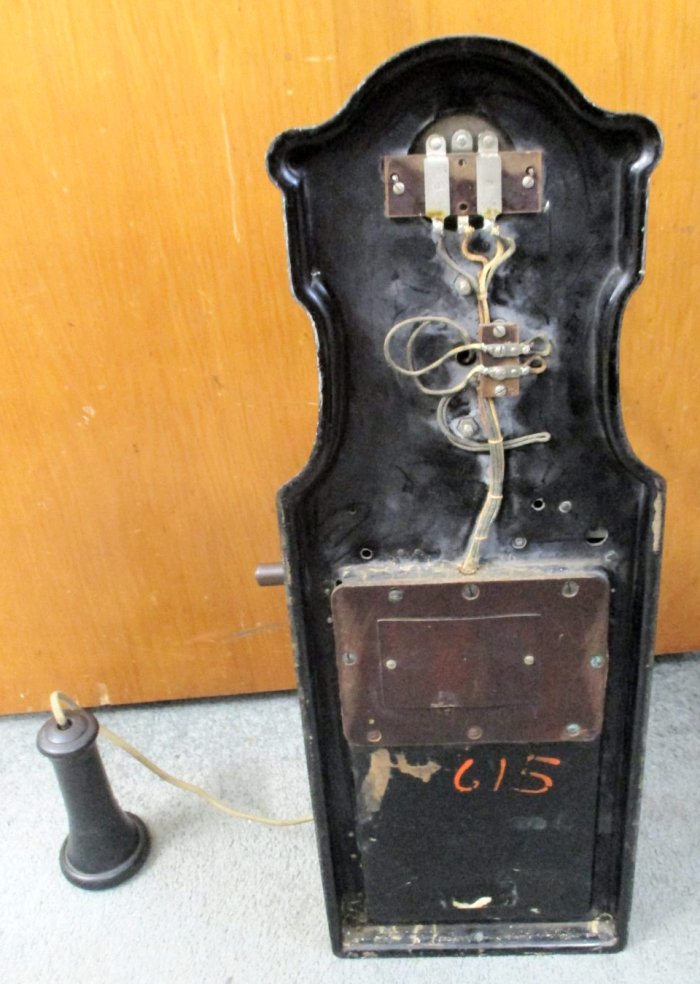

The terminals are enclosed, mounted on ebonite, and all parts of the circuit are very efficiently insulated from the case.

A lightning arrester is fitted.
The battery compartment will accommodate 2 dry cells each having maximum dimensions up to 2.25 x 2.25 x 6.5 inches.

Parts
Receiver N6801
Micro-telephone N5801
Micro-telephone N5800
Cord N4060
Cord N4000
Cord N4000
Transmitter N7705

Code No.   Circuit description   Generator magnets   Ringer ohms   Dimensions   Weight lb
N2800   Standard bridging   4   1000   22.1 x 10.5 x 8.5   16.5
N2801   Heavy bridging   5   2000   22.1 x 10.5 x 8.5   17.5
N2830   Standard bridging   4   1000   22.1 x 10.5 x 7.5   16
N2831   Heavy bridging   5   2000   22.1 x 10,5 x 7.5   17
N2860   Standard bridging   4   1000   22.1 x 8 x 7.25   16.25
N2861   Heavy bridging   5   2000   22.1 x 8 x 7.25   17.25

For tropical climates these instruments are specially treated, and are not fitted with lightning arresters.

Taken from the Ericsson catalogue, edition 26
