ERICSSON SWITCHBOARD No. N660


Magneto Wall Switchboards

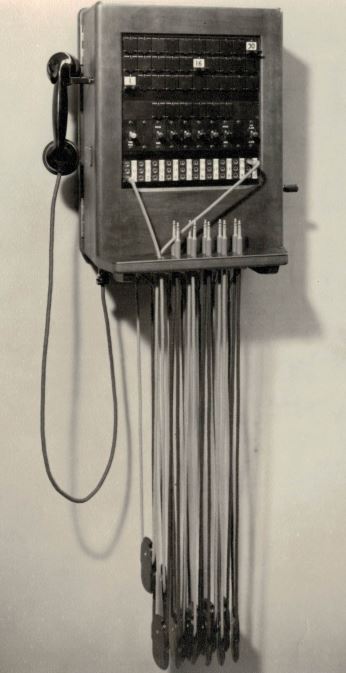

N 660A3 shown

n660a3.jpg (10086 bytes)Designed to give full operating facilities and constructed to occupy small space, these switch-boards are particularly suitable where a high-grade magneto installation is desired.

The woodwork is matt polished and the metal parts are finished in durable black.

Equipped with line indicators and jacks, clearing indicators, speaking and ringing keys and a "ring back" key to ring on the answering cords should it be necessary, also night bell, switch, generator and micro-telephone so that these switchboards are complete and do not require a separate telephone for the operator.

The case is standardised for all equipment's, dummies being fitted in the spaces of partially equipped boards.

All boards are wired for the full capacity of 30 lines and 6 cord circuits so that those having part equipment's can be considerably and readily extended as required.

The layout of a fully equipped front panel from the top is:-
three rows of 10 indicators, N4815D; spacing strip; clearing indicators, N4815D; speaking, ringing and alarm keys; spacing strip; three rows of 10 jacks with numbered labels; and a spacing strip.

Code No.   No. of Lines   Cord Circuits   Dimensions inches   Weight lb.
N660A1   10   3   20 x 14.5 x 11.5   41
N660A2   20   5   20 x 14.5 x 11.5   49
N660A3   30   6   20 x 14.5 x 11.5   54


Taken from the Ericsson catalogue, edition 49

Additional Information

Code No.   No. of Lines   Cord Circuits   Notes Diagram
N660A1   10   3
N660A2   20   5
N660A3   30   6
N660A1T 10 3   N57223
N660A2T 20 5   N57223
N660A3T 30 6   N57223
N660B3T 30 6 4' 6" cords N57223
N660C1T 10 3   N64059
N660C2T 20 5   N64059
N660C3T 30 6   N64059
N660C4T 10 3   N64059
N660C5T 20 5   N64059
N660C6T 30 6   N64059
N660D3 30 6 4' 6" cords N84669
N660E1T 10 3 Warerite N84059
N660E2T 20 5 Warerite N85049
N660E3T 30 6 Warerite N85049
