BT FREESTYLE 500

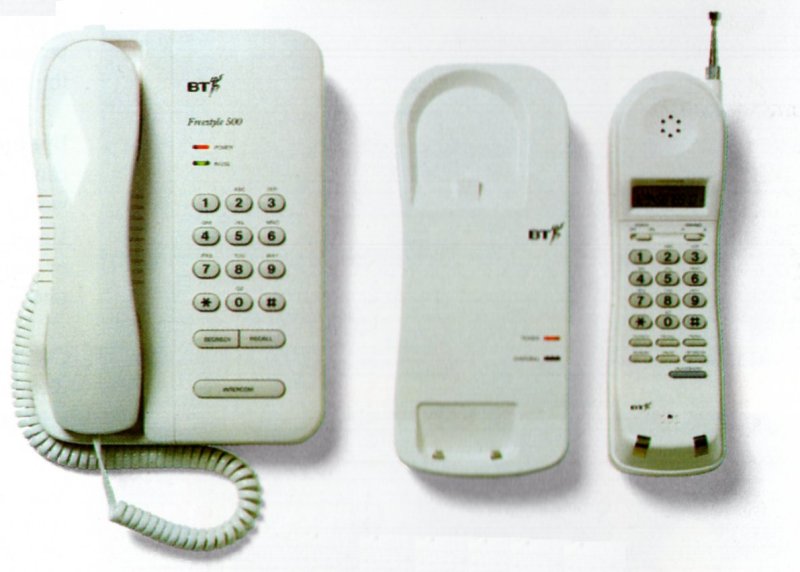

Freestyle 500 is a cordless telephone handset and mains powered remote charger unit together with a Relate style telephone as the base unit. Freestyle 500 conforms to CTI requirements.

Telephone facilities with explanations where necessary:
Digital security coding (Handshake): See "Additional Information" for explanation.
Approved as prime instrument on a DEL.
PABX compatible (Earth or Timed Break recall)

Companding noise reduction chip which reduces background noise and gives higher quality reception.

- Single wire base unit antenna
- Dual signalling
- 10 digit LCD display on cordless handset.
- The cordless handset can store 10 numbers of up to 21 digits in length. (N.B. storable characters include all the digits 1-0, *, #, pause and recall, each character counts as one digit in the memory store).

Full Intercom between cordless handset and base unit.
Intercom - from cordless to corded. Press intercom, display shows int. The IN USE LED of the base unit flashes quickly and the base unit beeps. The base unit answers by picking up the handset. If the base unit does not answer the attempt aborts after 15 seconds.

Intercom - from corded to cordless. Pick up handset and press intercom on base unit. IN USE LED flashes quickly and the cordless display shows int. Cordless answers by pressing intercom. The attempt will abort if not answered within 15 seconds.

Transfer of calls between base unit and cordless handset.
To transfer a call from the cordless handset to base unit or vice versa, press intercom, call is put on hold and other unit beeps. The base unit IN USE LED flashes quickly. If the transfer is to the cordless handset the display will show Int. When the other unit answers the call can be announced. The call is switched when the base unit presses intercom (for cordless to corded) or the base unit handset is replaced (for corded to cordless).

If the called unit does not answer, the attempt to transfer is aborted after 15 seconds. An audible alert sounds at the base unit and the cordless handset display flashes CALL to remind user that a call is on hold.

- Desk/wall mountable

- Last number redial

- Secrecy (microphone mute button)

- Battery low warning (handset battery)

- Auto Standby (automatically releases the line when the cordless handset is put back on to the remote charger unit)

Up to 100 Metres radius range between the cordless handset and the base unit

Range test, enables user to check if cordless handset is within range of the base unit.

Key 0 on the cordless handset, the display will show TEST for a few seconds followed by the result IN RANGE or OUT OF RANGE.

Made by Maxon Ltd (Thailand)

DISTRIBUTOR
On sale terms in BT shops and LTK Trade Sales outlets. Rental terms available from BT only.

APPROVAL STATUS
Freestyle 500 is approved as supplied under approval numbers S/1000/3/P/502749 for use on Direct Exchange Lines and PBXs in categories 1,3,5,7,9 & 11.

Modifications which have not received appropriate approval must not be carried out as to do so would invalidate approval making connection unlawful.

DOCUMENTATION
Freestyle 500 user guide. Supplied with the instrument.
Cordless Telephone Product Handbook PDM/TPO/A010

PLANNING
REN, Freestyle 500 has a REN of 1.

Freestyle 500 is designed for residential or normal office use, they should be installed away from sources of direct heat, excessive humidity, dust and vibration.

Approximate overall dimensions are:

Remote charger unit with cordless handset on rest: 150mm x 230mm x 90mm
Telephone base unit with corded handset on rest: 160mm x 220mm x 85mm
Weight of packaged instrument 1.8Kg.

A phone socket and 240 Volt, 13 Amp mains socket are required within 3 Metres of the base unit, mains power consumption is approximately 5 Watts.
A mains socket is also required within 3 metres of the remote charger unit.

For maximum radio range the base unit wire antenna should be fully extended. The base unit should also be mounted away from any sources of Radio Frequency Interference or structures which may affect radio signals. In domestic premises locating the base unit in an upstairs room will give better range than at ground level. The telescopic antenna of the cordless handset should be fully extended during use for optimum range.

Under trial conditions no problems were encountered with Freestyle 500 when connected to any small, medium or large PABXS. If problems occur in the field, a 1.7 Mhz Medium Wave RF filter (e.g. Plug in RF filter Item Code 877596) may need to be connected between the cordless telephone and the PBX/KTS.

NOTE: Fitting of these filters does not guarantee compatible working. Should problems persist, the customer should be informed that it is inadvisable to use this product with the associated PBX.

Cordless telephones can be affected by interference. e.g. from fluorescent lights or electrical appliances and range can be reduced by the screening effects of building structures, e.g. steel framework, foil backed wallboards.

There are 8 pairs of frequencies allocated for CT 1 cordless telephony use, interference or overhearing may occur where other cordless telephones on the same or adjacent channels are located nearby. In such cases Freestyle 500 should be selected to have the greatest (at least two) channel difference from any other nearby CT1 cordless telephones.

INSTALLATION/COMMISSIONING
Freestyle 500 is intended for retail sale and customer installation only.
Installation instructions are included in the product user guide and involve siting the base unit within reach of a phone socket and mains socket where it will give maximum range.

Setting the channel switch (A or B. Base unit and cordless handset to similar setting).

Setting mode switch on base unit (E for Earth recall PBXs or TB for Timed Break recall PBXs or for Network Services on DELs).

Although the cordless handset batteries may have enough power to make a simple functional test, the cordless handset batteries should be charged for 24 hours before full use.

MAINTENANCE
Maintenance on rental Freestyle 500s only, is limited to functional testing (following the Help section in the User guide, supplied with the instrument). Checking the mains transformer and charging unit are functioning and that the facility switches are set correctly. If any part of the Freestyle 500, excluding aerial, transformer or cordless handset battery, is found to be faulty, the unit should be changed. Handset batteries of rented Freestyle 500s are the responsibility of BT but customers with faulty cordless handset batteries should be encouraged to take the handset to a BT shop where the batteries will be replaced free of charge.

ROUTINE MAINTENANCE
None.

WARRANTY
New Freestyle 500 carry an 18 Month manufacturer's warranty to BT from the date of manufacture as shown on the base of the instrument (year and week marking forming the first four digits of the serial number). Customers will be given a 12 Month (return to point of sale) warranty from date of purchase irrespective of the date of manufacture. Warranty includes cordless handset batteries but excludes base unit batteries.

Units which fail within warranty should be returned with cordless handset switched to 'off'.


PARTS
Description			Item Code
Freestyle 500            	870522
Aerial				870524 (handset telescopic aerial)
Batteries			870461 (rechargeable batteries for handset)
Freestyle 500 AC adapter	870526
Plug in RFI Filter		877596
BT 80A RF2			870157

To conform with EEC legislation on Nickel-Cadmium battery disposal, Freestyle 500 handset batteries must be returned to telephone shops or Zone stores for central disposal. They must not be disposed of locally.

REPAIR ARRANGEMENTS
Faulty Freestyle 500 out of warranty and not covered by BT Maintenance agreement may be sent (by customer) for repair direct, or-via BT Phoneshop, to Repair Plus.

LINE TESTING
Idle - Normal capacitor loop. Freestyle 500 do not draw on-hook current.
Seized - Normal loop.

ADDITIONAL INFORMATION
Security codes
Freestyle 500 handsets and base units are matched together by their security code signal 'handshake'. The security coding prevents unauthorised access to the line by other cordless telephone users, the handshake is repeated at approximately ten second intervals during calls to ensure that only the matched handset controls the call. There are over 65,000 security codes, these are fixed on manufacture hence cordless handsets and base units should be regarded as 'matched pairs' and not separated, additional or replacement handsets are not available.

Use on PBXs and Key Telephone Systems (with 2-wire ports).
Freestyle 500 is approved for use as extensions to switching systems (PBXs approval in categories 1,3,5,7,9 & 11).
As with other CT1 cordless telephones, some of the 1.7MHz signal from the base unit may be picked up by the switching system causing system misoperation.
No problems have been found when used on Medium & Large PBXS.

Incoming ringing signal.
To comply with user safety requirements for prevention of acoustic shock, the cordless handset tone caller output is regulated and builds up in volume over 4 bursts of ringing. Freestyle 500 has been designed to cadence-follow when ringing.

Radio power output.
To comply with CT1 requirements, the effective radiated power (ERP) transmitted by the cordless handset or base unit must not exceed 10 milliwatts, the Base unit transmits 1.7Mhz signals from the wire aerial to the ferrite aerial inside the cordless handset and the handset transmits 47Mhz signals from the telescopic aerial to the base unit wire aerial.

Overhearing.
Calls on any CT1 telephones are not secure from overhearing and may be picked up by other cordless telephones operating on the same frequencies or by Medium Wave radio receivers, Freestyle 500 will cleardown cordless handset calls if the 'handshake' is affected by an interfering call.

Intercom regulations.
Intercom call duration is limited by regulations. A warning bleep will be heard 30 Seconds before an Intercom call is automatically cut off at 2 Mins and 50 Secs. If an intercom call is timed out, further intercom calls may not be made until 60 seconds has elapsed. Intercom calls not following timed out calls may be made immediately.

Cordless handset battery charging.
Freestyle 500 requires 24 hours for a full charge, fully charged batteries should, in practice, give 12 hours use in talk mode 30 Hours in standby Mode. If the batteries need recharging, the cordless handset will emit a warning tone and BATT will be displayed on the LCD. This occurs in either talk or standby mode. Users are recommended to leave the handset on charge over night in normal use. Battery capacity can be expected to reduce after 2 years use when customers can have new batteries fitted in the handset at BT Phoneshops for a charge. If customers wish they can fit the batteries themselves. Rental customers will have the handset battery replaced free of charge.
