K8350

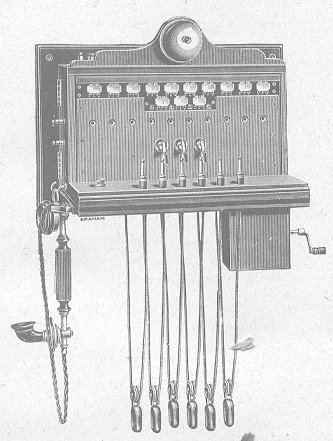

SWITCHBOARD FOR MAGNETO OR BATTERY RINGING
Wall Pattern, with Operatorís Outfit
For Single or Double Lines


Consisting of Annunciator Drops with Corresponding Line Jacks, Through Plugs and Cords, Combined Ringing and Listening Keys, Clearing indicators, operatorís Hand Microtelephone, Three-magnet Generator, 3 inch Circular Call Bell and the necessary Terminals.

Woodwork of solid well-seasoned Polished Walnut, and Nickel-plated metal fittings.

No. of Lines

No. of Cord Ccts

10 3
15 3
20 5
25 5
30 5


When ordering, please state if for Single or Double Lines, and Battery or Magneto Call.

Taken from the GEC Telephone Catalogue, K Section, 10th Edition, 1908


1916 model 1926 model 1932 model

K8350

TELEPHONE SWITCHBOARDS (PMBX)
WALL TYPE, CB with MAGNETO RINGING


Wall pattern switchboard (shown right) equipped with line drops K8400, clearing drops K8401, line jacks K8405, double line cords K8474, double line plugs K8423, combined ringing and listening keys K8429, ring back key K8433, hand combination and 3 inch circular bell with switch.

Cat No. No. of Lines No. of Cord Ccts Weight (lbs) Dimensions (ins)
K8350 10 3 26.5 15.5 x 10.5 x 9
K8350 15 3 28.5 15.5 x 10.5 x 9
K8350 20 4 32 15.5 x 10.5 x 9
K8350 25 5 39.5 15.5 x 17.5 x 9
K8350 30 5 41.5 15.5 x 17.5 x 9

K8350 - 10 line version not available in 1916 or 1926.

Taken from the 1916 and 1926 catalogues and the GEC Catalogue Everything Electrical - 1935 edition
