K8360

STANDARD PATTERN SWITCHBOARD
SUITABLE FOR PUBLIC OR PRIVATE EXCHANGES
MAGNETO OR LOCAL BATTERY SYSTEMS

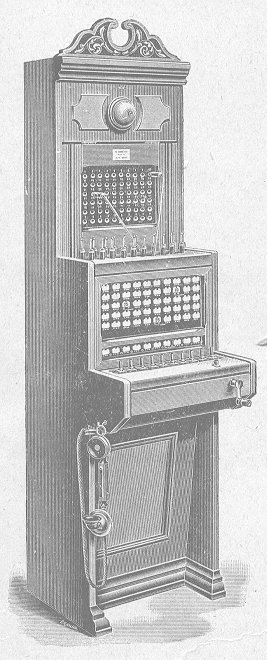

Standard Floor Pattern Switchboard

Equipped with Line Indicators, Corresponding Line Jacks. Plugs and Cords, Clearing Indicators, Combined Ringing and Listening Keys, Ring Back Key, Magneto Generator, operatorís Microtelephone, Night Bell and the necessary Terminals. Woodwork of solid well-seasoned Polished Walnut.

Produced for Metallic Circuits and Single Lines - Battery or Magneto Call.

Made for 25, 50, 75 or 100 lines.

These Switchboards can be fitted with Party Line Keys and Cord Circuits, also Differentially Wound Automatic Clearing Indicators, at an extra charge.


Taken from the GEC Telephone Catalogue, K Section, 10th Edition, 1908


K8360

TELEPHONE SWITCHBOARDS (PMBX)
FLOOR TYPE, CB with MAGNETO RINGING


Floor pattern switchboard equipped with similar apparatus as K8350, but with K8431 combined ringing and listening keys in place of K8429, double line cord K8476 and K7700 operatorís instrument.

These switchboards, when supplied for magneto ringing, are fitted with a K8701 generator.

1926 model 1932 model



Cat No. No. of Lines No. of Cord Ccts Weight (lbs) Dimensions (ins)
K8360 30 5 116 49 x 18 x 25
K8360 40 6 121 49 x 18 x 25
K8360 50 7 125 49 x 18 x 25
K8360 60 7 150 58 x 18 x 25
K8360 70 8 154 58 x 18 x 25
K8360 80 9 159 58 x 18 x 25
K8360 100 10 166 58 x 18 x 25

Taken from the 1916 and the 1926 catalogues and also in the GEC Catalogue Everything Electrical - 1935 edition
