K8364

TELEPHONE SWITCHBOARDS (PMBX)
CENTRAL BATTERY, VISUAL AND LAMP SIGNAL TYPES

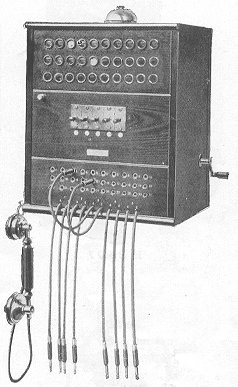

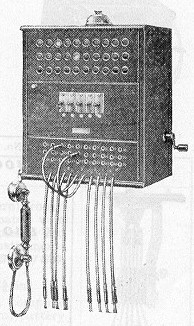

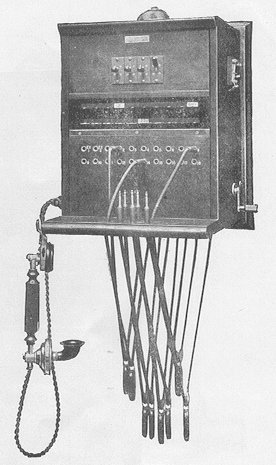

1926 model 1916 model 1932 model

Suitable for Hotels, Flats and Public Buildings.

Cabinet work of well-seasoned walnut.

Wall pattern central battery switchboard, comprising self-restoring visual signal line indicator (K 8404) which acts for both calling and clearing signals, line jacks (K 8405), double line plugs (K 8408), combined ringing and listening relays, double line cords (K 8457), 4 bar generator (K 8701), 3-inch circular bell and switch, hand combination, etc.

Voltage of battery 18 to 24 volts.

No. of lines No. of cord ccts Weight (lbs) Dimensions (ins)
10 3 41 21 x 14.5 x x12
15 3 43 21 x 14.5 x x12
20 4 45 21 x 14.5 x x12
25 5 48 21 x 14.5 x x12
30 5 50 21 x 14.5 x x12


Taken from the 1916, 1926 and 1932 catalogues and also in the GEC Catalogue Everything Electrical - 1935 edition
