STERLING TELEPHONE AND ELECTRIC Co. Ltd

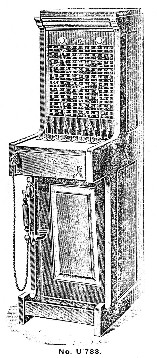

CENTRAL BATTERY PEDESTAL SWITCHBOARD
(LAMP SIGNALLING TYPE)

No. U 783

Standard Pattern Pedestal Switchboard, for Central Battery Lamp Signalling System, comprising: Line Lamps mounted on Standard Strips and complete with Opal Lamps, Line jacks mounted on Standard Ebonite Strips, Operatorís Ringing and Listening Keys, Through connection Plugs, Cords and Pulley Weights, Double Supervisory Clearing Lamps, Pilot Line Lamp and Relay, Ringing-Out Lamp Indicator and Relay, Night Bell and Switch, Operatorís Hand Combination and 4 Magnet generator.

Tile whole mounted in Polished Walnut Cabinet.

SPECIAL NOTES: When a through connection is made the battery current passes direct to the line entirely independent of any subsidiary contacts. The Line Terminals are mounted on Oak Strips at one end, thus facilitating the examination of tile internal connections. The front shelf, carrying the keys, etc, is hinged to facilitate inspection. All other internal parts are readily accessible from the back.

Available with 30, 40, 50, 60, 80, 100, 120, 140 or 160 Double Lines.



Taken from the Sterling Catalogue No. 11 & 12
