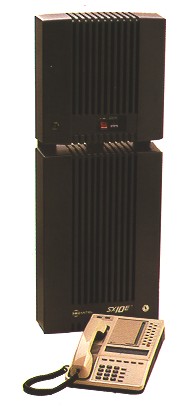

The Mitel SX10 (shown below with console) and SX10E (shown right with superset 4) is a LD/MF analogue switch with a maximum configuration of 8+24 (SX10) and 8+32 or 8+24 (SX10E). The SX10 was introduced around 1982, used a Remote Display Unit instead of a console (introduced late 1983)  and had a metal cover surrounding the PSU and card mounting. The SX10E superseded the SX10 in 1985, and was fitted with a plastic, ribbed cover and used software variant 143, which supported supersets (up to 24), call logging and 60 memory abbreviated dialling.  Both variants have 8 speech paths and system architecture is Stored Programme Control (SPC).

Made by Mitel, the equipment was sold by a number of companies under different names. The SX10 and SX10E were wall mounted and used the SX20 console or a small LCD display for indication purposes.

The main cabinet contains:

A Mastercard II which carries SLICs for 8 extensions, tone generators and receivers and the Firmware Module.

It may also include 1 or 2 Trunk Modules (2 trunks each) and a Communicator Module which allows SS4 Feature phones to be connected to this card.

A System Expander Card which carries SLICs for either 8, 16 or 24 further extensions, tone receivers and optionally, 2 more Trunk Modules can also be installed in the system.

Trunk Module's may be standard loop disconnect modules (switchable for Loop or Earth calling) or SSAC15a modules or SSDC5 (E & M) modules.

The system may also include a Remote Call Status Display. The SX10E can handle a maximum of eight simultaneous calls.

The maximum capacity of the system is:-

8 Trunks and 32 Extensions of which up to 8 may be SS4 Feature phones (143 variant only).

The British Telecom version of the SX10/SX10E had a wall mounted PSU and MDF. The equipment cards were housed in a black console (similar design to a Monarch console). This system was called the Viceroy/Super 10 and had a restricted capacity of 8+16.

The PSU and card frame are separate, but are both mounted on the same wall plate. An integral battery may be fitted within the PSU and this will maintain the system power for up to 45 minutes. The card frame accepts two cards and each card will support 4 trunks (2 x 2 cct) each.

240V 50Hz mains voltage is converted in the power supply unit to the voltages required by the system. In the event of a mains failure the SX10E has a 90 minute back-up battery. System configuration is maintained, in the event of a complete power failure by the use of battery supported RAM. The PSU is rated at 60 watts and weighs 20 lbs.

After a mains failure and exhaustion of the battery back-up power the first two extension equipment numbers are connected to the public network.

A 27V dc feed is supplied to extension telephone instruments.

CONFIGURATION
The system cabinet fixes to the wall and uses a separate console that can be positioned away from the cabinet. This console is also used by the Mitel SX20. The Master Card (CPU board) has 8 extension ports and provision for 2 trunk cards. Additional ports are added by installing a 8, 16 or 24 port extension cards. These cards have provision for 2 trunk or 2 private circuit cards. A Remote Display Unit must be fitted for programming purposes, if no console is provided. Featurephones can only be used on 143 variants with Mastercard 2.

REMOTE DISPLAY UNIT
The Remote Display Unit is supplied as a kit that comprises of two American style jacks and two connection cords.  A two pair cable is run between the two jack sockets.  On cord plugs into the Remote Display Unit and the other end plugs into the CCU motherboard.  The Display Unit is shown to the right and the table below advises on how to wire the unit.

Socket for Cord to CCU 2 Pair cable Socket for Cord to Display Unit
Yellow White/Blue Black
Black Blue/White Yellow
Red White/Orange Green
Green Orange/White Red

INSTALLATION
Before use, the SX10 system must be loaded with default data.  This operation clears out the RAM and loads default data, ensuring that the database is free from corruption.

Loading Default data

  1. Open cover
  2. Set both switches in front of Nicad batteries to ON
  3. Turn power on
  4. Set system status switch 1 to closed (behind slics)
  5. press RESET button (to right of PROM card)
  6. Console display shows 88888888
  7. Console display shows ????????
  8. Within 6 seconds set switch 1 to open
  9. Console display shows --------
  10. Set switch 1 to closed
  11. Console display shows 00-00
  12. Default Data has been loaded

DIP switch settings

ON Always On 2 digit
extn range
Port 1
normal extn
Data access
protected
4 3 2 1
OFF 3 digit
extn range
Port 1
test extn
Data access
unprotected

Programming Mode
To enter programming:

  1. Check that system DIP switch 1 is set to CLOSED
  2. Press the STATUS button until 142 or 143 appears and hold button down
  3. Dial 7772
  4. Release STATUS button
  5. Dial 58 or #

Printer Lead Wiring

RS232 socket Printer plug
2 ------- 2
3 ------- 3
7 ------- 7
6 wired to 20

Voltage Test Points

There is a strip of pins located near the DIP switches.  System voltages can be tested at this point with a high impedance multimeter.

Pin 1 is the top pin and pin 6 is the bottom pin.

Voltage to be
measured
Measurement
point
Reference
point
Voltage
range
+5v dc Pin 1 Pin 5 or 6 +4.8v to +5.2v
+5v dc Pin 2 Pin 5 or 6 +4.8v to +5.2v
-8v dc Pin 3 Pin 5 or 6 -7.6v to -8.2v
-28v dc Pin 4 Pin 5 or 6 27v to 29v
0v dc Pin 5 Reference
Ground Pin 6 Reference

PARTS
Description					Manu No			BT Part No
HANDSET AND CORD (HANDSET 16B BLACK)		9102-046-001-NA		374480
EXPANDER CARD 16 CCT				9100-021-021-NA
PROM GEN 142 - SX10				9100-026-142-NA
PROM GEN 143 - SX10E				9100-026-143-NA
BATT PACK (FITS IN PSU)				9100-003-000-NA		374488
EXPANDER CARD 24CCT				9100-021-031-NA
POWER SUPPLY UNIT - SX10
POWER SUPPLY UNIT - SX10E			9100-002-013-NA
cabinet SX10
CABINET SX10E (RIBBED PLASTIC COVER)		9100-023-000-NA
EXPANDER CARD 8 CCT				9100-021-005-NA
EXPANDER CARD 24 CCT				9100-021-031-NA
REMOTE DISPLAY UNIT				9100-022-010-NA
CABLE SET					9100-025-005-NA
MASTER CARD II - SX10E				9100-001-013-NA
REMOTE DISPLAY KIT (WIRING SET)			9102-041-000-NA
TRUNK MODULE EXCH LINE 2 CCT			9102-011-044-NA		374481
TRUNK MODULE E+M 2 CCT (DC5)			9102-011-011-NA		374491
TRUNK MODULE AC15 2 CCT				9102-011-021-NA		374492
CONSOLE fuw SX20 AND SX10			9102-018-005-BA		374600
Operators console cable
Superset 4					9174-000-012-BA
Featurephone TX14 (BT VERSION OF SUPERSET 4)	9174-000-039-BT
MPD Unit for 4 cards
MPD card (12 trunk)				8170-000-000-BA
RAM batteries					Description & source


142 ALARMS
01      Power up diagnostics test.
02      Power up or auto diagnostics test.
04      Automatic diagnostics test.
05      Automatic diagnostics test.
10      TK condition. (No loop curr. detected on TKxx)
11      TK condition. (No seize ACK. when TKxx seized).
12      TK condition. (No Release ACK. when TKxx Rlsd).
20      Sp/path stuck at 0 and busied out
21      Sp/path stuck at high and busied out.
22      Sp/path xx 5/cct. to Sp/path yy both busied
23      Sp/path xx failure due to DT detector test.
30  	Unable to connect Sp/path to Extension xx.
31      Unable to connect Sp/path to TK xx.
40      DT detector x failure and busied out.
4I  	MF4 gen. x failure and busied out.
42      MF4 rec. x failure and busied.
50      P/fail & reset caused by internal working.
60-69	Software alarms.
63      Defective battery ram.
64      Corrupted non-volatile ram.
80      Trunk held up busy.

TO LOAD DEFAULT FROM CONSOLE

1.  	Access programming mode.  Press and release status button
	until software variant shows, then hold button down

2.      Type in password, release status button and then type 58 or #
	(depends if lastno redial set, 143 or 243 only)

3.      ?601 shows on display (This is programming mode)

4.      Key #998*	Default data is loaded when display flashes


TO LOAD DEFAULT ON INITIAL POWER-UP

1.      Turn power on

2.  	Set system status switch 1 to closed

3.      Press reset button, Console display shows 8888888,
	then flashes ???????

4.      Within 6 seconds set SW1 to OPEN	Console shows -------

5.      Set SW1 to CLOSED	Console shows 00-00

6.      Default data is now loaded


EXTENSION DIAL-UP CODES (default)
68    	Paging access
67  	Hold
690  	Hold Retrieve-Local
691  	Hold Retrieve-Remote
66  	Group Pick-up
61  	Diversion of all calls
8       Night Service dial answer
62      Diversion on no reply
63  	Diversion on Busy
65 	Extension reset
9       Trunk access

SX10 142 OPERATORS DIAL-UP FUNCTIONS
11      Night service ON
12      Night service OFF
13      Identifying & resetting alarms
14      Set l2hr clock
15      Set 24hr clock
16      Lamp test (cabinet and remote display only)
19      +xx access TK by equipment number
21      +TK No. +Extension Night service
22      Temp TK barring +Extension. No
23      Barring Extension to Extension. ON
24      Barring Extension to Extension. OFF
27      +xx Access Sp/path by number
3I      Alarm clear
32      Cancel all alarms
4I      +xx Busy out trunk
42      +x Busy out MF4 Generator
43      +x Busy out MF4 Receiver
44      +x Busy out DT detector No x
45      +x Busy out Sp/path
51      +xx Free Trunk
52      +x Free MF4 Generator
53      +x Free MF4 Receiver
54      +x Free DT detector
55      +xx Free Sp/path

SX10E 143 OPERATORS DIAL UP CODES (142 plus those below)
17      Background music ON
18      Background music OFF
28      Display message waiting
29      Clear messages waiting
60      Review ABB dial
65      Set ABB dial
71      Set Auto-wake up
72      Display auto-wake up
73      Extension metering audit
75      * Printer suspend
75      0 Printer purge
75      # Printer resume
80      Set date
97      Data dump
98  	Data load

KNOWN PROBLEMS
1.  Flat RAM battery.  Causes strange problems - usually after a power cut.
    Corrupts system memory, causes near stoppage - but not quite!  Can be
    confusing and may look like a CPU failure.
    Check battery voltages and replace - it is recommended that batteries
    be changed every 4 years.  Ensure that database is fully documented.

2.  Console handset cuts off calls.  Old style consoles were prone to the
    handset sockets breaking - test by wriggling plug.  Also handset cord
    fails where it meets the handset.

3.  Console goes into night service automatically.  Usually caused by
    console handset cord failure.
4.  Console goes dead.  Switchboard cable is not fixed with a cable strap.
    There is a fixing point available and if this is not used then the cable
    Connector tends to disconnect at one end.

    PARTS LIST
