TELEPHONE, OBSERVER AD163

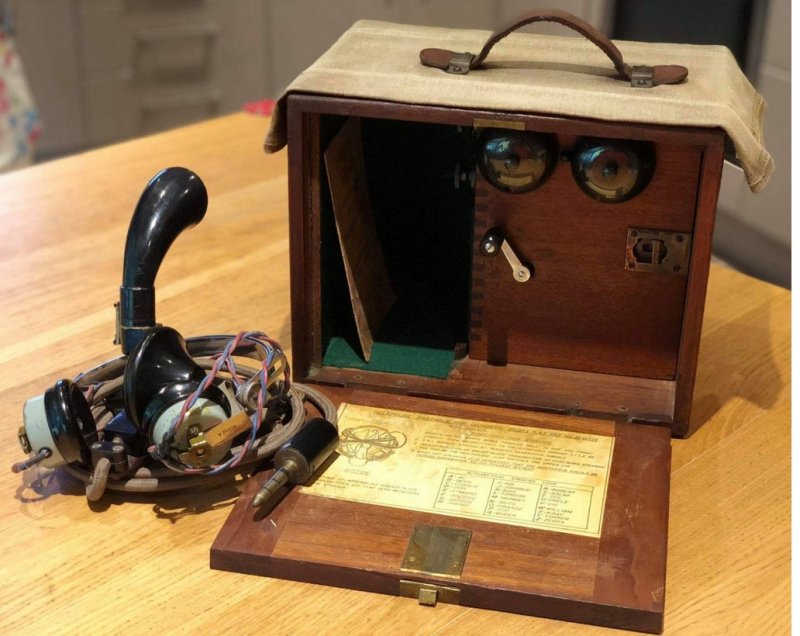

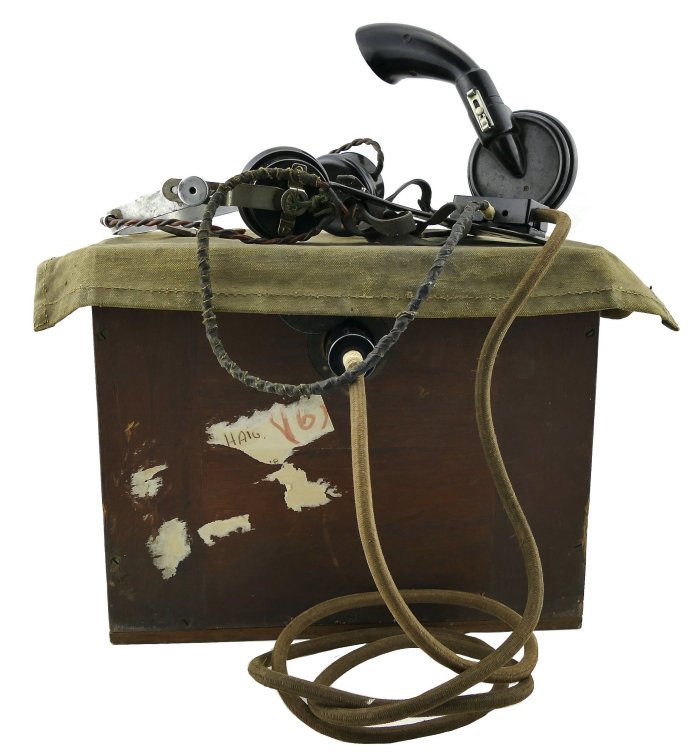

This is a Magneto, portable, telephone that has a generator and 1000ohm bells.  It comes complete with a transmitter and receiver head gear.

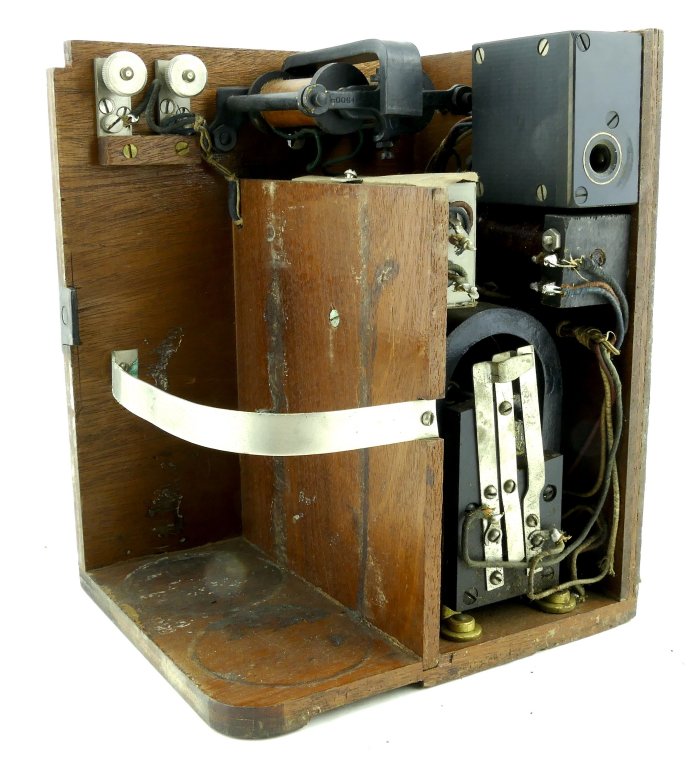

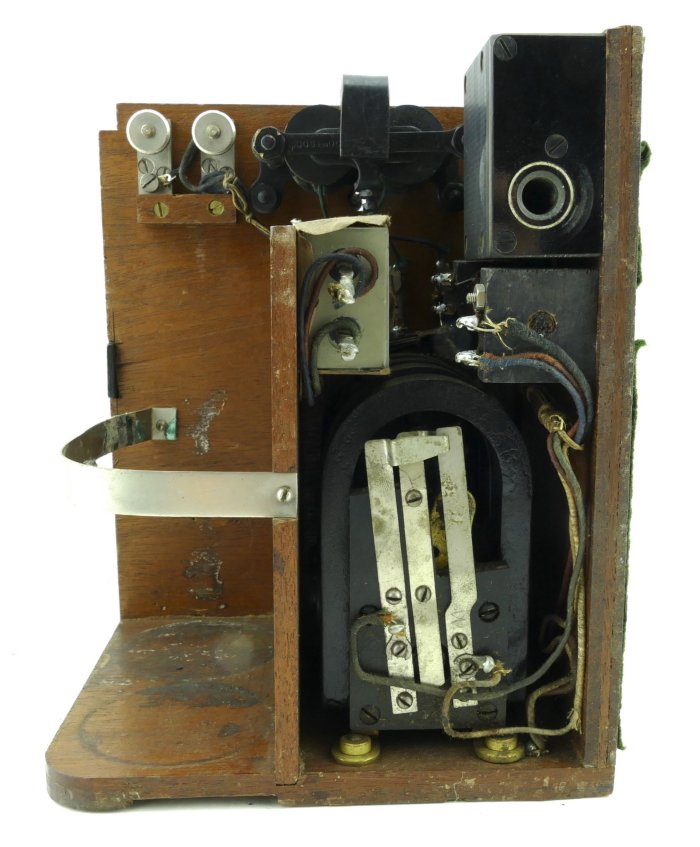

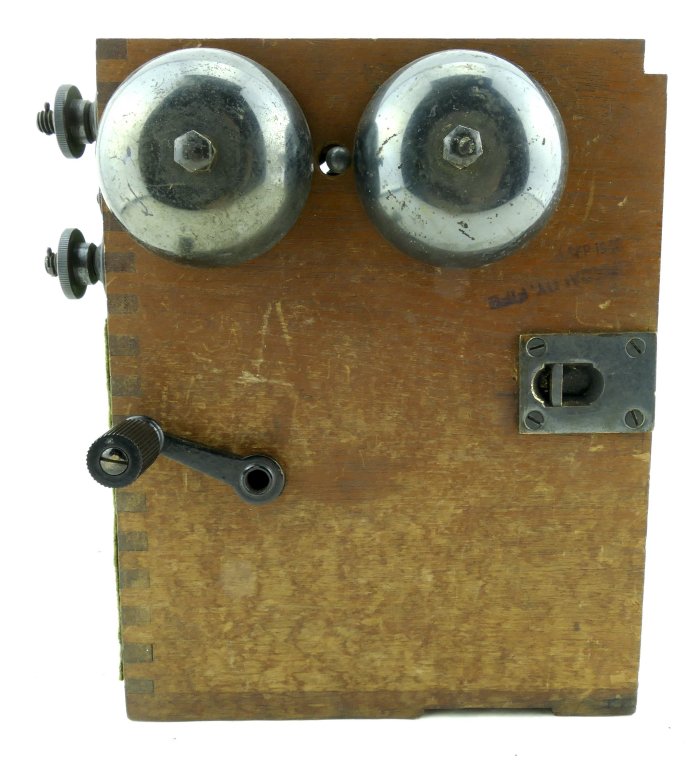

The components are fitted within a wooden unit which sides out of the case, after releasing the catch shown to the right of the generator handle.

Two batteries are also required and these are retained by the strap on the slide out unit.

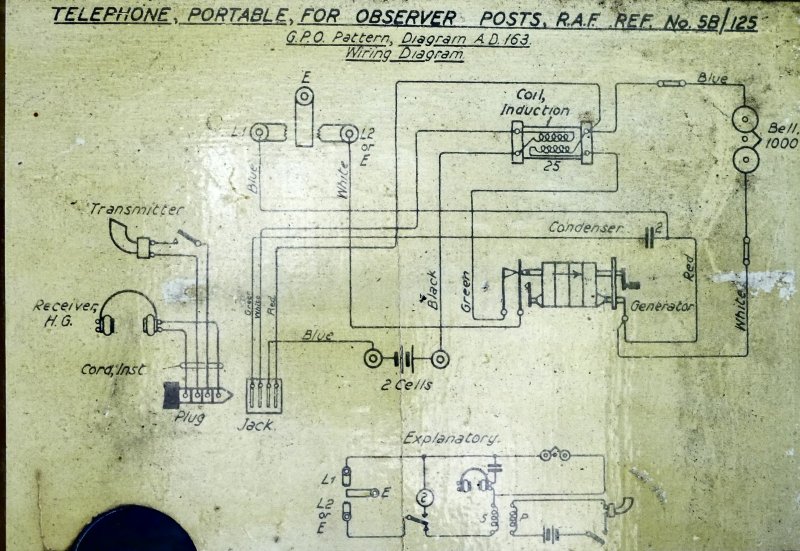

Diagram - AD 163.
