BELL No. 62 | |||||||

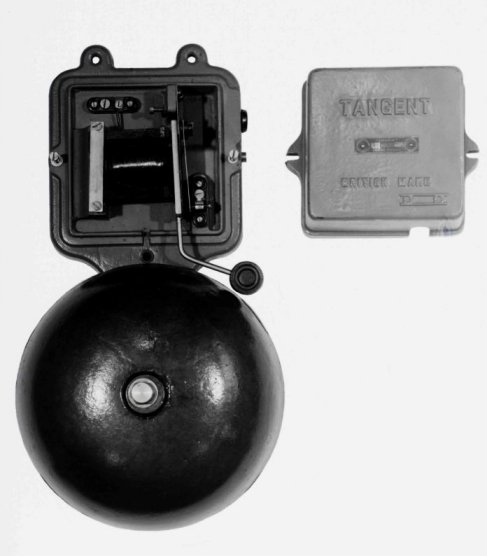

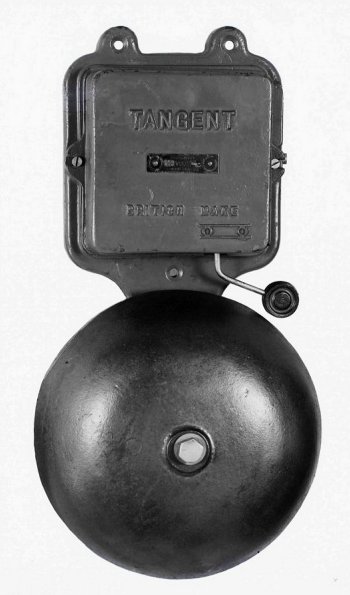

| An Iron cased bell used on bandit and fire alarm circuits
with a 10in diameter gong. Bell No. 62A - 220/250v A.C. 50c/s (5,000 turns of 36 SWG wire with a resistance of 270 to 330ohms). Bell No. 62B - 220/250v D.C. (10,500 turns of 42 SWG wire with a resistance of 2360ohms). Bell No. 62C - 6v D.C. (1,440 turns of 26 SWG wire with a resistance of 15ohms). The bell gong is "Parkerised" and lacquered. Made by Gents of Gloucester under their marketing name of Tangent. Drawing - CD717. Specification - D1778B (1957). Pictures taken 1939. The Bell No. 61 is similar but with a 6" bell.

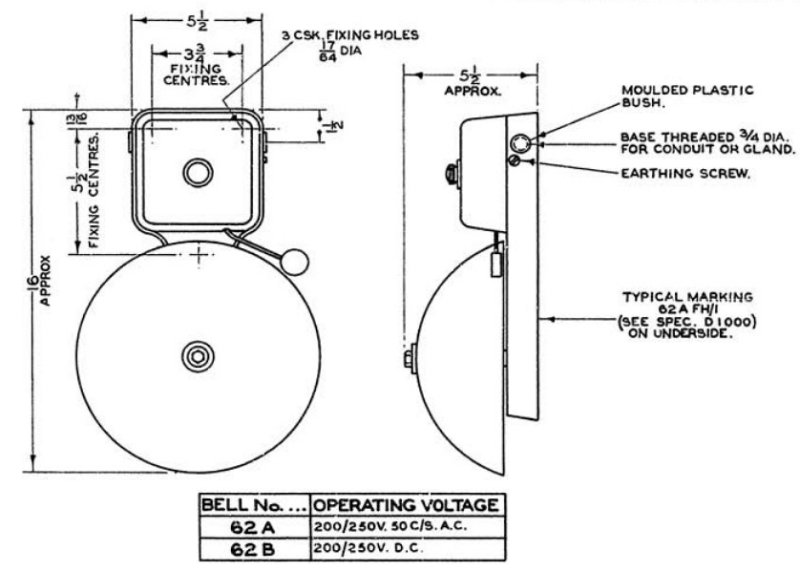

Drawing CD717
|
|||||||
