BRACKETS, TELEPHONE No. 26A | ||||||||
|
This is a wall mounting bracket for Telephones No. 9500-9999
(Viscount). They are colour matched to the telephone and come in Beige, Green, Ice-grey and Tan. The telephone is firstly located on the two lugs at the top and then the bottom swung inwards so it locates on the two clips at the bottom of the bracket. The telephone can then be secured to the bracket by means of the screw at the bottom of the bracket. The bracket has two prongs at the bottom for winding the line cord around. To remove the telephone from the bracket firstly slacken
the securing screw and then pinch the two clips and the bottom of the
telephone will be released.
Front of bracket

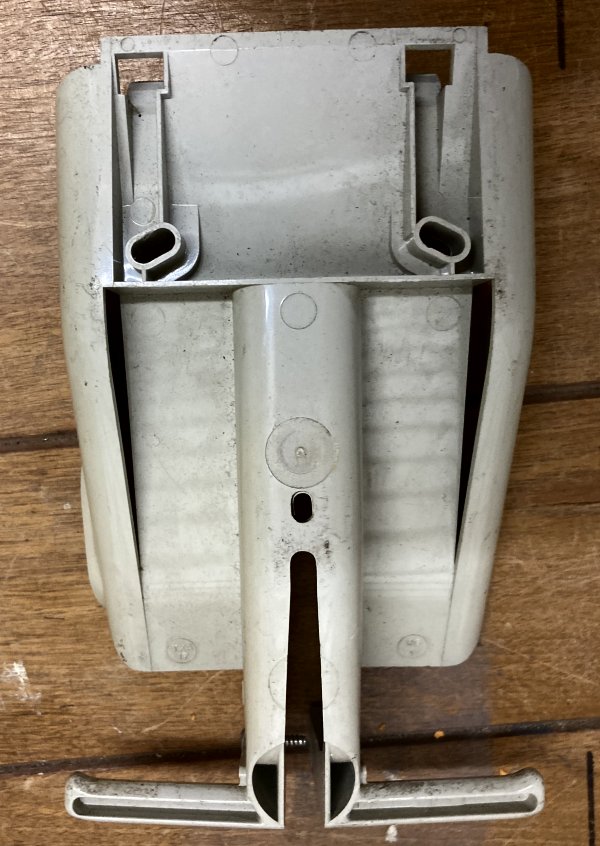

Rear of bracket
|
||||||||
