BLOCK TERMINALS

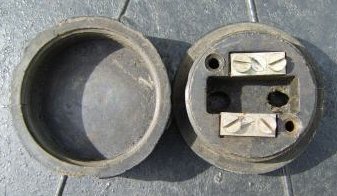

Small one pair round external type moulded Block.

Consists of two double screwed terminal plates in a circular insulated block of 2.5 inch diameter.

Diagram - EC 1329.

Four double screwed terminal plates on rectangular insulating base with slide on metal cover.  Has two recessed which may be filled with compound for sealing incoming and outgoing lead covered cables.

Diagram - EC 1389.

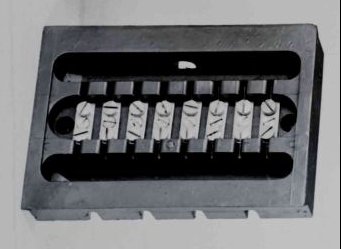

As the Block Terminal No. 2 but with 8 plates (4 pairs).

Diagram - EC 1389.


Used in place of Protector, Heat Coil and Fuse No. 201 on a H.C. & F. 0/10, 0/14 or 0/20 mounting frame.

Provides testing facilities only.

The Block Terminal No. 5 is to the left and a Protector, Heat Coil and Fuse No. 201 is on the right.

Drawings - EC1101, 90725 and 62058.

Click here for Protectors

Similar to Block Terminal No. 3 and used for terminating 10 pair cables (except paper covered)

Diagram - EC 1389.

Internal use only.

Superseded by Case Distribution 20 wire.

Moulded body made from Telenduron or Abonestos and fitted with a black, enamelled steel, slide on, cover.

Drawings - 8075, 8076 & 91130.

Introduced circa 1934.

10 pair oblong shaped Block for terminating Paper Covered cables.

Internal use only.

Superseded by Blocks, Terminal No. 17 for external use.

Uses Label No. 244.

Drawing - CN995.

15 pair oblong shaped block for terminating Paper Covered cables inside buildings only.

Uses Label No. 245.

Superseded by Blocks, Terminal No. 17 for external use.

Drawing - CN995.

16 pair oblong shaped block for terminating Paper Covered cables inside buildings only.

Superseded by Blocks, Terminal No. 17 for external use.


10 pair Block for terminating 40lb and 70lb Paper Covered cables.

Superseded by Blocks, Terminal No. 17 for external use.

Made from Telenduron or Abonestos.

Uses Label No. 246.

Similar design to Block, Terminal No. 13.

Introduced circa 1929.

Drawing - CN130 (Mark 236).

4 pair Block for terminating Paper Covered cables (Small rectangular moulded Block).

Made from Telenduron or Abonestos.

Uses Label No. 247.

Drawing - CN126.

14 pair Block for terminating 40lb and 70lb Paper Covered cables.

Superseded by Blocks, Terminal No. 17 for external use.

Made from Telenduron or Abonestos.

Uses Label No. 248.

Similar design to Block, Terminal No.13.

Introduced circa 1929.

Drawing - CN129 (Mark 235).

15 pair connection strip.  Oblong Bakelite enclosure with S.R.V.P. cover.

Use - unknown but looks like terminator between external and internal cables..

Introduced inn 1934.

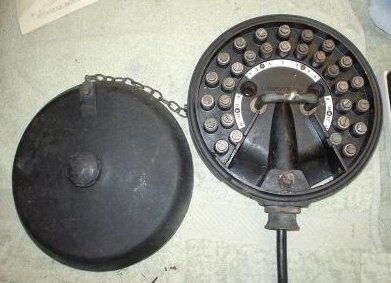

A circular block which contains 15 pairs of terminals and was used externally.

Generally found at the top of a pole feeding dropwires to houses.

The cover is released by means of a central screw.  This screw had a tendency to seize.

Superseded Block Terminals No's 8, 9, 12 & 14.

Introduced in 1948.

Drawing - CN131.

Click here for more pictures.

Click here for more information

Plastic circular Block Terminal for external use.

4 way terminal block used for terminating underground cable.

Normally found on 1960's and 1970's housing developments.

Made from Telenduron.

Introduced in 1954.

Superseded by Block terminal No. 66.

Drawing - CN132.

Click here for more information

Phenolic moulded terminal block that was supplied in 4 different variants.  Available with either 2, 4, 8 and 12 double screw terminal plates.

For internal use.

Colours:-
No. 20/2 - Black only - two connection plates.
No. 20/4 - Black, Green, Ivory, Red and Elephant Grey – Four connection plates.
No. 20/8 – Black, Green, Ivory, Red – Eight Connection plates.
No. 20/12 – Black, Green, Ivory, Red – Twelve connection plates.

Superseded Strips, Flexible Cord Connection.

Introduced 1937.

An Elephant Grey colour was introduced in 1959.

Drawings - 62829, 61228, 61267 and 62906.


From left to right - 20/8 - 20/4 - 20/2

Click here for pictures

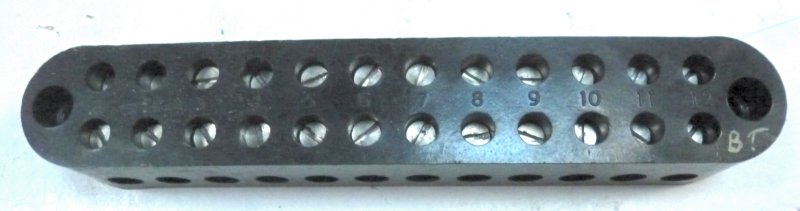

Moulded block with enclosed screw terminals (Bakelite ‘chocolate block’ connector used in Teleprinters etc).

The prefixed number designates how many terminals the block has.

No. 21/2, No. 21/3, No. 21/5, No.21/6, No. 21/8, No. 21/10, No. 21/12.

Introduced circa 1944.

Drawing - 71012.

Specification - S116.

This consists of a flat plate, fitted with a Strip, Designation No. 29 and six Terminal, Instrument, Insulated, Slotted Single No. 4's.

Used for the Test Circuit Termination on an R.D.F.

Consists of 6 terminal posts and a Strip, Designation No. 29.

Introduced circa 1944.

Drawing - 66117.


For terminating switchboard cords on switchboards.

3 and 6 way variants.

Introduced circa 1948.

Drawing - 66225.

For use on Table, Teleprinter No. 4, in Phase 2 Teleprinter Automatic Switching.

Drawings - 64286 and 64378.

For use Transmission Equipment.

Consists of three terminals in an upright, oblong box with a copper enclosure.

Drawing - 66425.

Block Terminal No. 27

10 pair screw/solder block with central earth connections.

The incoming cable uses the solder tags and the outgoing wiring the screw tags.

Supplied in grey only.

Includes a screw on lid.

5.5 in x 2.75 in x 1.1 in.

Drawing - 90614.

Superseded by the Block Terminal No. 27A.

Click here for more information

10 pair screw/solder block in grey only.

Includes a clip on lid, Cover No. 49.

The incoming cable uses the solder tags and the outgoing wiring the screw tags.

5.75 in x 3.25 in x 1.25 in

Internal use only.

Drawing - 91897.


Metal enclosure for housing three Adaptors, Coaxial No 5A.

Drawing - 66791.


6 terminal screw block used on early 700 type telephones.

For internal use.

Oval in shape, and constructed in three sections.  There is a metal base (which is fixed to a wall), a middle section that sits on top the base and a lid with a central screw that draws the three together.

The central section has 12 terminals on both sides.  The incoming cable is terminated underneath and the outgoing cable terminating on the top side.


3, 4 and 6 way for general purpose use.

Internal use only.

Drawing - CD1603.

30 terminals Block for use in Boxes, Conn No. 5 (Switchboard PMBX 2/…)

Internal use only.

12 way strip of terminals.

Made of flexible PVC and coloured grey.

General purpose use and rated at 250 VAC.

Drawings - CD1673 and CD2081.


12 terminals with straps (3 pair) screw block with clip on lid.

For internal use.

Black, Grey and Ivory.

Drawing - 91547.

12 two way terminals with 6 straps and clip on lid.

For internal use.

Drawing - 92226.

25 two way terminals with clip on lid.

For internal use.

Drawing - 92227.

No. 41
16 pair Block for terminating polythene cables on terminal poles and external distribution.

No. 41A
20 pair Block for terminating polythene cables on terminal poles and external distribution.

The termination fittings in these Terminal Blocks are called Blocks, Insert No. 1 (4 way) and No. 2 (6 way).

Drawings - CN183, CN280 and CN281.

Click here for more information

For use where lightening protection is required at junction of underground cable and overhead plant.

Drawing - CN182.

20 pair screw/solder block.

For internal use.

Includes a clip on lid, Cover No. 70A.

Introduced circa 1964.

Drawings - 91640 and 92752.


60 pair screw/solder block.  Tablet style.

Size 12" x 3".

For internal use.

Introduced in 1962.

Drawing - 91700.


60 pair screw/solder block.  Tablet style.

Size 7" x 4½".

For internal use.

A variant marked 1 -90.
B variant marked 91 - 180.

Introduced in 1963.

Drawing - 91813.


3 way block used for connecting external dropwire cable to internal wiring.  These were supplied in grey or ivory colours.

Clip on cover.

For internal use.

Drawing - 92133.

Click here for more information


The block fits inside a standard electrical back-box and is covered by means of a Cover No. 67.

Comes in two sizes, 12 and 24 way..

For internal use.

Drawing - 92183.

Terminal block for fixing in standard square conduit outlet boxes.

No. 51/12A – 12 terminals.
No. 51/24A – 24 terminals.
No. 51/1A – Terminal Strips for use in Boxes Connexion No. 1A, 2A and 3A and Cases No. 155A, 156A and 157A.

Drawing - 92472.

2 pair screw type terminal block used on 700 type telephones.

Normally supplied with two terminals linked.

For internal use only.

Black, Yellow, Red, Green, Blue, Grey and Ivory.

Drawing - 92467.

Additional pictures

12 way pressure pad, twin screw flexible type. Can be cut to smaller sizes.

First used on Motorway phones.

For internal & external connexions at subs premises. Included provision for mounting Protectors, Electrode No. 1B.

Used when lightning protection is required.

Available in grey and ivory.

Drawing - 71420.

Block for 36 amp, 500 volt conductors up to 4mm with cover.

No. 62A - 6 way
No. 62B - 4 way

Drawing - CD2683.

Experimental Block for 36 numbered terminals and 10 terminals marked "E".

Dated 1975 and use is unknown.


For terminating 2 pair & 5 pair cables. 2 pair and 3 pair screw type inserts, supplied separately and fitted as required.

Block, Insert No. 1A - 2 pair.
Block, Insert No. 2A - 3 pair.

For external use.

Superseded the Block Terminal No. 18.

Drawings - CN284, CN296 and CN297.

Click here for more information

This is a BT No. 67A/20 mounted on a base.

Field trial item available in ivory only.

Drawing - 93688.


Two BT No. 67A/20's mounted on a base.

Field trial item available in ivory only.

Drawing - 93689.


For terminating 20 pair Cables PET within hollow distribution poles.

Hangs within the pole.

Drawings - CN308 and CN309.

20 pair Block Terminal complete with 11 metre tail of 20 pair PE sheathed cable for use on poles and external distribution.

Block terminal (Rocker Blocks) , overhead cable distribution points 20 pair.

Block Terminal No. 76A 20 pair, with 12m tail

Block Terminal No. 76B 20 pair, with 25m tail

Block Terminal No. 76C 20 pair, no tail


3 pair IDC block.

For internal use.

3 pair screw block.

For internal use.

4 pair IDC block.

For internal use.

3 wire screw - IDC.

For internal use.

Connects external cable to internal cable.

Dimensions (L) 56mm x (W) 41mm x (H) 22mm.

As BT 80A but with radio frequency suppression to suppress LW/AM radio signals only..

3 wire IDC connector.

For internal use.

Item code 870157


Similar to the RF2 but is a REIN filter.

3 Way IDC connectors to 3 way screw, internal use only.  Suppresses RF interference on the line & suitable for ADSL & vDSL installations.

3 pair screw - IDC.

For internal use.

Terminal block for internal use only in damp environments.

Used with Connectors Wire Insulated No. 9.  These connectors can terminate three wires with a diameter in the range of 0.4 to 0.63mm.

The screw is fitting an earth wire, if required.


Block terminal (Rocker Blocks), overhead cable distribution points 10.

Block Terminal No. 86A 10 pair, with 12m tail

Block Terminal No. 86B 10 pair, with 25m tail

Block Terminal No. 86C 10 pair, no tail


6 pair IDC block.

For internal use.

3 wire IDC block

For internal use and found on Red Care circuits.
