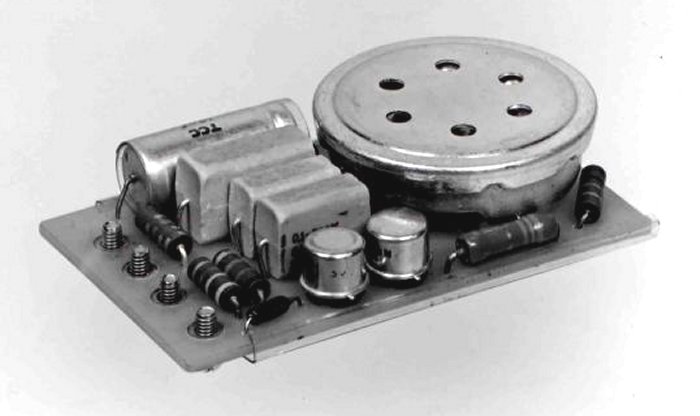

BUZZER No. 33A
This is an electronic buzzer used in Switchboards 2/-, 3/- and 4/-, which was also used for general purposes.

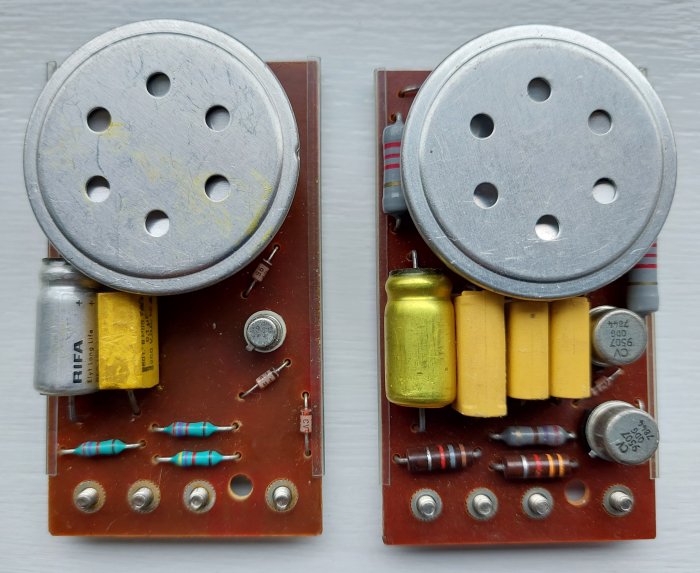

The circuit also changed over the years - see pictures below.

Mounted by means of a Clip No. 91C (Drawing - 92372) - see pictures below.

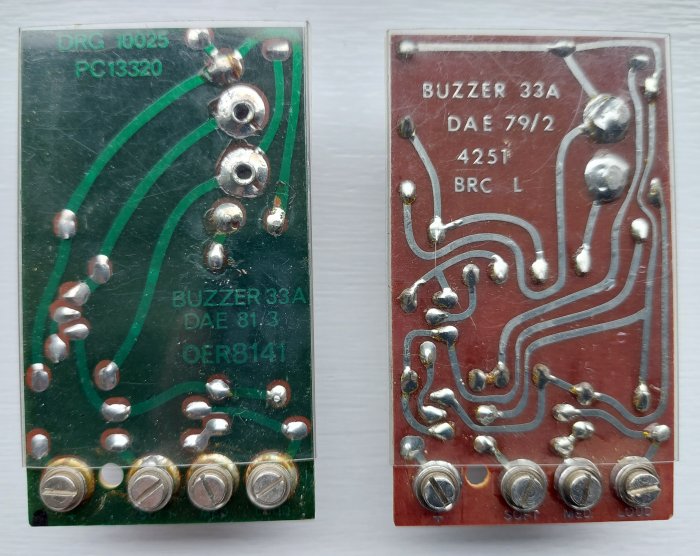

There is a Mark 1 and Mark 2.  The Mark 2 was introduced in 1973, but it is not obvious what the change was.  The printed circuit board layout changed on numerous occasions.

Adjustable for 24-50 volts DC.

Introduced 1965.

Drawing - 92305.

Diagram - N649.

Specification - S925.

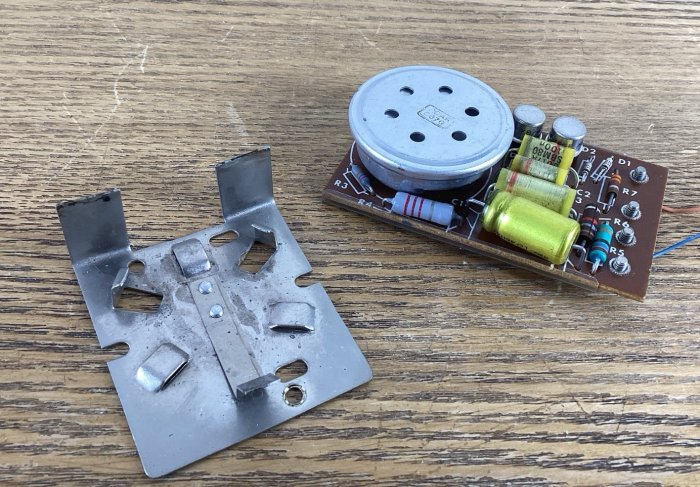

Clip No. 91C with a Buzzer No. 33

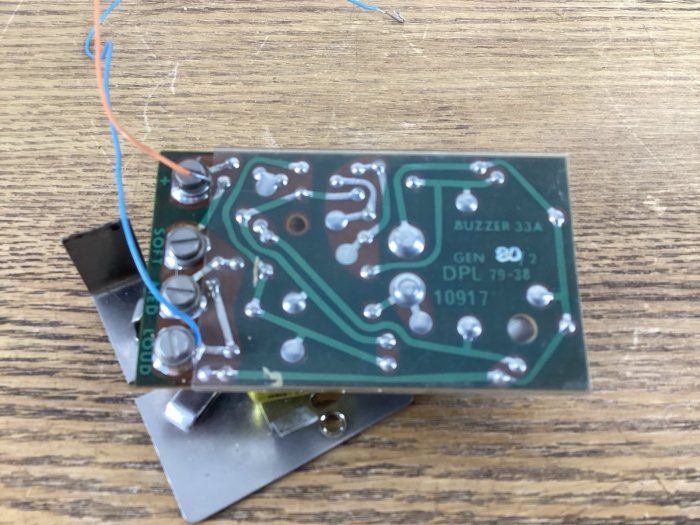

Clip No. 91C with a Buzzer No. 33 fitted in the clip
