BRITISH WESTERN ELECTRIC COMPANY
TELEPHONE No. 22351

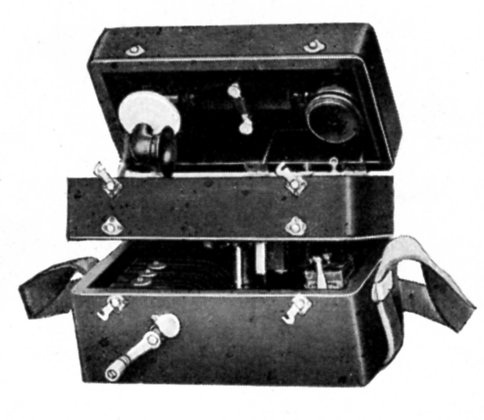

PORTABLE  TELEPHONE
MILITARY TYPE
MAGNETO

No. 22351
 This is a substantial and very efficient instrument for use in the field. The case being hinged in two places, all apparatus is readily accessible.

The framework is of polished teak with a strong leather shoulder strap. All fittings are of yellow lacquered brass.

Equipment:-
Four-magnet Generator which will ring effectively through the 1,000ohm Ringer and a non-inductive line resistance of 25,000ohms.
Polarised Ringer with coils of 1.000 ohms resistance.
Induction Coil.
Three Dry Cells.
Special Microtelephone.
Microtelephone Cord.

Dimensions - 11.5" x 6" x 8.25".

Weight - 15lb.


Taken from the Western Electric Co. Ltd. Catalogue 2nd Edition (Circa 1910)
