CASE No. 24

It is fixed to the side or on top of non-multiple switchboards.

See N1012 for further details.

A metal mounting plate could be fitted to the front opening to accommodate the items required:-

• Mounting D91549 - will accommodate 2 meters and 2 rotary switches, which will allow for two groups of ten lines to have access to a meter each.

• Mounting D91548 - will accommodate 5 meters in total.

Dimensions are 8.4" x 5.2" x 2.9".

Drawing - 63702.

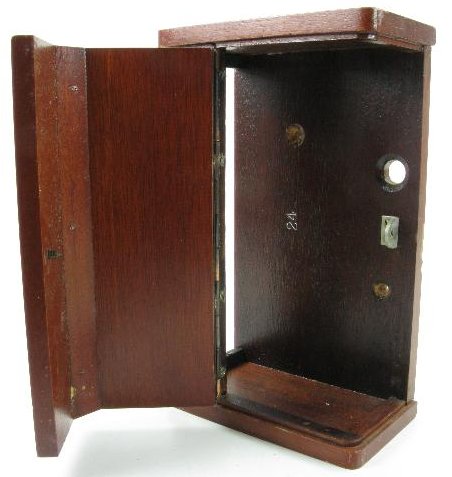

In the picture below the side access door is open.  The front of the unit cannot be seen, but it accepts a metal plate which accommodates the items required.
