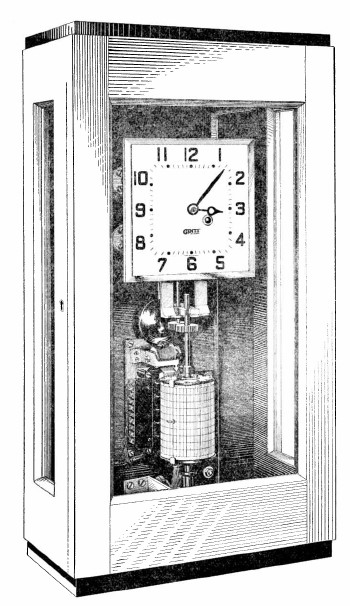

WATCHMAN SUPERVISORY SERVICE
GENT'S
ELECTROMECHANICAL SYSTEM
Provision
1. General
This Instruction details
the policy regarding the provision of a watchman supervisory service in
premises occupied by P.O. staff. The system is provided principally at large
P.O. buildings for checking the times at which the watchman visits certain
points in the course of his round. Wholly mechanical tell-tale clocks have
been superseded by the electromechanical system described in D 1250 and all
new installations and renewals of installations should be of this latter
type. Installation details are given in D 3231 and maintenance details in D
5231.

2.
Responsibility
The provision and
maintenance of the system is the responsibility of the R.D. (Eng. Bch.). 3.
The system may be provided on the
authority of the R.D.
4.
Supplies
Owing to the small
demand for these systems and the variety of sizes in use, system clocks
are not stocked. The sizes most frequently in demand have been coded and
details of these are given in Table 1 and in the Rate Book.
5.
In determining the size of the
clock to be installed, the ultimate requirements of the building should
be studied. It is uneconomical to change a clock once it has been
installed.
6.
Contact boxes for use with
supervisory systems have been coded as Box, Contact No. 1 and a stock
is held by the Supplies Dept. The box is suitable for flush or surface
fixing.
7.
For points in exposed positions it
is necessary to provide weatherproof boxes and these can be obtained on
local purchase from Gent & Co. Ltd., 47 Victoria Street, London, S.W.1,
under the title of `Contact Box, Weatherproof, Catalogue Fig. 4791'.
8.
Keys for use by the watchman for
operating the contact boxes have been coded as Keys, Lock, S and a stock
is held by the Supplies Dept. The number of keys required depends upon
the number of watchmen employed. Six keys are sufficient for most
installations. It is not necessary to provide a key for each box as the
keys are common to all boxes.
9. Record charts These charts, which
vary for each installation, have not been coded. A quantity of 500 for
single cylinder clocks and 1,000 for double cylinder clocks should be
obtained initially with the clock. Later supplies will be obtained
by the local Inspector of Door-Keepers.
10.
The duration of the record chart
will depend upon (a) the accuracy required and (b) the
availability of staff for changing the charts. The space available per
hour for 12, 24, 48 and 72 hour charts is approx. 3/4in., 3/8in., 3/16in, and
1/8in. respectively. Where accuracy is important a 12 or 24 hour chart is normally provided. Where accuracy is not important 24, 48 or 72 hour charts are used in
buildings staffed for 7, 6 and 5 days respectively.
11. Wiring
The system should normally
be wired in accordance with Diagram GMT 38. Where the provision of the
system involves a large amount of wiring, consideration should be given
to the use of suitably-located extensions if a P.B.X. exists and it is
convenient to fit the recording clock in the vicinity of the P.B.X. A
Box, Contact No. 1 should be wired across each selected extension in
accordance with Diagram GMT 38, via a Key No. 289B or C. With the key
normal the extensions are connected to the P.B.X. and, with the key
operated, the extensions are connected to the recording clock.
Arrangements should be made for the key to be operated when the P.B.X.
is closed and restored when it is reopened.
12. Power supply
A 24V primary
battery composed of Cells, Dry, DS5 should be used except where it is
more economical to provide a power lead from secondary cells required
for other purposes. In each case, a suitable resistor should be employed
to reduce the operating current to the value required (see D 1250).
13. Requisitions
Requisitions for the
clocks and charts should be forwarded to the Eng. Dept. (P6/1). Arrangements will then be made with the Supplies Dept. for purchase,
delivery dates being generally of the order of six months from receipt
of requirements. The advice should include the following information
- Type of clock (see Table 1 and
the Rate Book). (If there is no
suitable clock in Table 1, give brief details of the system, number of
stations required, voltage available and duration of record.)
-
Quantity of charts required,
stating whether 12, 24, 48, or
72 hour records are required and the time the record has to commence. Stations are shown numbered 1, 2, etc.

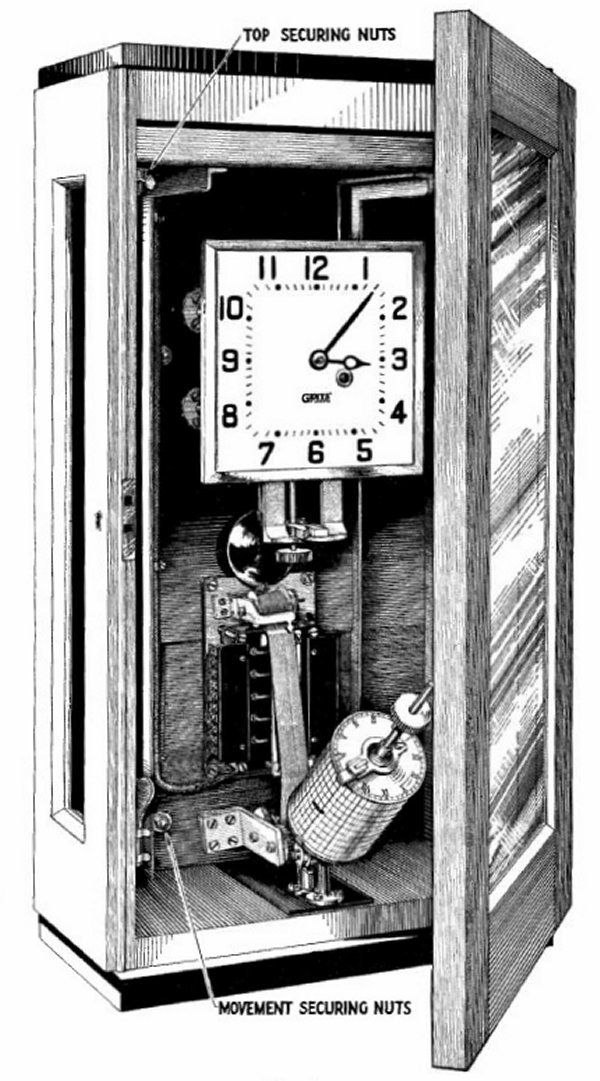

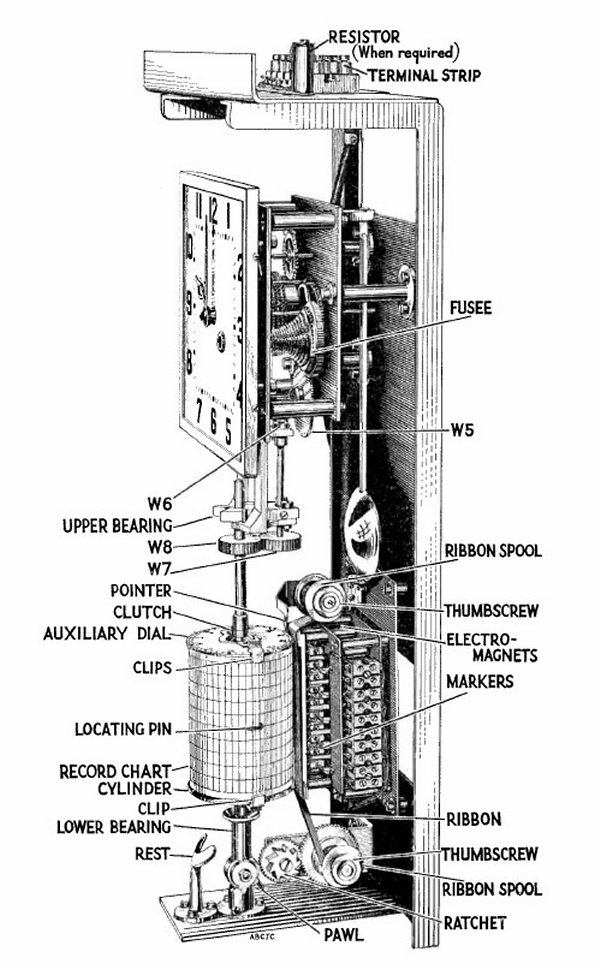

TABLE 1
Clocks Nos. 59 to 65 have single cylinders.
Clocks Nos. 67 to 71 have double cylinders.
P.O. Code |
Size (Stations) |
Record Duration (Hours) |
Clock No. 59A |
10 |
12 |
Clock No. 59B |
10 |
24 |
Clock No. 59C |
10 |
48 |
Clock No. 59D |
10 |
72 |
Clock No. 61A |
20 |
12 |
Clock No. 61B |
20 |
24 |
Clock No. 61C |
20 |
48 |
Clock No. 61D |
20 |
72 |
Clock No. 63A |
30 |
12 |
Clock No. 63B |
30 |
24 |
Clock No. 63C |
30 |
48 |
Clock No. 63D |
30 |
72 |
Clock No. 65A |
40 |
12 |
Clock No. 65B |
40 |
24 |
Clock No. 65C |
40 |
48 |
Clock No. 65D |
40 |
72 |
Clock No. 67A |
60 |
12 |
Clock No. 67B |
60 |
24 |
Clock No. 67C |
60 |
48 |
Clock No. 67D |
60 |
72 |
Clock No. 69A |
80 |
12 |
Clock No. 69B |
80 |
24 |
Clock No. 69C |
80 |
48 |
Clock No. 69D |
80 |
72 |
Clock No. 71A |
100 |
12 |
Clock No. 71B |
100 |
24 |
Clock No. 71C |
100 |
48 |
Clock No. 71D |
100 |
72 |
Additional Information
Description - D1250
Installation - D3231
Maintenance - D5231
|
