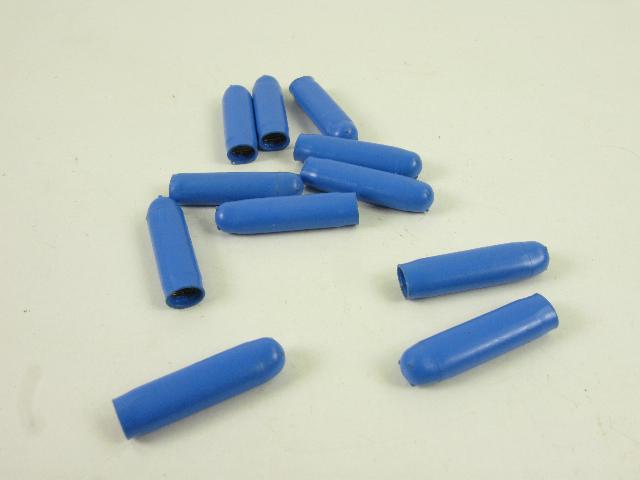

Connector, Wire Insulated No. 1 and 1A
For use with Pliers Crimping No. 2.
Only the Connector,
Wire Insulated No. 1A is grease filled.
See EI Lines,
Underground F3228
and F9216 |
|
Connector, Wire Insulated No. 2
Similar to the No. 1 but these are for 0.8mm, 10lb and 20lb
conductrs.
For use with Pliers Crimping No. 2, when jointing
in Cabinet Shells and Posts.
These crimps are not grease
filled.
See EI Lines, Underground
F3228 and
F9216
|
|
Connector, Wire
Insulated No. 6
Used for jointing paper and
polyethylene insulated copper conductors of 0.32mm, 04mm, 0.5mm and
0.63mm diameters.
|
|

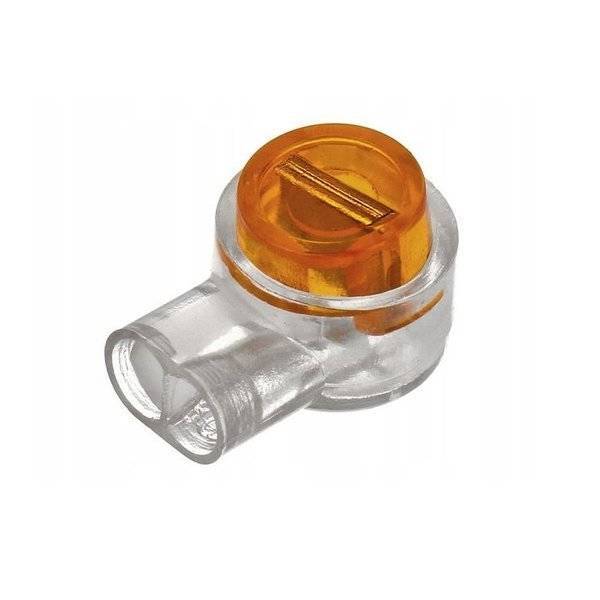

Connector, Wire
Insulated No. 8A
Two wire Insulation displacement
type connector suitable for jointing insulated copper conductors of
0.4, 0.5, 0.6, 0.63 and 0.9mm diameter and 0.5, 0.7mm diameter
aluminium conductors.
For use with Pliers, Crimping No. 8
|
|

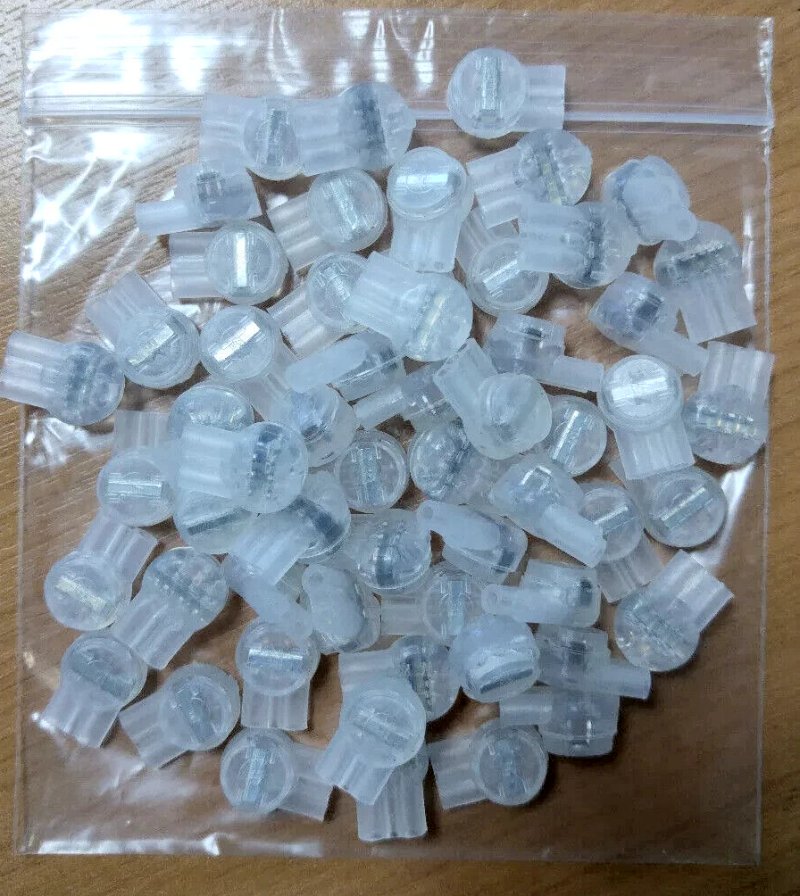

Connector, Wire
Insulated No. 8B
Three wire Insulation displacement
type connector suitable for jointing insulated copper conductors of
0.4, 0.5, 0.6, 0.63 and 0.9mm diameter and 0.5, 0.7mm diameter
aluminium conductors.
For use with Pliers, Crimping No. 8
|
 |
Connector, Wire
Insulated No. 8C
The No. 8C Connector has a side
entry port to enable the connector to be used for teeing.
It
shall have the facility of jointing any one conductor mentioned in
Paragraph 2.1 of this specification to any existing working
conductor without interrupting the continuity of that working
conductor.
For use with Pliers, Crimping No. 8
|
|
|
