CORDS, CONNECTING





Cord Connecting No. 6/10A

6 Way cord for use on Telephones No's 282A, 284, 284A & 290.

200mm cord with a jack to take a Plug No. 631A and at the other end are 6 Spade connectors.



Cord Connecting No. 6/10B

6 Way cord for use on Telephones No's 282A, 284, 284A & 290.

For use in TXE2 Exchanges - Plugs into connector 207D.

200mm cord with a jack to take a Plug No. 631A and at the other end a Plug No. 242A.


Cord Connecting No. 6/10C

6 Way cord for use on Telephones No's 282A, 284, 284A & 290.

For use with Strowger equipment.

200mm cord with a jack to take a Plug No. 631A and at the other end a Plug No. 230.



Cord Connecting No. 6/10D

6 Way cord for use on Telephones No's 282A, 284, 284A & 290.

For use with Krone connectors.

200mm cord with a jack to take a Plug No. 631A and at the other end Krone 4 pole plug.  Includes an earth clip.


Cord Connecting No. 6/10E

6 Way cord for use on Telephones No's 282A, 284, 284A & 290.

200mm cord with a jack to take a Plug No. 631A and at the other end 3 crocodile clips.  Includes an earth clip.


Cord Connecting No. 6/10F

6 Way cord for use on Telephones No's 282A, 284, 284A & 290.

For use in TXE4 Exchanges - plugs into a connector 207D.

200mm cord with a jack to take a Plug No. 631A and at the other end a moulded 2 pin plug for low profile strip connections.

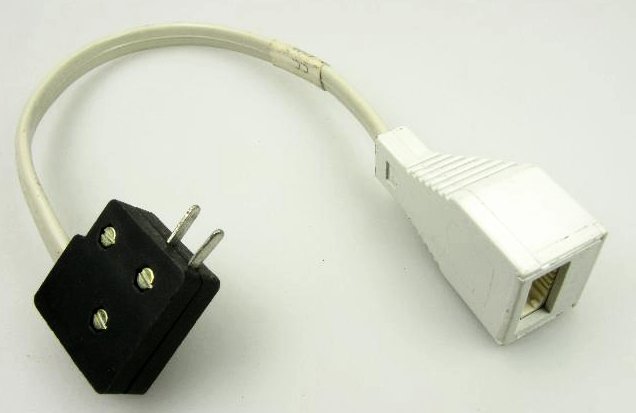

Cord Connecting No. 6/10G

6 Way cord for use on Telephones No's 282A, 284, 284A & 290.

For use in TXE2/TXE4/TXK Exchanges for U point work.

200mm cord with a jack to take a Plug No. 631A and at the other end a Molex connector.



Cord Connecting No. 6/10H

6 way cord for use on Telephones No's 282A, 284, 284A & 290.

For use with Jack test No. 44.  Wired for two wire working.

200mm cord with a jack to take a Plug No. 631A and at the other end a Plug No. 510.



Cord Connecting No. 6/10J

6 Way cord for use on Telephones No's 282A, 284, 284A & 290.

For use with Jack test No. 44.  Wired for four wire working.

200mm cord with a jack to take a Plug No. 631A and at the other end a Plug No. 510.  Also used with Adaptor Test No. 3A.



Cord Connecting No. 4/96AM

Black curly handset cord for use on CCB No. 735.



Cord Connecting No. 4/108AX 54in

Original Trimphone curly cord.
Fitted to a BT30 or BT52.



Cord Connecting No. 4/110AX 180in & 300in

Non-curly Trimphone Cord.
Came in two lengths - 180 inch (available in blue & green) and 300 inch (available in blue, green or grey).



Cord Connecting No. 4/131AX 3000mm

Curly ended cord used on Trimphones.

Grey, green or blue.

Superseded both Cords 4/108 & 4/110.



Cord Connecting No. 4/133

4 way replacement cord for Hosiden Besson Telephone No. 290.

Consists of a 1.5M Cord with Plug No. 430A on one end and a Plug FCC68 on the other.



Cord Connecting No. 4/500 150mm, 3000mm & 5000mm

4 way cord fitted with a Plug No. 431A at both ends.

Used on Ambassador telephones.

Light Grey only.



Cord Connecting No. 6/500 3000mm

6 way cord fitted with a Plug No. 631A at both ends.

Used on Ambassador telephones.

Light Grey only.



Cord Connecting No. 4/501 420mm

Extensible 4 way line cord fitted with a Plug No. 431A at both ends.

Used on wall mounted Ambassador telephones.

Light Grey only.

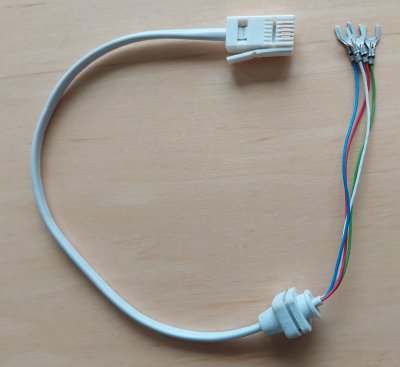

Cord Connecting No. 4/502 250mm, 3000mm, 5000mm & 8000mm

4 way cord fitted with a Plug No. 431A at end end and spade tags at the other end.

Used on 700 type telephones.

Light Grey only.



Cord Connecting No. 6/502 150mm & 3000mm

6 way cord fitted with a Plug No. 631A at end end and spade tags at the other end.

Used on 700 type telephones.

Light Grey only.



Cord Connecting No. 4/503 200mm

Extensible 4 way cord fitted with a Plug No. 431A at one end and spade tags at the other end.

Used with Handset No. 16 on Ambassador telephones.

Light Grey and brown.



Cord Connecting No. 4/504 3000mm

4 way cord fitted with a Plug No. 431A at one end and spade tags at the other end.

PST curly cord used with the Trimphone.

Light Grey only.

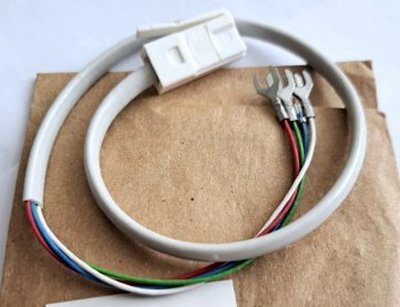

Cord Connecting No. 4/505 150mm

4 way cord fitted with a Plug No. 431A at end end and spade tags at the other end.

Used with Telephone No. 741.

Light Grey only.



Cord Connecting No. 4/513 3000mm & 5000mm

4 way line cord used on Statesman telephones.
Plug No. 431A at one end and a Molex connector the other.

Supplied in Cream, Charcoal, Stone, Mid-Brown, Blue, Green and Maroon.
