UNITS, SIGNALLING

TG 2164
Point to point P.W. unit for use with Teleprinter No. 15.
Drawing - 64999.
Diagram - TG/TGW 2164.


TG 2358
Private circuit signalling unit for use with Teleprinter No. 15.
Superseded by Unit, Signalling TG 2375.

TG 2375
Private circuit signalling and control unit for Teleprinter No. 15.
Diagram - TG/TGW 2375.
Supersedes Unit Signalling TG 2358.


TG 3069
For inland and Continental telex subscribers connected to a manual switchboard.
Overall dimensions:- 16" x 7.75" x 10.75" high.
Drawing - 64191.
Diagram - TG /TGW 3069.


TG 5111
For use on Table, Teleprinter No. 4 on the  Teleprinter Automatic switching scheme.
Overall dimensions:- 8.25" x 15.1" x 15.5" high.
Drawing - 64179.
Diagram - TG 5111.

Pictures

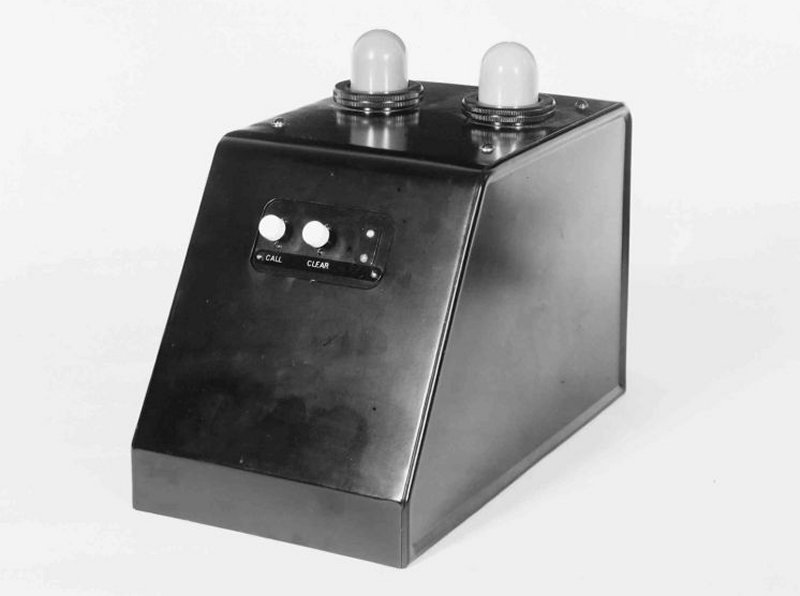

Units, Signalling TG 3069

Units, Signalling TG 3069

Units, Signalling TG 5111
