These are motorised, telephone exchange, ringing machines or V.F. tone
generators.
Dynamotor No. 1
Ringing dynamotor, without interrupter attachment, for C.B.S. and
Magneto exchanges.
Input:- 105v D.C. (1/6H.P).
Output:- 0.2 amp, 75v A.C. at 16.66 c/s.
Requires a Switch,
Tumbler No. 5 for starting purposes.
|
|
Dynamotor No. 2
Ringing dynamotor, without interrupter attachment, for C.B.S. and
Magneto exchanges.
Input:- 220v D.C. (1/6H.P).
Output:- 0.2 amp, 75v A.C. at 16.66 c/s.
Requires a Switch,
Tumbler No. 5 for starting purposes.
|
|
Dynamotor No. 3A
Ringing dynamotor, with tone and interrupter attachments, for
C.B.S., small C.B. and small Automatic exchanges and PABX's.
Includes a Plug No. 2402.
Input:- 22v, D.C. at 50 Watts max.
Output:- 0.075 amps, 75v A.C. at 25 c/s.
Diagram -
CB1327.
Superseded for new work by the Dynamotor No. 12.
|
|
Dynamotor No. 4A
Ringing dynamotor, with tone and interrupter attachments, for
C.B.S., small C.B. and small Automatic exchanges and PABX's.
Includes a Plug No. 2402.
Input:- 40v, D.C. at 50 Watts max.
Output:- 0.075 amps, 75v A.C. 25 c/s.
Diagram - CB1327.
Superseded for new work by the Dynamotor No. 14.
|
|
Dynamotor No. 5
Ringing machine, with flicker earth, driven from the D.C. public supply.
Includes a Plug No. 2402 and Plug, Wall No.
2.
Input:- 200-240v, D.C.
Output:- 75v A.C. at 0.2amps and
25c/s.
Drawing - CB39.
Diagram - CB1368.
Specifications - D1114 and T4099.
|
|
| |
|
Dynamotor No. 6
Used for charging secondary batteries at telephone exchanges.
Inputs:- 100-120v, or 200-230v, or 230-250v D.C.
Output:-
23-29v, 8-5amps.
Requisitions to state input voltage.
|
|
Dynamotor No. 7
Used for charging secondary batteries at telephone exchanges and
includes a starting switch.
Inputs:- 100-120v, or 200-230v,
or 230-250v D.C.
Output:- min 23-29v, max 42-50v at 320
Watts.
Requisitions to state input voltage.
|
|
Dynamotor No. 8
Used for charging secondary batteries at telephone exchanges and
includes a starting switch.
Inputs:- 100-120v, or 200-230v,
or 230-250v D.C.
Output:- min 23-29v, max 63-70v at 500
Watts.
Requisitions to state input voltage.
|
|
Dynamotor No. 9
Used for charging secondary batteries at telephone exchanges and
includes a starting switch.
Inputs:- 100-120v, or 200-230v,
or 230-250v D.C.
Output:- min 23-29v, max 63-70v at 750
Watts.
Requisitions to state input voltage.
|
|
Dynamotor No. 10
Used for charging secondary batteries at telephone exchanges and
includes a starting switch.
Inputs:- 100-120v, or 200-230v,
or 230-250v D.C.
Output:- min 23-29v, max 63-70v at 1000
Watts.
Requisitions to state input voltage.
|
|
Dynamotor No. 11
Ringing dynamotor, with tone and interrupter attachments, for small
Automatic exchanges and PABX's.
Includes a Plug No. 2402.
Input:- 50v D.C. at 50 Watts max.
Output:- 0.075 amps,
75v A.C. at 25 c/s.
Diagram - CB1327.
|
|
Dynamotor No. 12
A Ringing machine, with flicker earth, used at small 22-24v
exchanges.
Includes a Plug No. 2402.
Input:- 22v, D.C.
Output:- 0.2 amp, 75v
A.C. at 25 c/s.
Diagram -
CB1327 and AT3634.
Specification - T4189.
Superseded the No. 3A.
|
 |

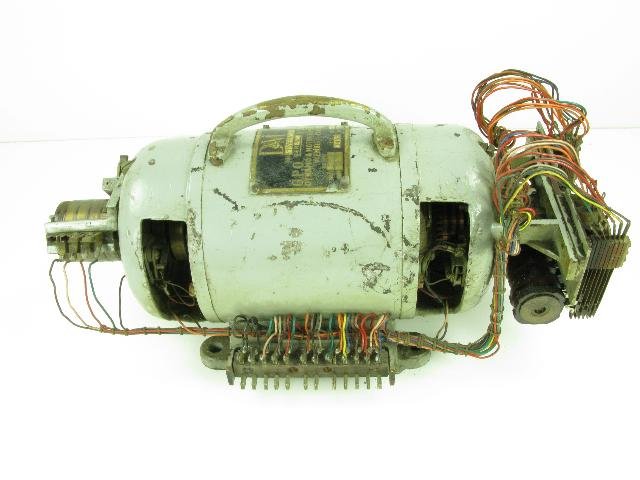

Dynamotor No. 13
A Ringing machine, with flicker earth, used at small 32-36v
exchanges.
Includes a Plug No. 2402.
Input:- 30v, D.C.
Output:- 0.2 amp, 75v
A.C. at 25 c/s.
Diagram -
CB1327 and AT3634.
Specification - T4189.
|
 |
Dynamotor No. 14
A Ringing machine, with flicker earth, used at small 40v exchanges.
Includes a Plug No. 2402
Input:- 38v, D.C.
Output:- 0.2 amp, 75v A.C. at 25 c/s.
Diagram - CB1327 and
AT3634.
Specification - T4189.
Superseded the No. 4A.
|
 |
Dynamotor No. 15
A Ringing machine, with flicker earth, used at small 50v exchanges,
where machines with start stop facilities are required.
Includes a Plug No. 2402.
Input:- 48v, D.C.
Output:-
0.2 amp, 75 A.C. at 25 c/s.
Diagram - CB1327 and AT3634.
Specification - T4015 and T4189.
|
|
Dynamotor No. 15A
A Ringing machine, with flicker earth, used at small 50v exchanges
where continuously running machines are required.
Includes a
Plug No. 2402.
Input:- 48v, D.C.
Output:- 0.2amp, 75v
A.C. at 25 c/s.
Diagram - AT3634.
Specification -
T4189.
|
|
|
Dynamotor No. 16
A ringing machine used on Relay Automatic Telephone Systems (RAT).
|
|
Dynamotor No. 17
Ringing dynamotor, with tone and interrupter attachments, for small
Automatic exchanges and PABX's.
Includes a Plug No. 2402.
Input:- 32v,
D.C. at 50 Watts max.
Output:- 0.075 amps, 75v A.C. at 25 c/s.
Diagram - CB1327.
|
|
Dynamotor No. 19
This set was used for charging secondary cells and consisted of a
Dynamotor of the protected type having 2 bearings, with an iron wire
compensator and a panel to consist of black-enamelled slate of not
loss than 1in. in thickness. Iron brackets were provided for fixing
the panel 6in. from a wall. The panel was equipped with an
ammeter, starting switch and a double pole fused switch.
Drawing - 10511.
Specification - PT4085, T4085 or D85.
|
|
Dynamotor No. 20
For providing H.V. supply to the valves in Units, Amplifying, Nos.
10 and 13. Fully enclosed in a metal case.
Input:- 22v,
D.C.
Output:- 0.6 amp, 180v, D.C.
Drawing - CD1229.
Specification - D1901.
|
|
Dynamotor No. 21
For use at overhaul centres for testing teleprinter motors.
Input:- D.C.
Output: 3 amp, 110v, D.C.
Includes:-
1
x Rheostat for controlling output voltage.
1 x Starting switch.
1 x Set spare brushes.
Requisitions must state details of
input voltage.
|
|
Dynamotor No. 22
This Dynamotor is a rotating protected machine that converts direct
current to single phase alternating current at 50 c/s and
approximately the same voltage as the input over the range 200-250
volts for supplying power to amplifiers operating loudspeakers,
telephones etc. The machine is continuous rated to provide an output
of 180 watts and is fitted with a frequency governor and a radio
interference suppression device. The machine is resilient mounted on
a wooden base designed to stand on the floor and has a removable
cover which forms a soundproof enclosure.
Includes a Plug No.
2402.
Input:- 200-250v, D.C.
Output:- 0.75 amp,
200-250v, at 50 c/s.
Diagram - TL2095.
Specification -
D1138 (Mark 2).
|
|
Dynamotor No. 23
This is a ringing dynamotor with inters. and inductor-type tone
generators for 2,000-type telephone exchanges.
Ring Tone
400/16 2/3 or 400/25 c/s. Busy and N.U. Tone 400 c/s. Dial Tone 33
or 50 c/s.
Includes a Plug No. 3201.
Input:- 47-51v,
D.C.
Output:- 0.2 amp, 75vac, at 16.6 or 25 c/s.
Diagram - AT4090.
Drawing - CD189.
Specification - T4015.
|
|
Dynamotor No. 24
For exchanges equipped with pre-2,000 and 2,000-type equipment.
Ring Tone 400/16 2/3 or 400/25 c/s, Busy and N.U. Tone 400 c/s and Dial
Tone 33 or 50 c/s.
Includes a Plug No. 3201.
Input:-
47-51v, D.C.
Output:- 0.2 amp, 75v A.C., at 16.6 or 25 c/s.
Diagram - AT4409.
Drawing - CD189.
Specification -
T4042.
|
|
Dynamotor No. 25
This dynamotor was used as an emergency supply to amplifiers and
would be powered from the exchange battery.
Input:- 46-52v
D.C.
Output:- 230v A.C. at 50c/s (80 Watts).
Drawing - CD417.
Specifications -
PT4140 and T4140.
|
|
Dynamotor No. 26
Ringing dynamotor for generating 500/20 c/s ringing current for
repeated ccts.
Input:- 20v-26v, D.C.
Output:- 0.08
amp, 5.1v, A.C., at 500/20 c/s.
Diagram - RP341 and TL1342.
Drawing - CD413.
Specification - PT4153 and T4153.
|
|
Dynamotor No. 27A, 27B, 27C and 27D
Ringing dynamotor without tones or interrupters.
Inputs:- No.
27A is 22v, No. 27B is 30v, No. 27C is 40v and the No. 27D is 50v, D.C.
Output:- 0.132 amp, 75v A.C. at 25 c/s.
Diagram - AT5119.
Specification - T4186.
|
|
Dynamotor No. 29
For exchanges equipped with pre-2000 and 2000-type equipment.
Ring Tone 400/16 2/3 or 400/25 c/s, Busy and N.U. Tone 400 c/s and Dial
Tone 33 or 50 c/s.
Includes:-
4 x Bolts, fixing,
with rubber sleeves and washers.
1 x Cushion,
anti-vibration ("Sorbo").
1 x Plug No. 2402.
Input:-
47-51v, D.C.
Output:- 1 amp, 75v A.C. at 16.6 or 25 c/s.
Diagram - AT5286.
Specification - T4193.
|
|
Dynamotor No. 30
For exchanges equipped with pre-2000 and 2000-type equipment.
Ring Tone 400/16 2/3 or 400/25 c/s, Busy and N.U. Tone 400 c/s and Dial
Tone 33 or 50 c/s.
Includes:-
4 x Bolts, fixing,
with rubber sleeves and washers.
1 x Cushion,
anti-vibration ("Sorbo").
1 x Plug No. 2402.
Input:-
47-51v, D.C.
Output:- 2 amp, 75v A.C. at 16.6 or 25 c/s.
Diagram - AT5286.
Specification - T4193.
|
|
Dynamotor No. 31
Dynamotor No. 31 is a rotary converter suitable for operation from a
D.C. supply of 24 Volts and giving an output of 200 Volts A.C. at
100 mA.
Input:- 24v, D.C.
Output:- 200v, A.C. at 50c/s, single phase, 100mA.
Drawing - CD950.
Specification -
D1914.
|
|
Dynamotor No. 32
Ringing dynamotor without tones or interrupters.
Input:- 22v and 24v, D.C.
Output:- 0.08 amp, 75v, A.C. at 20 c/s.
Specification - T4186.
|
|
Dynamotor No. 33A
Transportable dynamotor for equipment used on television outside broadcasts.
Input:- 200-250v, D.C.
Output:- 230v, 4.08A Single phase at 50 c/s.
|
|
| Dynamotor No. 34A Transportable dynamotor for equipment used on television outside broadcasts.
Input:- 12v, D.C.
Output:- 230v, 0.55amps, Single phase at 50 c/s.
|
|
Dynamotor No. 36A
A.C. Standby supply from exchange battery. Used with Panel, C/O., No.
7.
Input:- 50v, D.C.
Output:-200-250v A.C. at 50 c/s. at 100 V.A.
Power, Machines and Switchboards B1991.
|
|
| Dynamotor No. 37A and 37B A.C. Standby
supply from exchange battery. Used at small installations of
transmission equipment.
Inputs:- No. 37A, 40v, D.C. and No. 37B
24v, D.C.
Output:- 200-250v A.C. 80va, single
phase, at 50c/s.
Power, Machines and Switchboards B1991.
|
|
Dynamotor No. 38A
This is part of the
Oscillator No. 61A, which consists of a Dynamotor No. 38A "Walter
Jones type No. 10820" with one output transformer and controls to
match the output to line impedances of 10, 100, 200, 500 and 1000
ohms.
Three outputs, 1pps, 2pps and 5pps.
Input:-
22-25v D.C. (18 Watts).
Output:- 1000c/s (2 Watts).
Drawing - CD1203.
Diagram - SA9119.
Specification -
D1994.
Made by Walter Jones - Cat 10820.
|
|
Dynamotor No. 39A
For ringing supplies on Equipment, Frequency Generating No. 18A.
Input:- 200-250v, A.C.
|
|
Dynamotor No. 40A
For ringing supplies on Equipment, Frequency Generating No. 17A.
Input:- 400-440v, A.C. 3 phase.
|
|
|
Dynamotor No. 41A and 41B
The No. 41A and
No. 41B are both 37.5 Watt ringing machines which were used with manual and automatic exchanges.
Inputs:- No. 41B is 46.5-55.5v, D.C. and the No. 41B is 40v D.C.
Output:- 0.5 amp. 75v A.C. at 25Hz. Ring Tone, 400/50Hz, Busy
and NU tone 400Hz and Dial Tone 50Hz.
Drawing - CD1235.
Diagram - AT5425.
Specification - T4187.
T.I. E6 G2613 refers.
|
|
Dynamotor No. 43A
For use on the Continental automatic switching Unit, Common Service equipment.
Four frequency generators, 1000, 2040, 2280 and 2400 c/s.
Input:- 47-51v, D.C.
Diagram - AT5943.
Specification - T4188.
|
|
|
Dynamotor No. 44A
This is a 45 Watt Ringing
Machine generally found on the PMBX No. 3 and 4.
For use on ringing equipment to Diagram AT 5291.
Input:- 45-49v, D.C.
Output:- 0.2 amp, 75v A.C., at 25 Hz. Ring Tone 400/50Hz, Busy and NU Tone 400Hz
and Dial Tone 50Hz.
Drawing - CD1235.
Diagram - AT5425.
Specification - T4187.
T.I. E6 G2613 refers.
|
SEM
Walter Jones
|
|
Dynamotor No. 45A
This is a 75 Watt Ringing
Generator.
For use on ringing equipment to Diagram AT 5291.
Input:- 46-50v, D.C.
Output:- 1 amp, 75v, A.C., at 25 Hz. Ring Tone 400/50Hz, Busy and NU Tone 400 Hz
and Dial Tone 50 Hz.
Drawing - CD1235.
Diagram - AT5425.
Specification - T4187.
Parts available - T.I. E6 G2613.
|
 |
|
Dynamotor No. 46A
V.F.
Tone Generators for SSMF No. 9. It produces two tones at 1000
and 2280 c/s.
Input:- 47-51v D.C.
Drawing - CD1393.
Diagram - AT5694.
Specification - T4207.
Parts available - T.I. E6 G2400 and E6 G2401.
|
|
|
Dynamotor No. 47A
This is a V.F.
Tone Generator.
Supplies frequencies of 700, 900, 1000, 1100, 1300, 1500 and 1700 c/s.
Input:- 47-51v D.C.
Drawing - CD1670.
Specification - T60034.
|
|
|
Dynamotor No. 48A
Tone Generators for SSMF No. 2.
Supplies frequencies of 540, 660, 780, 900, 1020, 1140, 1380, 1500, 1620, 1740,
1860 and 1980 c/s.
Drawing - CD1860.
Diagram - AT60198.
Specification - T60198.
Parts available - T.I. E6 G2410 and E6 G2411.
|
|
|

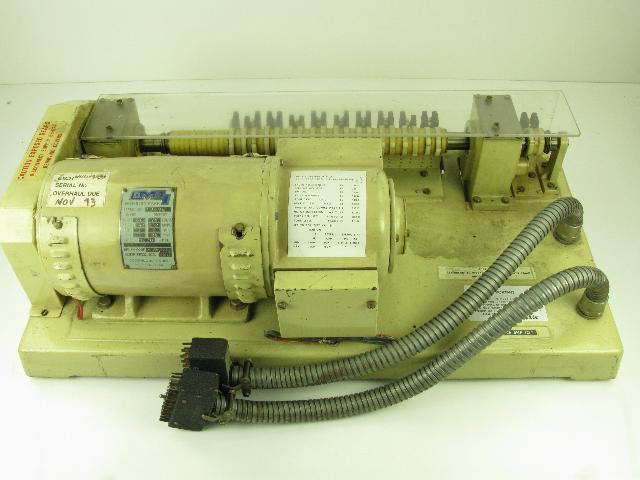

Dynamotor No. 50A
This is a 15 Watt, 50v D.C.
ringing machine for electronic exchanges (TXK2).
Drawing - CD2202.
Diagram - AT71086.
Specification - T71086.
Brushes
Slip ring brush - PPD/BR/2420.
Commutator brush
- PPD/BR/1935.
|
SEM
|
Dynamotor No. 51A
This is a 37.5 Watt, 50v D.C. ringing
machine for electronic exchanges (TXK2).
Drawing - CD2202.
Diagram - AT
60198.
Specification - T60198 and T70186.
|
|
Dynamotor No. 52A
This is a 75 Watt, 50v D.C. ringing machine for electronic exchanges (TXK2).
Drawing - CD 1860.
Diagram - AT
60198.
Specification - T60198 and T70186.
|
|
