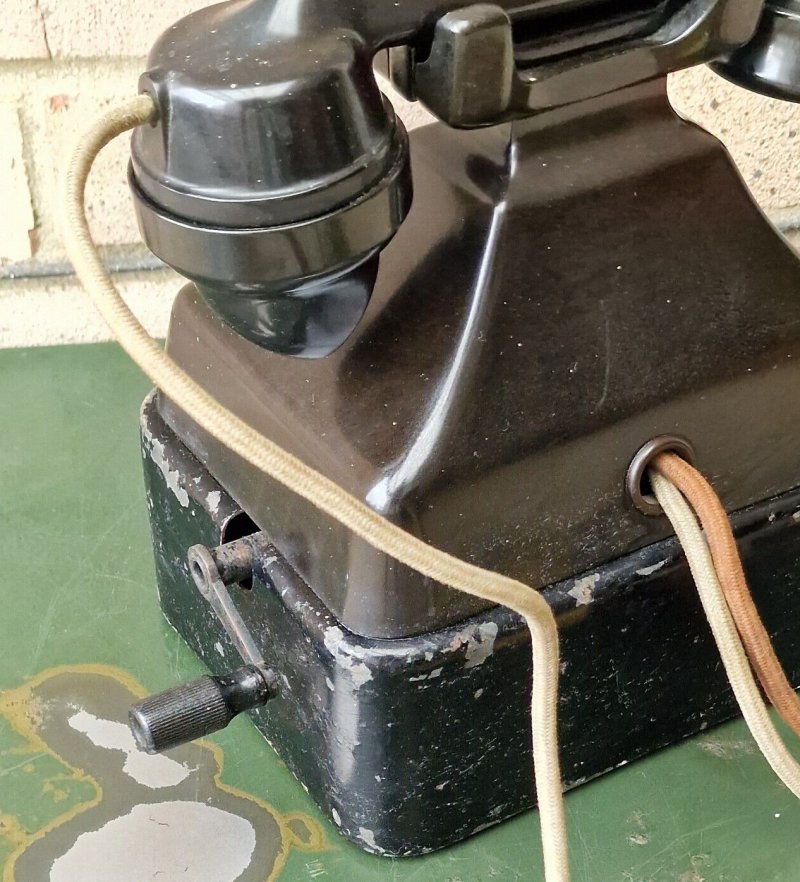

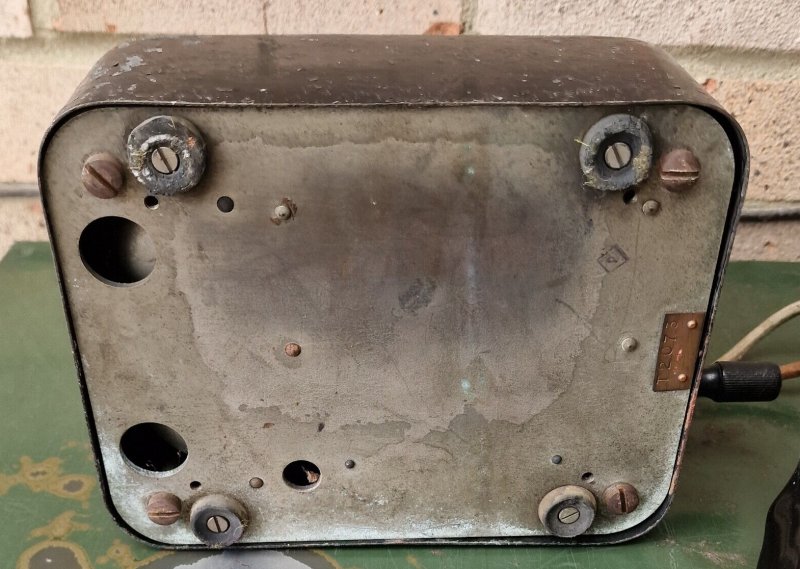

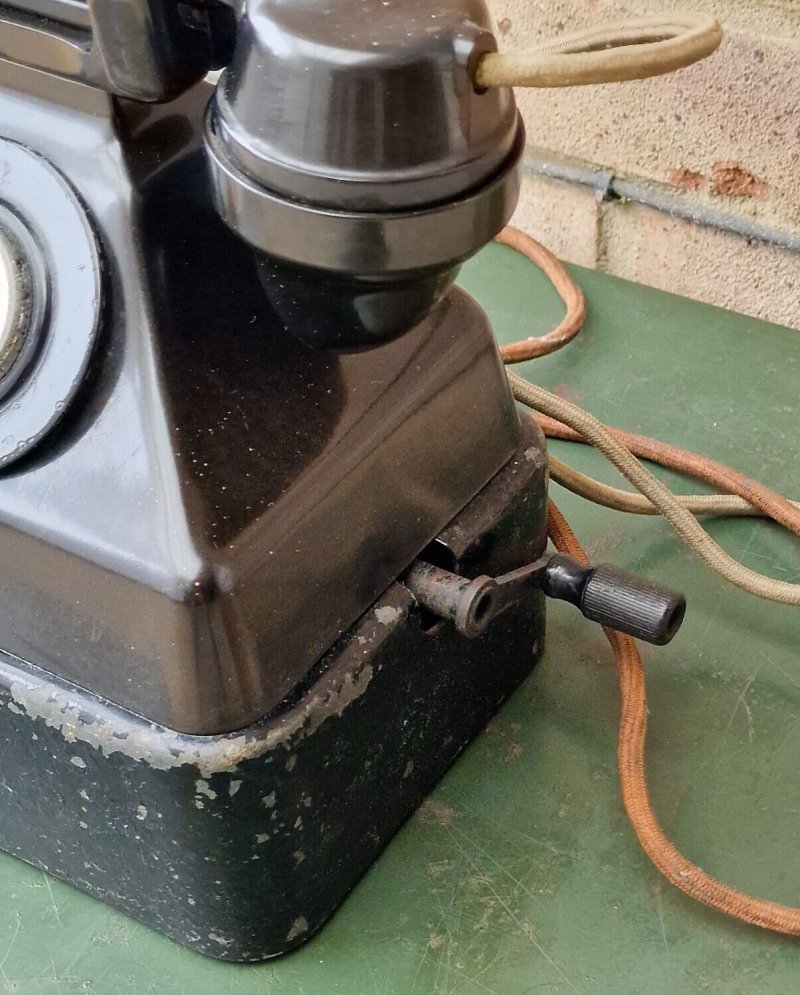

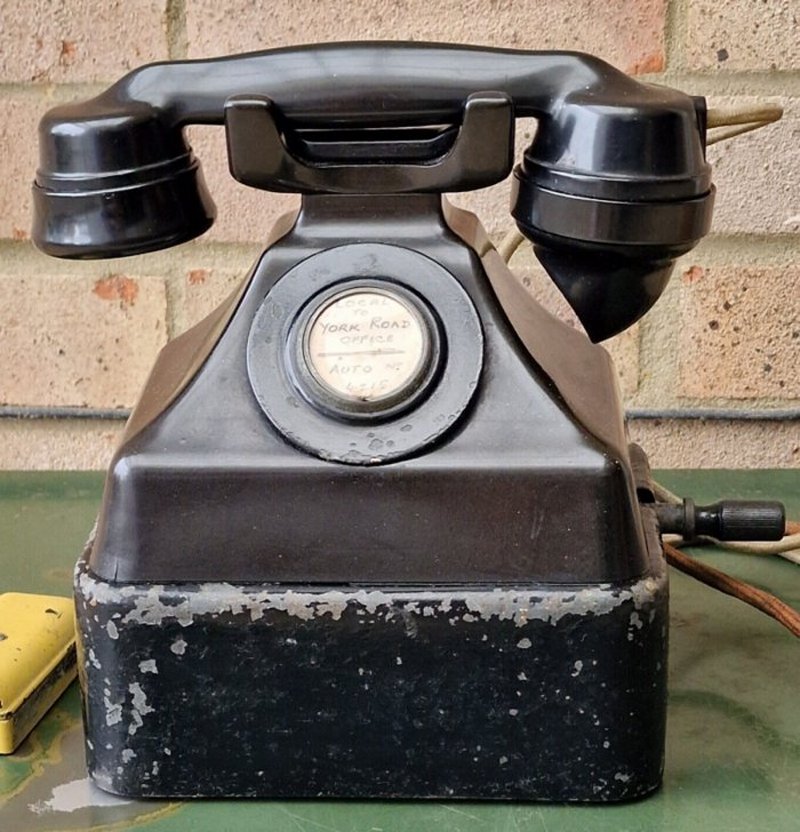

| This telephone is a Gecophone attached to a metal base containing

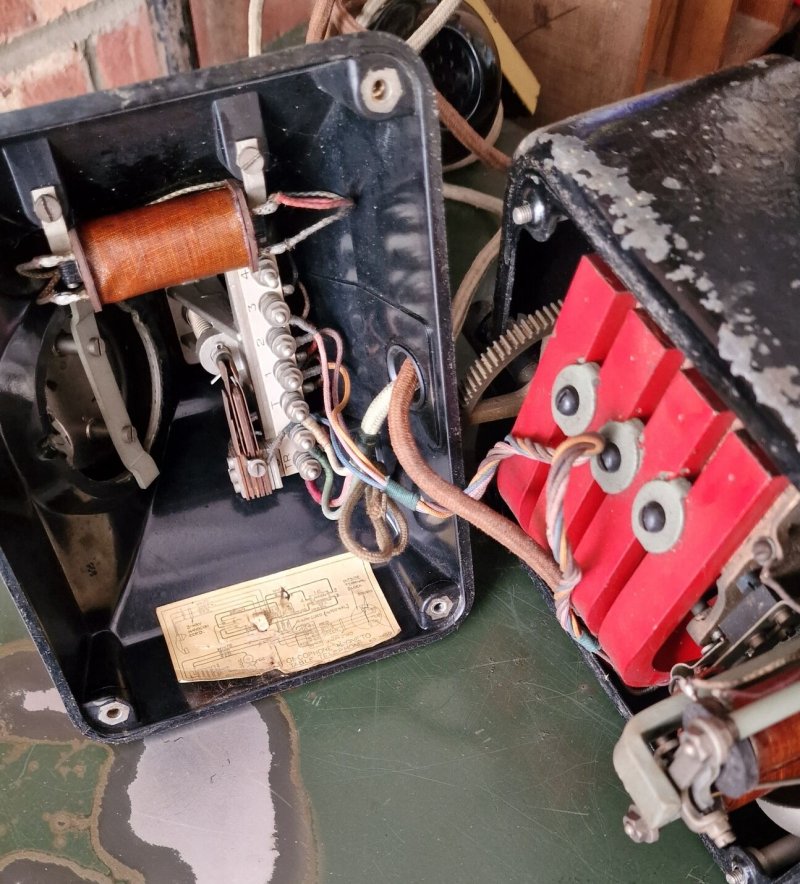

a ringing generator and a bell ringer. The phone requires a three volt battery for transmission purposes. The telephone dates around 1931/1932 and looks an early model due to the all metal hook switch frame. The Induction coil is DRG 42114. This is a local battery coil which consists of two windings and therefore only has 4 tags. It is wired to circuit diagram KS7450, but no model number has been found as yet.
|
|||||||
Last revised: July 30, 2025FM2 |
