K7866
 Peel Conner Intercommunication Telephone
"Auto-Reset" Wall Station
Wall pattern battery call intercom telephone comprising of `Manchester' shot transmitter,
electro-magnetic watch receiver, automatic switch-hook, auto reset ring key, impedance coil
and 25 ohm bell. Walnut with all external metal work
in an oxidised finish.
Made in four sizes:- 5 lines, 10 lines, 15 lines and 20 lines.
Cost in 1926 was £4.0.0 for the 20 line model.
Common and Local Battery working.
A version similar to above was also made the only differences being the transmitter and
receiver being replaced by a handset.
See also K7865 which has an induction coil fitted.
The ring button is on the right hand side of the transmitter housing.

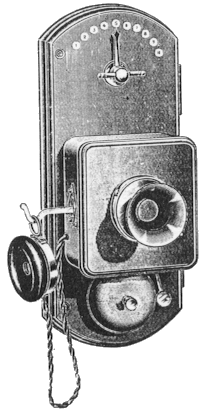

From the GEC Telephones & Fire Alarms Catalogue 1926
Additional Pictures

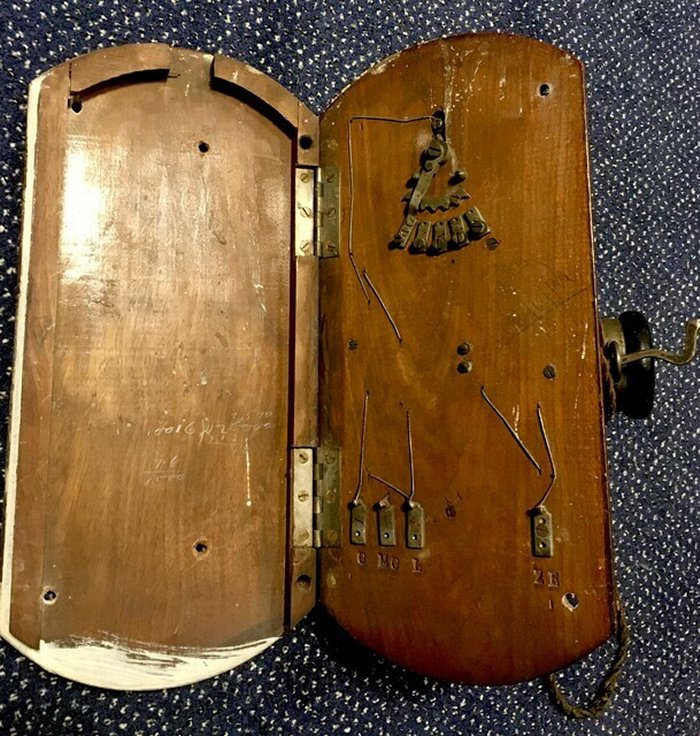

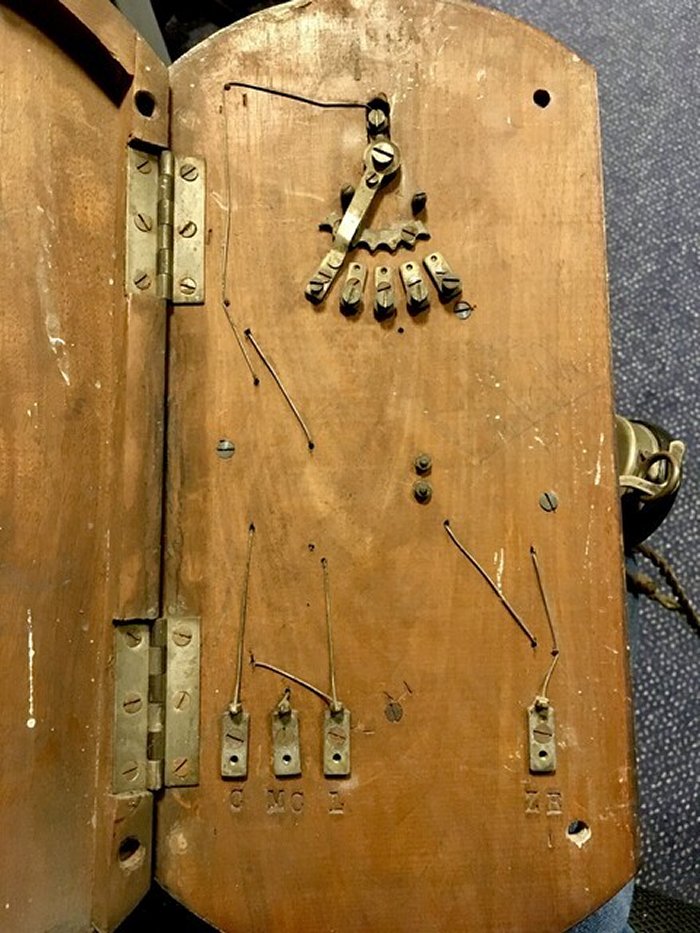

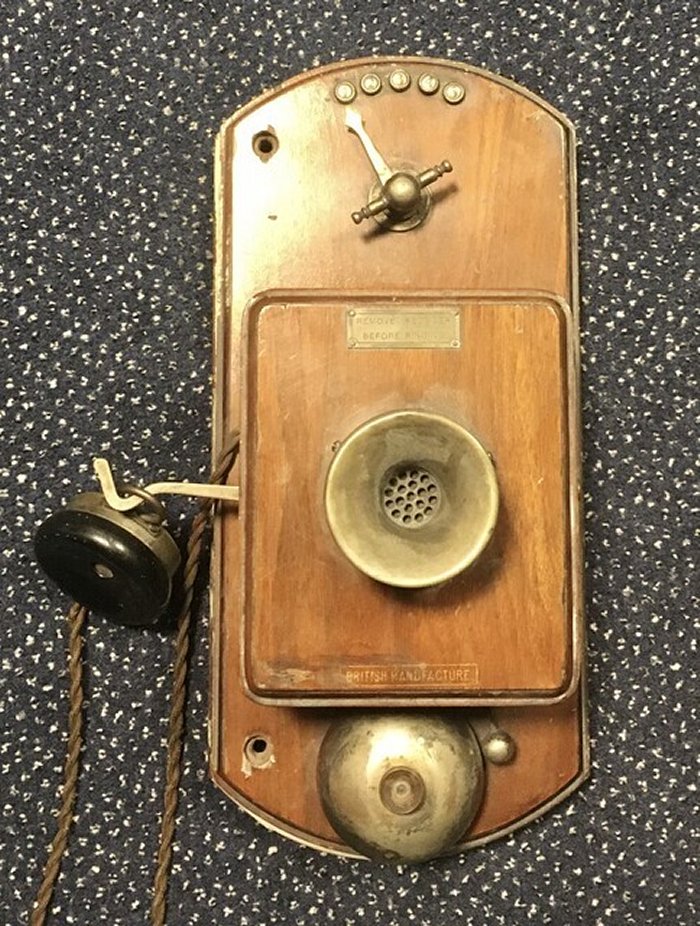

5 line model
|
GEC K7866
