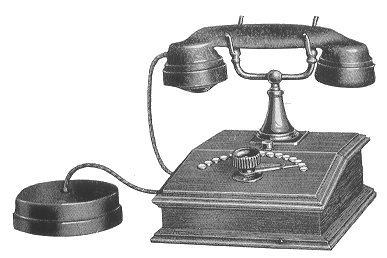

| K7888
 INTERCOMMUNICATION TELEPHONE
Without Induction Coil
Description as per K 7867.
Table type telephone, comprising radial switch, automatic cradle, auto-reset ringing key, impedance
coil, 25ohm buzzer, brown Bakelite handset without speaking key in handle, fitted with receiver
and inset transmitter which can be easily removed,
flexible cord, and wall rosette. External metal
parts coin bronze.
Cost in 1932 and 1935 for the 21 line model was £6.15.0.
Weight:
6 lines, 5 lbs. 6 oz.
11 lines, 5 lbs. 10 oz.
16 lines, 6 lbs.
21 lines, 6 lbs. 4 oz.
Dimensions, 9.5 x 9 x 8 ins.
Extra charge when fitted with induction coil.
Found in the 1932 and 1935 Catalogues
Wiring diagrams
Additional Pictures
This is the same model with an earlier handset

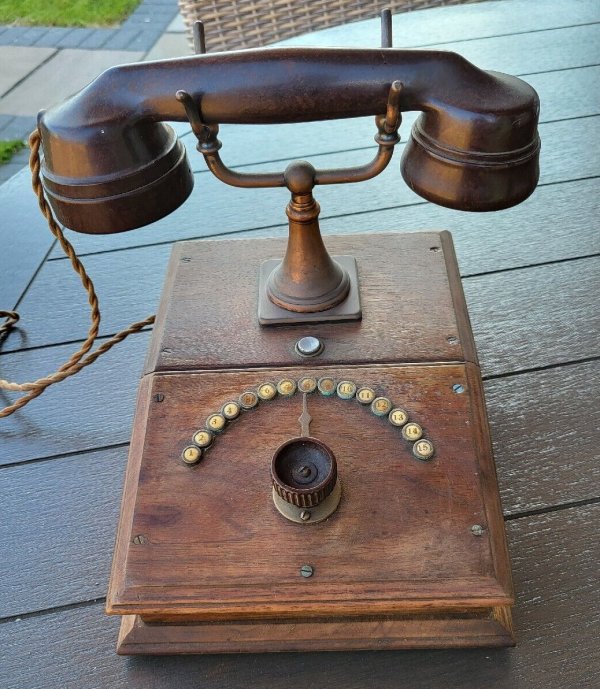

11 way model
11 way model

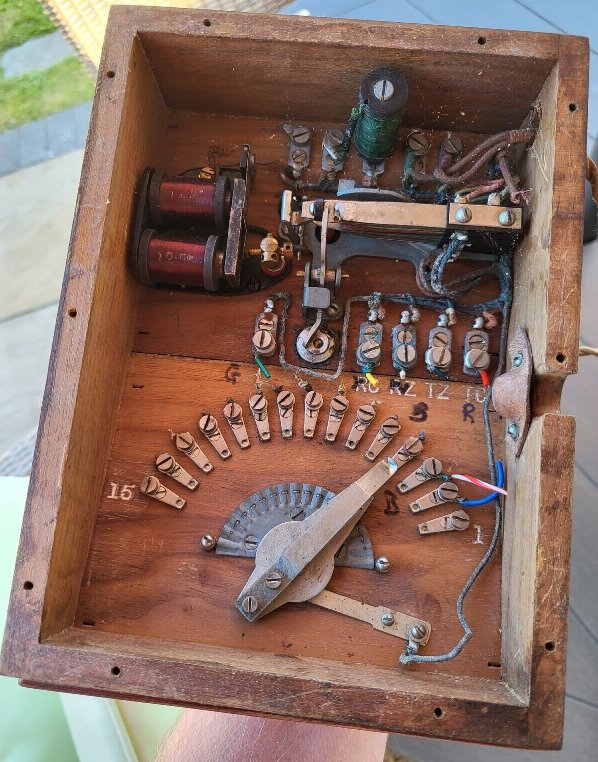

16 way model
16 way model

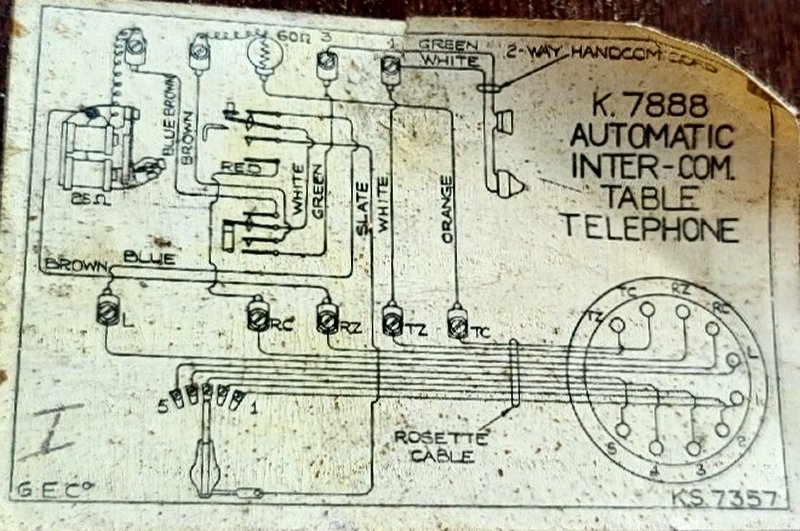

Diagram KS 7357 - all models
|
GEC K7888
