TEL17T/ATS


Introduced in 1956, this set is the GEC 1000 set.  These were fitted with a new induction coil and rocking armature receiver which allowed them to be used on 1000 ohm exchange lines.

The TEL17T was used on British Railways and was also made for telephone Rentals.

Click here for the circuit diagram and conversion details for the UK telephone system.

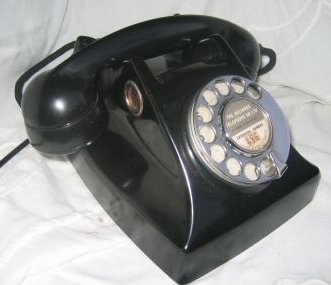

The phone in the picture was installed by the Reliance Telephone Company GEC 100 type with a GPO dial label.

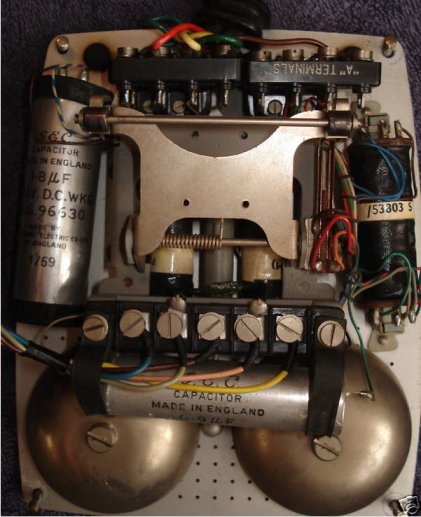

Internal mechanism
Showing the two terminal block variant

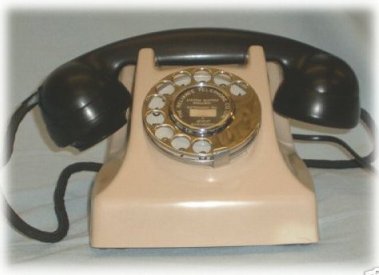

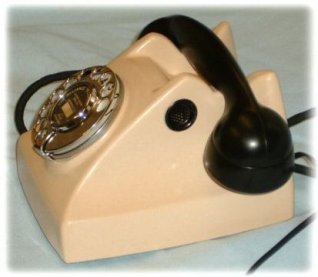

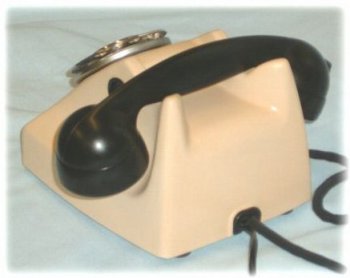

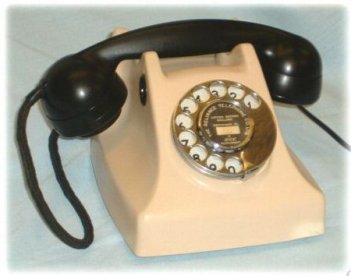

Below we have the white variant and yes - the handset was black
as it was for the red and green cased variants as well.
