GENERATOR No. 26AN | |||||||
The Generator No. 26AN was part of the a large range of Generator No. 26's.
The AN suffix designating the variation. The case is made of Bakelite and is fixed to the base by 4 large headed screws. These screws are placed in the side of the case to allow the generator to be screwed to a desk or shelf. The case is removed by loosening the 4 screws on the sides of the case and removing the handle. The handle is removed by turning, sharply, anticlockwise.
External view

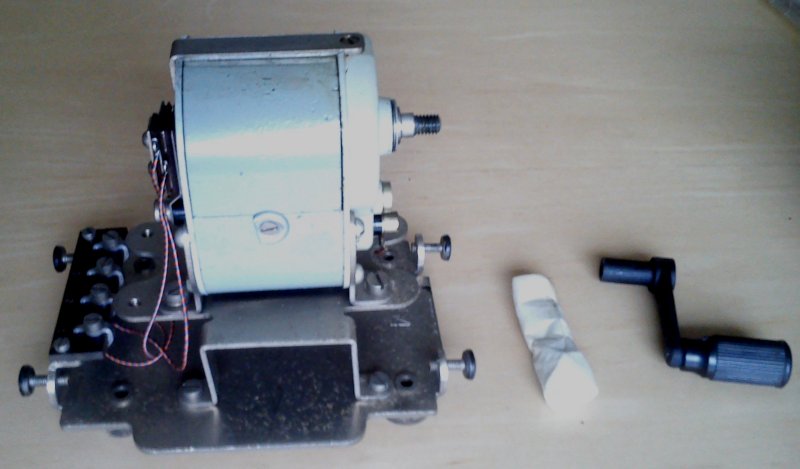

Internal view with case removed
Circuit Diagram
|
|||||||
