GENTS R50 & R51

R50 & R51

R50 - 10 Way Telephone

Where a simple non-secret intercommunication system of telephones is required, the Regent type of instrument is ideal.  Made in two sizes only, 5-way and 10-way, it forms an exceedingly simple and efficient system having application for warehouse, small office, factory, hotel and institution use.

The R.50 telephone is a modern design Bakelite-cased instrument having an internal bell. Push buttons are arranged centrally in front of case for signalling to desired telephone. Each telephone is supplied complete, wired to a Bakelite rosette with 6 ft. of flex cable.

These telephones require multi-core cable for line connections, 7 line cable for 5 station instruments and 12 line cable for 10 station instruments.

One central battery, usually 4 to 5 dry cells, is required for each installation, together with one inductor coil connected in the battery lead.

R.50 - Desk Mounting
R.51 - Wall Mounting


Note: Gents bought Gecophone component parts, handsets and cases from GEC for the desk model.  The wall phones were purchased from Siemens Brothers

Click here for more information on the Gecophone


R50 - 5 way telephone

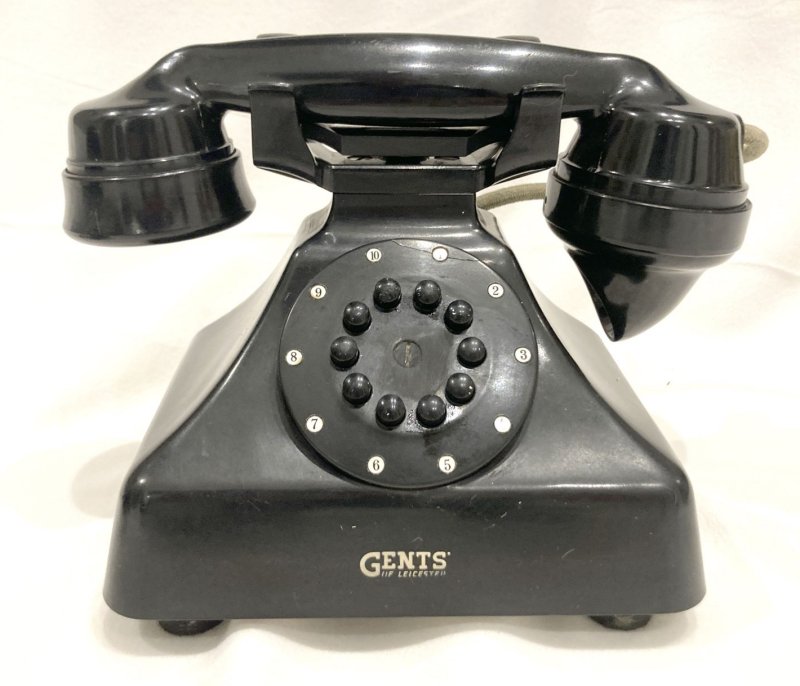

R50 - 10way telephone

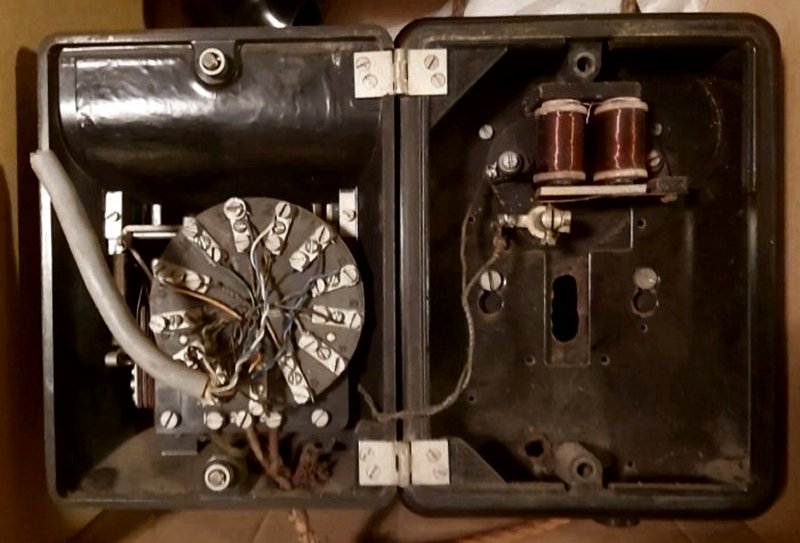

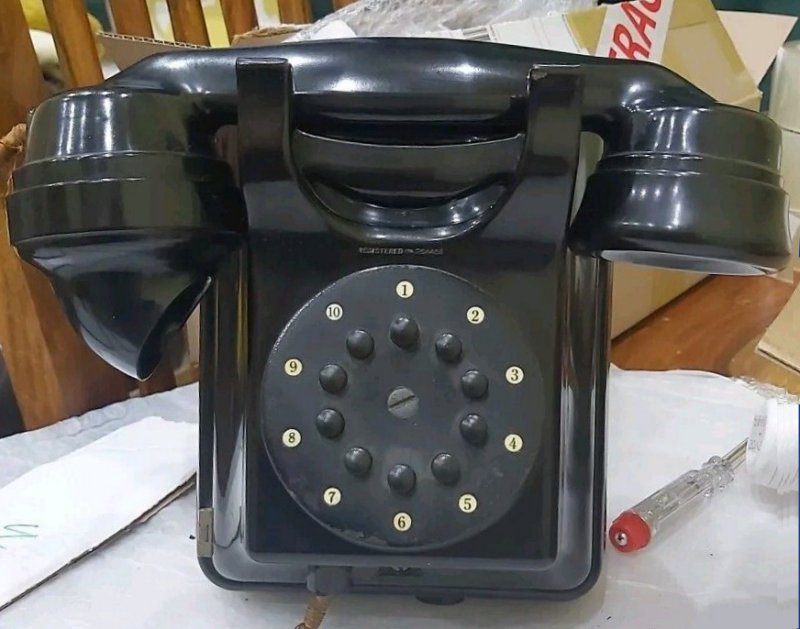

R51 - 10 way telephone

R51 - 10 way telephone
