Mechanical Aids

BLOWER, AIR, MANUALLY OPERATED

Reference
LINES, Underground, J1142.

Application
Used for forcing fresh air into manholes etc. to displace foul air or gas which may accumulate.

General description

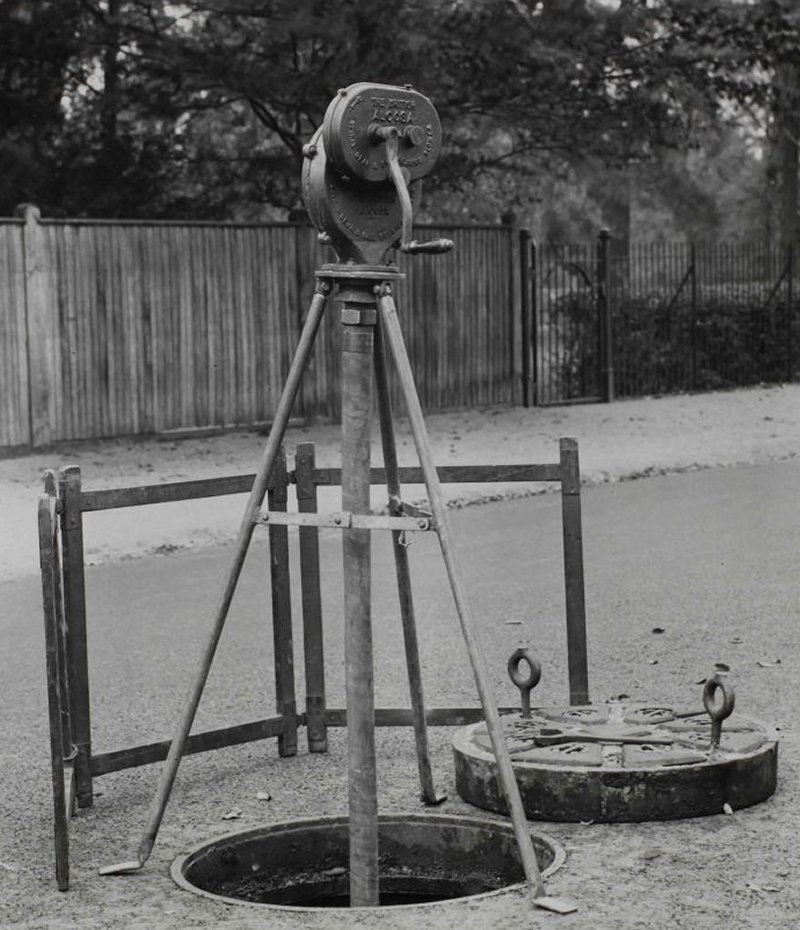

The appliance is a handle-operated fan mounted on a light tubular tripod with a 20ft. length of 2in. diameter hose coupled to the air outlet.  The air inlet is covered by a grille to protect the operator.

Output
120 cu. ft./min.

Remarks
The item was superseded by Blower, Air, P.E.D.

Last revised: May 04, 2023
