Mechanical Aids

BLOWER, AIR, P.E.D.

Application
For the ventilation of underground chambers, subways etc. and for the dispersal of obnoxious gases.

General description

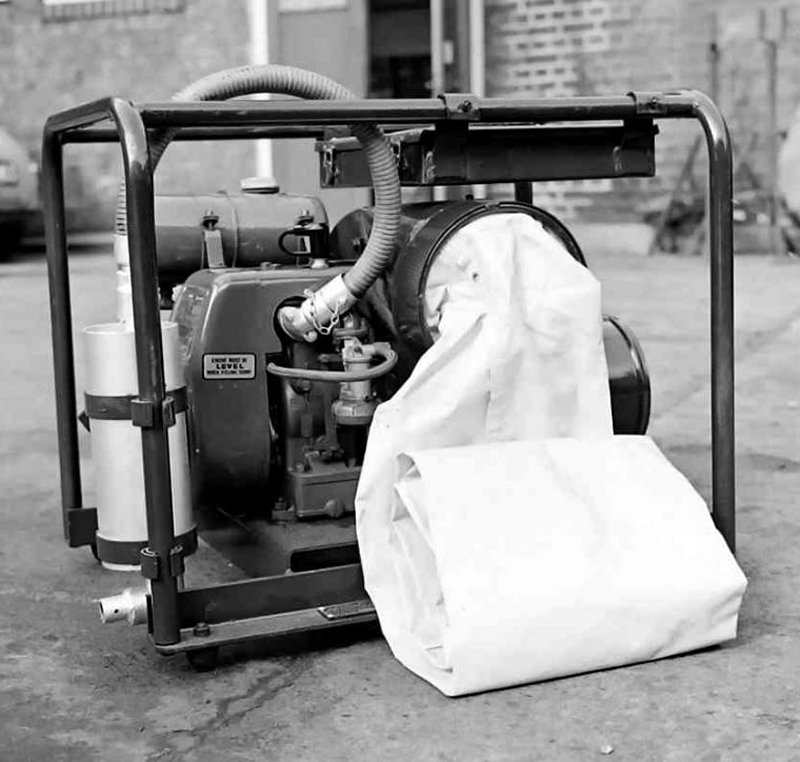

The machine consists of a centrifugal fan unit driven by a four-stroke petrol engine. It is operated at ground level and blows air through a 9in. diameter canvas hose. The maximum output of the fan is 1,100 cu. ft. of free air per minute.
A damper is fitted to the blower inlet so that the output is controllable.

The engine is fitted with a recoil starter and the whole unit is mounted within a tubular steel framework which gives all round protection and enables the machines to be stacked for storage purposes.

The machines are supplied complete with two lengths of lightweight P.V.C. coated terylene ducting. One length incorporates a 90° bend and duct to duct or duct to blower connexions are made by means of coupling rings fitted at each end of each length of duct. The ducting can be folded and stored in a box fitted to the blower.

Dimensions.
Length 2ft. 4in.
Height 1ft. 11in.
Width 1ft. 8in.

Weight.
85 lb. (approx.)

Fuel consumption.
0.5gal. (approx.) per 3hours at full load.
