| Description |
Compressor, Air, 2 tool, Trailer |
| Manufacturer |
Broomwade |
| Model |
Two Tool, Trailer Mounted, Compressor |
| Type |
|
| Use |
|
| Fleet Number |
|
| Date of picture |
1948 |

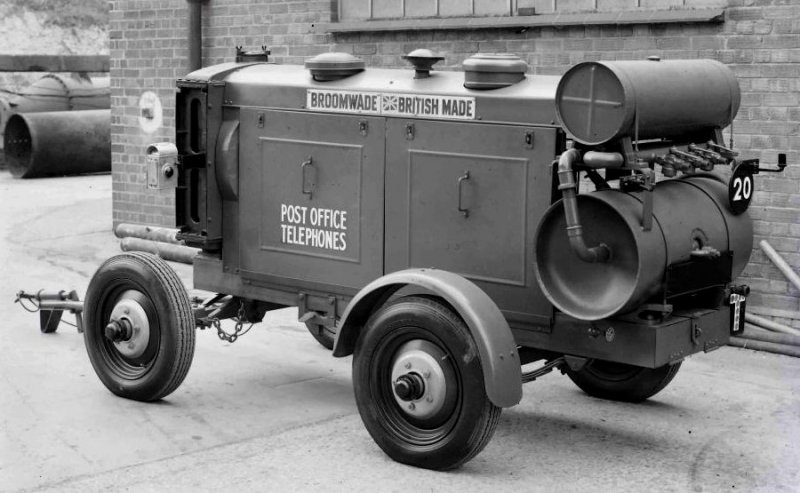

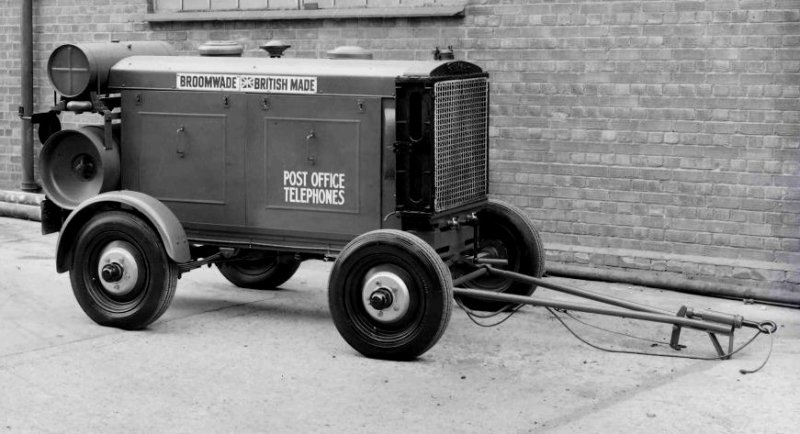

COMPRESSOR, AIR, 2-TOOL TRAILER
Reference
P.O.E.E.J. Vol. 45, Page 6Application
For use where a considerable amount of heavy work is to be performed
involving the continuous use of pneumatic tools.
General description

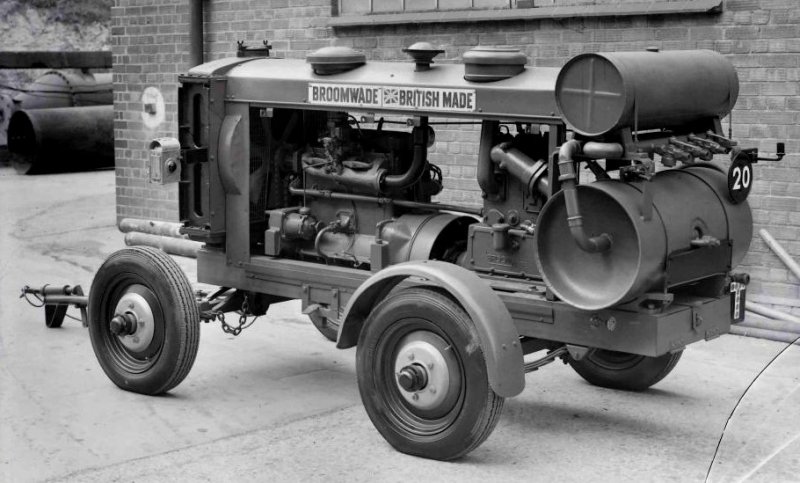

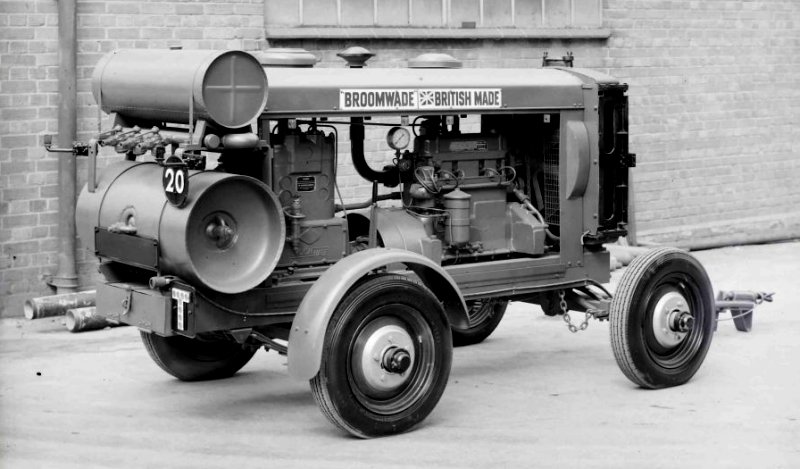

The machine consists of a 32-h.p. petrol engine driving a
twin cylinder compressor. The compressor delivers 110 cu. ft./min. of air at 100
lb./sq. in. pressure. The unit is mounted on a four-wheel trailer fitted with
over-run brakes.

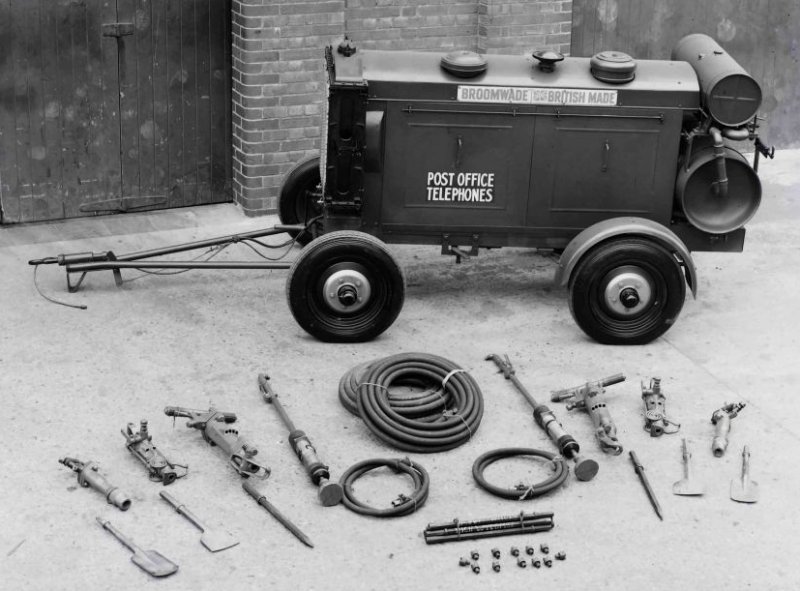

The tools provided for use with this machine are two road breakers, two rock
drills, two clay spades, two pneumatic rammers, associated breaker drills, drill
rods and air hoses. The pneumatic tools are not accommodated on the trailer but
are carried separately.
Dimensions
Length 9ft. 4in. Width 5ft. 6in. Height 5ft. 4in.
Weight
30 cwt approx.
Fuel consumption
l.5 gallons per hour.
Transport
Towed by 30-cwt vehicles and over.
Capital cost
£850.
Remarks
Hoses obtainable on requisition Rate Book Section 5-TA.
