| Description |

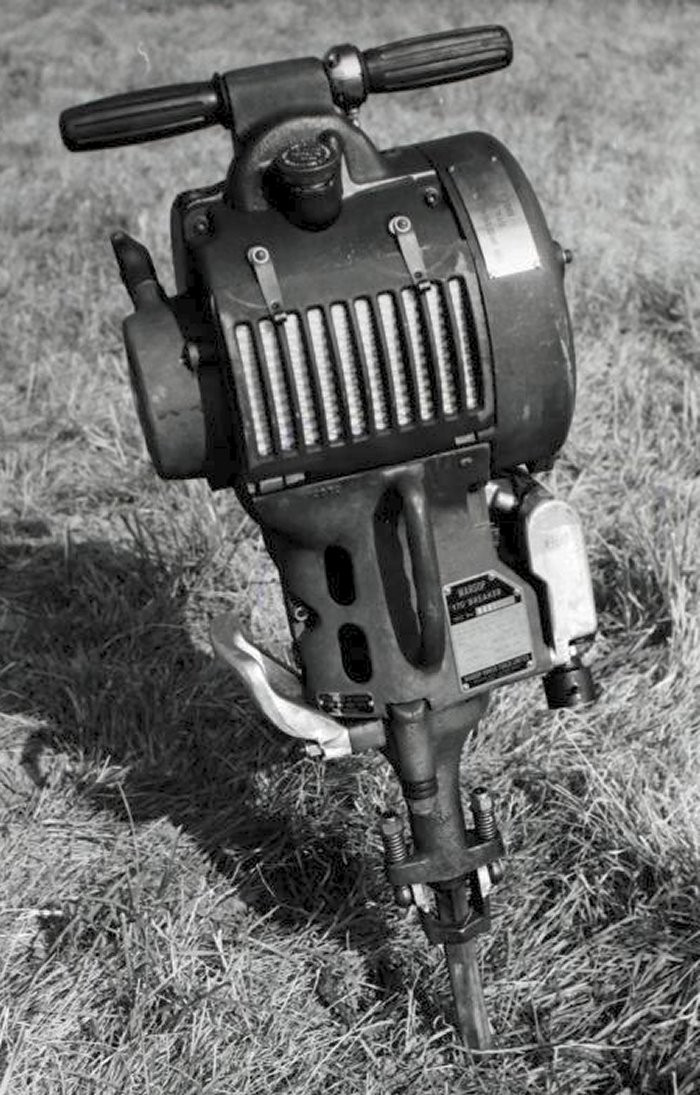

Drill, P.E.D. (Warsop) |
| Manufacturer |
Warsop |
| Model |
170 |
| Type |
|
| Use |
Two stroke driven road breaker |
| Fleet Number |
|
| Date of picture |
1966 |
Application
For breaking light road surfaces, for short trench sections etc.
General description
The machine is driven by an integral two-stroke petrol engine working in an
inverted position and drives a hardened steel chisels or clay spade. It is
similar in principle to the earlier model described in C1010. The instruction
manual, breaker, and other assorted tools are contained in a wooden case for
transportation purposes. The machine is operated by one man and will work at
angles up to 45 degrees above horizontal.
Instructions for sharpening drill steels are given in C1010.
Dimensions
Height 28in. (approx.), Width 13.5in. (approx.) and Depth 11in. (approx.).
Weight
66lb. (approx.).
Fuel
Petrol/oil mixture (see instruction manual); consumption, two pints per hour.
|
