OHMMETER No. 2 | ||||||||
|
Ohmmeters No. 2, are intended for the measurement of insulation resistance
etc. where Ohmmeters No. 1 are not suitable. The movement is of
cross-coil type. A constant speed hand-driven generator and special
slipping clutch are incorporated which enables a steady reading to be

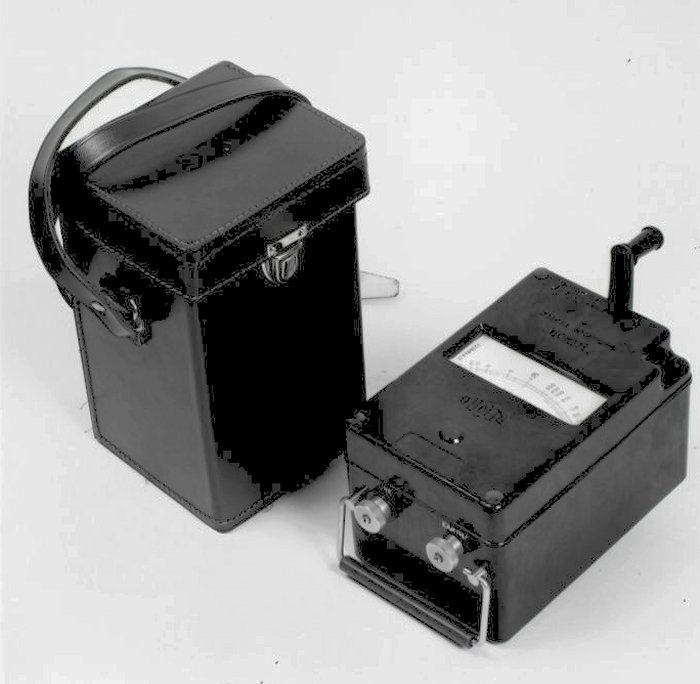

obtained on conductors having considerable electrostatic capacity. The LINE terminal has a guard ring but no GUARD terminal is fitted. There are two types; 250 volts and 500 volts. Ranges:- The 250v model is scaled 0-50 megohms and infinity. The 500v model is scaled 0-100 megohms and infinity. Specification - D1479. In 1932 two manufacturers supplied these Ohmmeters. Ohmmeter No. 2 250v Evershed & Vignole's "Megger Insulation Tester". Catalogue No. 54007. Constant pressure generator, output of 250V at 160 r.p.m. Scaled 0-50 megohms and infinity. Housed in a cast aluminium case, dimensions approx. 8.75in. x 6.25 in. x 5in. Weight 7.25 lbs. Record Electrical Co's "Constant Pressure Insulation Tester". Code word WYZEB. Output of 250V at 180 r.p.m. Scaled 0-50 megohms and infinity. Housed in Teak case with dimensions approx. 10in. x 5.25in. x 4.5in. Weight 6.5lbs. Ohmmeter No. 2 500v Messrs. Evershed & Vignole's. Catalogue No. 54008. The Record Electrical Co's Code WYZIC.
|
||||||||
