The basic configuration was 6+16 but when fully
populated it could support 12 lines and 32 extension telephones.

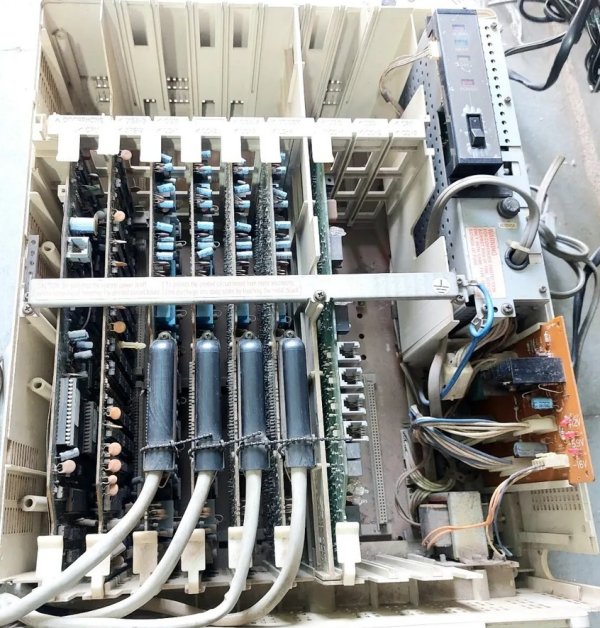

This system has card slots for extensions and exchange
line cards and the cables were connected by 25 pair Amphenol connectors.
The telephones below are older models and were originally sold with the KX-T30810,
KX-T61610 and KX-T1232 systems.
KX-T30820 - Featurephone telephone (3 CO).
KX-T30830 - Featurephone telephone with LCD (3 CO).
KX-T30850 - Featurephone telephone (3 CO).
KX-T61620 - Featurephone telephone (6 CO).
KX-T61630 - Featurephone telephone with LCD (6 CO).
KX-T61631 - Featurephone telephone with LCD (6 CO).
KX-T61650 - Featurephone telephone (6 CO).
KX-T123220 - Featurephone telephone (12CO).
KX-T123230 - Featurephone telephone with LCD (12CO).
KX-T123250 - Featurephone telephone (12CO).
|
Panasonic
KX-T 1232 Programming Codes
Move switch
on left side of cabinet to PROGRAM. Use main phone to program.
(Return to middle position when done) |
|
Code |
Description
(Default) |
|
00 |
Time/Date |
|
01 |
System Speed Dial (00 to 99) |
|
02 |
Extension Number Assignment (01=101
etc.) |
|
03 |
Operator Assignment (Operator 1
and Operator 2) |
|
04 |
Paired Telephone DSS Console
Assignment |
|
05 |
Automatic CO Transfer using DSS
key (With/Without Transfer) |
|
06 |
Day/Night Service (Manual/Automatic) |
|
07 |
System Starting Time for
Day/Night service (9:00 AM to 5:00 PM) |
|
08 |
Call Hunting Setting (Group 1
through Group 8) |
|
09 |
Hunting Type (Terminate/Circular) |
|
12 |
Toll Restriction-System Speed
Dialing (Class 1, 2, 3, 4, 5) |
|
13 |
Toll Restriction-Class 2 Denied
Code Assignment |
|
14 |
Toll Restriction-Class 3 Denied
Code Assignment |
|
15 |
Toll Restriction-Class 4 Denied
Code Assignment |
|
16 |
Toll Restriction-Class 5 Denied
Code Assignment |
|
17 |
Toll Restriction-Denied Code
Assignment |
|
18 |
Hold Recall Time set (.5
Min./1 Min./1.5 min./2 Min./Disable) |
|
19 |
Transfer Recall Time (30
Seconds/2 Minutes( |
|
20 |
Call Forwarding Start time (1,2,3,4
rings delay) |
|
21 |
Pickup Dial Delay Time (1, 2,
3, 4 Seconds) |
|
22 |
CO to CO Duration Time Limit 1 to
32 Minutes |
|
23 |
SMDR
RS232
Parameters |
CR+LF, CR
Baud Rate 110, 150, 300, 600,
1200, 2400, 4800, 9600
Word Length 7 Bits,
8 Bits
Parity None, Mark,
Space, Even, Odd
Stop Bit Length 1 Bit,
2 Bits |
|
24 |
SMDR Parameters (Lines per
page 66) (Skipping lines 0) |
|
25 |
Incoming/Outgoing Selection for
printing |
|
26 |
Secret Speed Dialing/One Touch
Dial printing (Printing/No Printing) |
|
27 |
SMDR System Data Dump |
|
28 |
Duration Time Count Start Mode (5,
10, 15 Seconds after dial) |
|
29 |
External Paging Access Tone (Enable/Disable) |
|
31 |
DISA (Enable/Disable) |
|
32 |
OPX (Enable/Disable) |
|
33 |
OHCA (Enable/Disable) |
|
34 |
System Working Report |
|
40 |
CO Connection (Connect/Not
Connect Lines 1 through 12) |
|
41 |
DTMF/Pulse/Call Blocking |
|
42 |
Pulse Speed Selection |
|
43 |
Host PBX Access Codes Assignment |
|
44 |
Trunk Group Assignment 1-8 |
|
45 |
Outward Dialing, Day (All
stations enabled) |
|
46 |
Outward Dialing, Night (All
stations enabled) |
|
47 |
Ringing, Day (All stations
enabled) |
|
48 |
Ringing, Night (All
stations enabled) |
|
49 |
Ring Delay, Day (1, 2, 3, 4,
Immediate Rings) |
|
50 |
Ring Delay, Night (1, 2, 3, 4,
Immediate Rings) |
|
51 |
CO Mode, Day (Normal,
DIL, DISA) |
|
52 |
CO Mode, Night (Normal,
DIL, DISA) |
|
53 |
Pause Time Assignment (1.5, 2.5,
3.5, 4.5 Seconds) |
|
54 |
Hook Flash time (300ms
600ms 900ms 1200ms)(600ms default) |
|
55 |
CPC |
|
56 |
Disconnect Time (1.5,
4.0 Seconds) |
|
57 |
Auto Designated line access (Enable/Disable) |
|
60 |
Extension Groups 1 through 8 (Group1) |
|
61 |
Service Class Assignment of Toll
Restriction, Day |
|
62 |
Service Class Assignment of Toll
Restriction, Night |
|
63 |
Extension Name |
|
64 |
Account Code Input Mode |
|
65 |
Call Transfer to Outside line
(Enable/Disable) |
|
66 |
Call Forwarding to Outside Line
(Enable/Disable) |
|
67 |
Executive override (Enable/Disable) |
|
68 |
DND Override (Enable/Disable) |
|
69 |
SLT Connection with proprietary
telephone (Enable/Disable) |
|
70 |
Ringing from Door Phone, Day (Enable/Disable) |
|
71 |
Ringing from Door Phone, Night (Enable/Disable) |
|
72 |
Assignment of Door Opener, Day (Enable/Disable) |
|
73 |
Assignment of Door Opener, Night
(Enable/Disable) |
|
80 |
Voice Mail Port assignment (Enable/Disable)
(Circle3, Circle B only) |
|
81 |
DTMF Integration Assignment (Enable/Disable)
(Circle3, Circle B only) |
|
91 |
Call on Hold for SLT (Hold
1=Flash or Hold 2=Flash 20) |
|
99 |
System Data Clear |
The KX-T123210 was a larger version
of the KX-T61610, the major difference being that it could accept
expansion cards.
