Click on any picture to enlarge
Most of these telephones could be ordered in black or white colours
Click here for the KX-T7600
Range Specifications
| KX-T7603 |
Key Module (12 CO keys) add-on Features
- 12 Programmable CO Line Keys with Dual Coloured LED Light
Indicators
- Multi-Angle Tilt Body
- Wall-Mountable
Compatibility
KX-TDA30,
KX-TDA100, KX-TDA200. |
 |

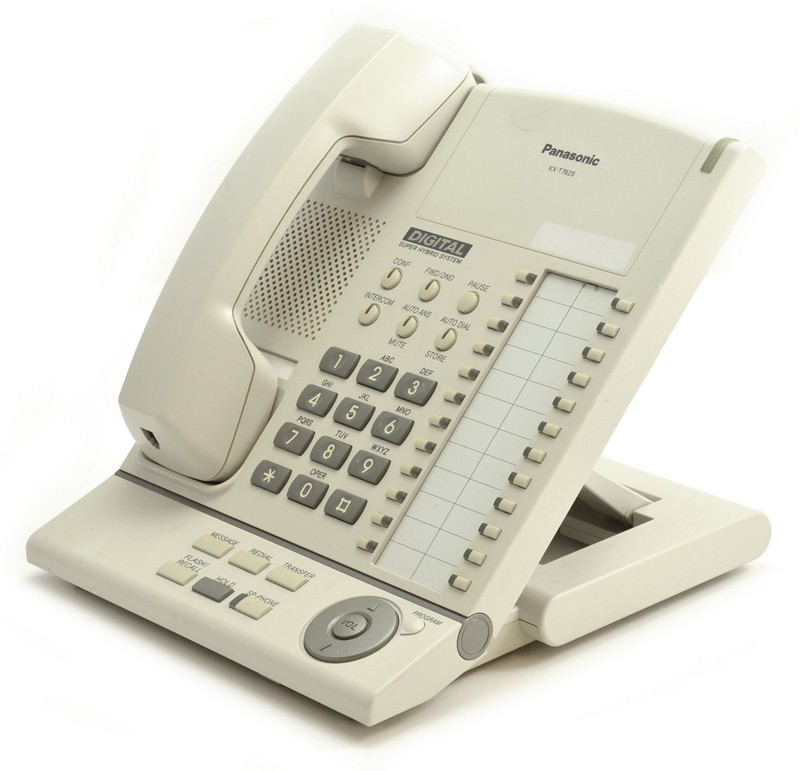

| KX-T7625 |
Digital Proprietary Telephone with Speakerphone White
Features
- Handsfree Speakerphone
- 24 Line Keys, Intercom, Speed Dial
- Call Forwarding/Do Not Disturb
- 20 Ring Tones
- Off-hook Call Announcement
- PC Integration
- 4 Tilt positions
- Extra Device Port
- USB Port
- Headset Port (2.5mm)
Compatibility
KX-TDA30,
KX-TDA100, KX-TDA200.
Quick Reference Guide
Operating Instructions
|
 |

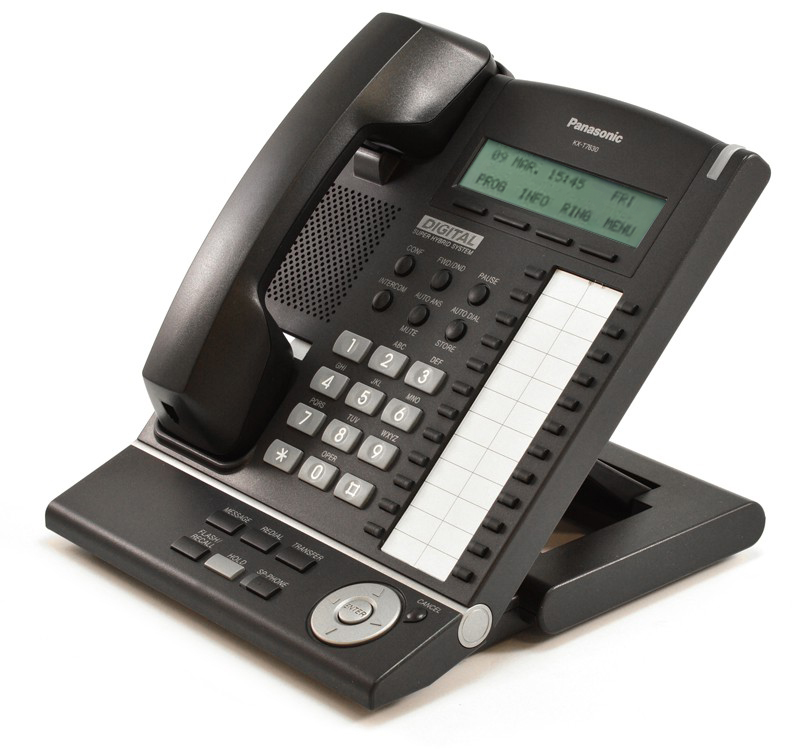

| KX-T7630 |
24 Button Digital Display Telephone
Features
- Built-In Speakerphone
- LCD Display
- 4 LCD Soft Keys
- 24 Programmable Line Keys with Dual Colour LED Light Indicators
- 4-Way Navigation Wheel
- Message Indicator Lamp (upper right corner)
- Whisper Off-Hook Call Announcement (WOHCA)
- eXtra Device Port (XDP) Jack
- Up to 1,000 system speed dial numbers
- Fixed Feature Keys: Conference, Forward/DND, Pause, Intercom,
Auto Answer/Mute, Auto Dial/Store, Message, Redial, Transfer,
Flash/Recall, Hold, and SP-Phone
Compatibility
KX-TDA30,
KX-TDA100, KX-TDA200.
Quick Reference Guide
Operating Instructions
|
 |
| KX-T7633 |
24 Button Digital Display Telephone
Features
- Built-In, Hands-Free Speakerphone
- 3-Line by 24-Character LCD Display
- 4 LCD Soft Menu Keys
- 24 Programmable Keys with Dual Colour LED Light
Indicators
- 4-Way Navigation Wheel
- Whisper Off-Hook Announce and OHCA
- Dual Colour Message Indicator Lamp (upper right corner)
- Digital XDP (eXtra Device Port) Jack
- Headset Jack
- Fixed Feature Keys: Conference, Intercom, Auto Answer,
Auto Dial, Pause, Message, Flash/Recall, Redial, Transfer,
Hold, SP-Phone, and Forward/DND
Compatibility
KX-TDA30,
KX-TDA100, KX-TDA200.
Quick Reference Guide
Operating Instructions
|
 |

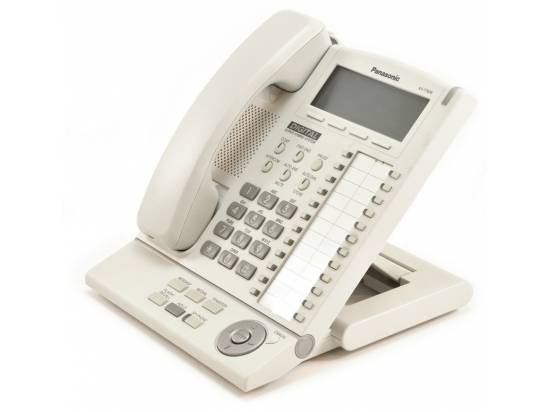

| KX-T7636 |
24 key display
speakerphone
Features
- 6-line x 24 character Caller ID LCD with backlight
- 24 Programmable CO keys with dual colour LED (optional 12
CO key add-on)
- Whisper off-hook Announce and OHCA
- Navigator key
- Hands-free speakerphone
- Large message/ringing lamp (red/green)
- Digital XDP (eXtra Device Port) Jack
- Headset jack
Compatibility
KX-TDA30,
KX-TDS50, KX-TDA100, KX-TDA200.
Quick Reference Guide
Operating Instructions
|
 |
| KX-T7640 |
DSS Console (60 key) Features
- Wall mountable
- 60 Direct Station Selection (DSS) Busy Lamp Fields
- No restrictions for Programmable Flex Keys
- Multi-Angle Tilt Body provides four angles to allow for the
most comfortable positioning
- Flexible Outside (CO) Line Buttons: 60 keys
- Green and Red illumination Dual Colour LED - colour depending
upon line status
Compatibility
KX-TDA PBX, KX-TDE PBX, KX-NCP IP PBX. |
 |
| KX-T7665 |
8 Line key speakerphone Features
- 8 Programmable Keys
- 1 line display
- Conference
- Transfer button
- Intercom
- Call mute
- Volume control
- Flash button
- Message light
- Two tilt positions
- Call hold
- Call redial
- Auto answer
- Speakerphone
Compatibility
KX-TDA30,
KX-TDA100, KX-TDA200.
|
 |
| KX-T7667 |
12 key display speakerphone
Features
- 12 Programmable Keys
- Caller ID
- Speakerphone
- 1-Line LCD Display
- Adjustable Screen Contrast
- Dual Colour LED Status Lights
- USB Port
- Speed Dial
- Call Forwarding
- Intercom
- Call Transfer
- Paging Key
- Auto Answer
- Auto Redial
- Hold
- Pause
- Flash
- Navigator Key
- Full Duplex Speakerphone
Compatibility
KX-TDA50,
KX-NCP500,
KX-TDA100,
KX-TDA200,
KX-TDA600,
KX-TDE100,
KX-TDE200,
KX-NCP1000.
|
 |
| KX-T7668 |
8 key display speakerphone
Features
-
Handsfree Speech/On Hook Dialling
-
Multi-Function
Alphanumeric Display
- FWD and DND
- Auto Dial
- Auto Answer
- Speakerphone
- 8 Programmable Keys
Compatibility
KX-TDA50,
KX-NCP500,
KX-TDA100,
KX-TDA200,
KX-TDA600,
KX-TDE100,
KX-TDE200,
KX-NCP1000.
|
 |
|
