| 1/DSP/505 This was called a Spring,
Clamping, Button and was used to hold Button, Dummies, Parts
2/DBU/258 (706) and 1/DBU/367 (746) in place.
|
|
| 1/DSP/510 This was called a Spring,
Clamping and was used to hold Button, Dummies, Parts 1/DBU/270 and
1/DBU/271 in place in a Telephone No. 711.
|
|
| 1/DSP/1233 Auxiliary gravity switch springset.
1 x C contact set.
Used in Telephone No. 706. Ericsson Part N94749.
|
|
| 1/DSP/1234 Auxiliary gravity switch springset.
1 x C and 1 x M contact sets.
Used in Telephone No. 706. Ericsson Part N92169.
|
|
| 1/DSP/1235 Gravity switch springset which is
permanently soldered to the telephone circuit board.
1 x C and 1 x M contact sets.
Used in Telephone No. 706 Mark 2. Made by Siemens Brothers.
|
|
| 1/DSP/1236 Gravity switch springset.
3 x M contact sets.
Used in the Bellset No. 47 Mark 1.
|
|

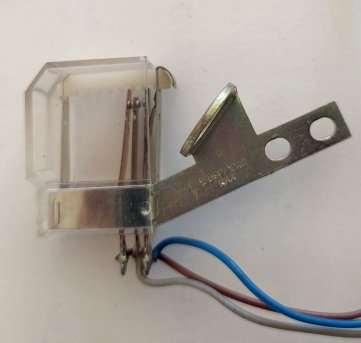

| 1/DSP/1242 Auxiliary gravity switch springset.
1 x C contact sets.
Used in Telephone No. 710. Ericsson Part N95550.
|
|

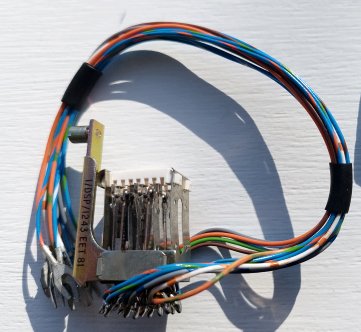

| 1/DSP/1243 Switch springset.
4 x C contact sets.
Used in Telephone No. 710, 711, 740, 741 and 746. Ericsson Part
N95551.
|
|

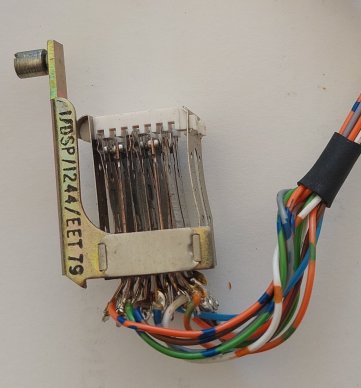

| 1/DSP/1244 Switch springset.
4 x K contact sets.
Used in Telephone No. 710, 711, 740, 741 and 746. Ericsson Part
N95552.
|
|

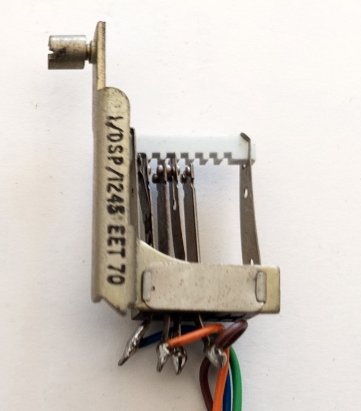

| 1/DSP/1245 Switch springset.
1 x C using springs 2, 3 and 4, and, 1 x K using springs 1, 2 and
3.
Used in Telephone No. 710, 711, 740, 741 and 746.
Ericsson Part N95553.
|
|
| 1/DSP/1247 Auxiliary gravity switch springset.
3 x K and 2 x M contact sets.
Used in Telephone No. 710, 711, 740, 741 and 746. Ericsson Part
N96059.
|
|

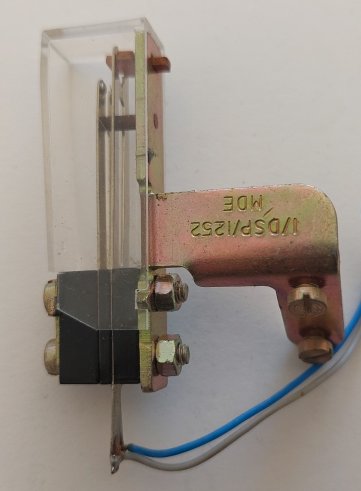

| 1/DSP/1252 Auxiliary gravity switch springset.
1 x B contact set.
Used in Telephone No. 706. Ericsson Part N95573.
|
|

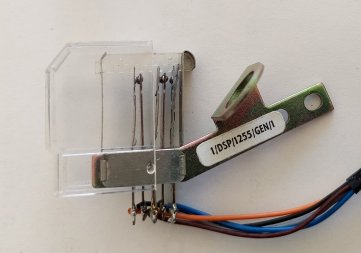

| 1/DSP/1255 Auxiliary gravity switch springset.
1 x M and 1 x C contact sets.
Used on Telephone No. 710. Ericsson Part N98100. |
|
| 1/DSP/1256 Auxiliary gravity switch springset.
1 x M contact set.
Used in Telephone No. 706. Ericsson Part N100112.
|
|
| 1/DSP/1258 Auxiliary gravity switch springset.
2 x C contact sets.
Used in Telephone No. 710. Ericsson Part N100133.
|
|
| 1/DSP/1264 Auxiliary gravity switch springset.
1 x C and 2 x M contact sets.
Used in Telephone No. 710. Ericsson Part N101512.
|
|

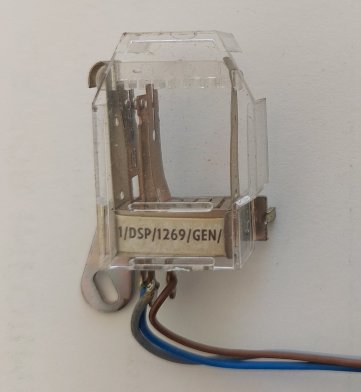

| 1/DSP/1269 Auxiliary gravity switch springset.
1 x C contact set.
Used in Telephone No. 711. Made by GEC. |
|

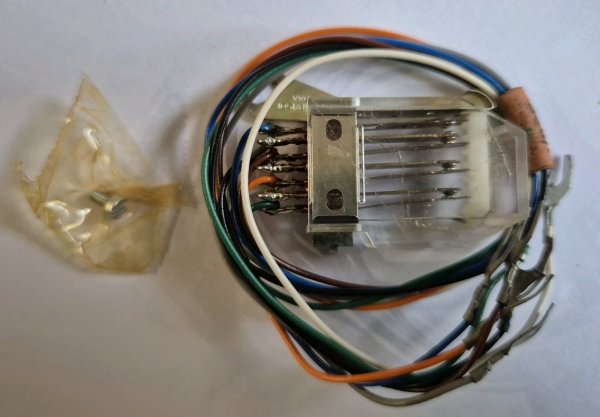

| 1/DSP/1501 Auxiliary gravity switch springset.
1 x C and 2 x M contact sets.
Used in Telephone No. 711. Made by GEC.
|
|
| 1/DSP/1507 These are springs that are used to hold the
switch frame 1/DSP1507 in place on Telephone No's 711 and 741.
|
|
| 1/DSP/3125 Switch springset.
2 x C contact sets.
Used in Telephone No.s 710, 740, 746 and Telephone, Intercom No.
4/1. Ericsson Part N113194.
|
|
| 1/DSP/3126 Switch springset.
1 x M contact sets.
Used in Telephone, Intercom No. 4/1. Ericsson Part N109796.
|
|
| |
|
