Fuse No. 1
Delayed action fuse which fits the Fuse, Mounting No. 4001.
It is a Porcelain tube with Nickel plated brass end caps.
Fuse No. 1/0.25 amps
Fuse No. 1/0.5 amps
Fuse No. 1/1.0 amps
Fuse No. 1/1.5 amps
Dimensions - 53mm x 7mm.
Siemens Brothers Part No. 20.
|
 |
|
Fuse No. 4
Fuse No. 4/1A - 0.5 amps - blue
Fuse No. 4/1B - 1 amp - yellow
Fuse No. 4/2 - 1.5 amps - red
Fixing centres - 1.25"
Superseded by Fuse No. 31.
|
 |
|
Fuse No. 5
Fuse No. 5/1A - 1 amps - yellow
Fuse No. 5/2 - 1.5 amp - red
Fuse No. 5/3A - 3 amps - black
Fixing centres - 1.25"
Superseded by Fuse No. 31.
|
|
|
Fuse No. 6
Fixing centres - 1.5"
Superseded by Fuse No. 31.
|
|
|
Fuse No. 13
Fixing centres - 1.5"
Superseded by Fuse No. 31.
|
|
|
Fuse No. 15 A cartridge type fuse, constructed of a fibre tube
with brass end caps and fixing lugs.
Fuse No. 10/5 - 5 amps
Fuse No. 10/10 - 10 amps
Fuse No. 10/15 - 15 amps
Fuse No. 10/20 - 20 amps
Fuse No. 10/25 - 25 amps
Fixing centres - 105mm.
|
 |
|
Fuse No. 16 A cartridge type fuse, constructed of a fibre tube
with brass end caps and fixing lugs.
Fuse No. 10/30 - 30 amps
Fuse No. 10/40 - 40 amps
Fuse No. 10/60 - 60 amps
Fixing centres - 118mm.
|
|
|
Fuse No. 20 A cartridge type fuse, constructed of a fibre tube
with brass end caps and fixing lugs.
Fuse No. 20/3 - 3 amps
Fuse No. 20/5 - 5 amps
Fuse No. 20/10 - 10 amps
Fixing centres - 79mm.
|
|
|
Fuse No. 21 A cartridge type fuse, constructed of a fibre tube
with brass end caps and fixing lugs.
Fuse No. 21/15 - 15 amps
Fuse No. 21/20 - 20 amps
Fuse No. 21/25 - 25 amps
Fixing centres - 98mm.
|
|
|
Fuse No. 22 A cartridge type fuse, constructed of a fibre tube
with brass end caps and fixing lugs.
Fuse No. 22/30 - 30 amps
Fuse No. 22/40 - 40 amps
Fixing centres - 118mm.
|
|
|
Fuse No. 23 A cartridge type fuse, constructed of a fibre tube
with brass end caps and fixing lugs.
Fuse No. 23/60 - 60 amps
Fuse No. 23/75 - 75 amps
Fuse No. 23/100 - 100 amps
Fixing centres - 141mm.
|
|
|
Fuse No. 24 A cartridge type fuse, constructed of a fibre tube
with brass end caps and fixing lugs.
Fuse No. 24/125 - 125 amps
Fuse No. 24/150 - 150 amps
Fixing centres - 178mm.
|
|
|
Fuse No. 27 Fixing centres - 2.05"
Superseded by Fuse No. 31.
|
|
|
Fuse No. 28/1.5 Delayed action fuse which fits the Fuse, Mounting
No. 4028.
Constructed of a flat Bakelite body with copper end caps.
Rated at 1.5 amps.
Size - 39mm x 13mm x 4mm.
Siemens Brothers Part No. 22.
|
 |
|

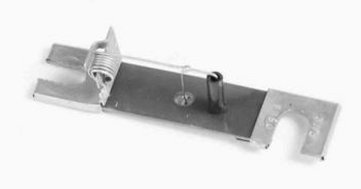

Fuse No. 31
A fuse used for alarm indication. It is a Bakelite strip with
slotted, copper end terminal plates. When the fuse is blown, an
alarm contact is released and a coloured indicator displayed.
Fuse No. 31/1 - 0.5 amps - blue
Fuse No. 31/1 - 1.0 amps - yellow
Fuse No. 31/2 - 1.5 amps - red
Fuse No. 31/3 - 3 amps - black
Fixing centres - 1.5".
Fixing centre - 40mm.
Siemens Brothers Part No. 24.
|

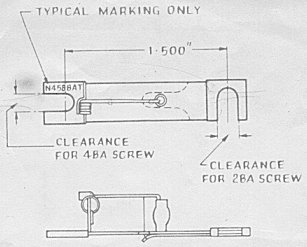

Click here for a drawing of the
Fuse
|
|

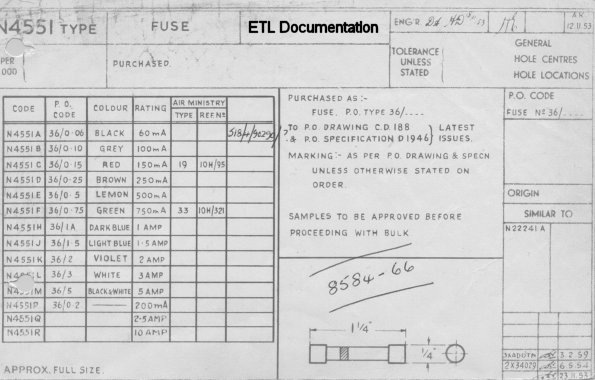

Fuse No. 36 Glass fuse with end caps.
|
Click
here for more information |
|
Fuse No. 37/2.5 A hexagonal Porcelain tube with knife edge end
contacts.
Rated at 2.5 amps.
Size - 46mm x 16mm x 7mm.
Siemens Brothers Part No. 34A.
|
 |
|

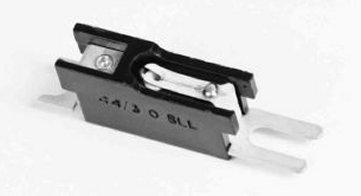

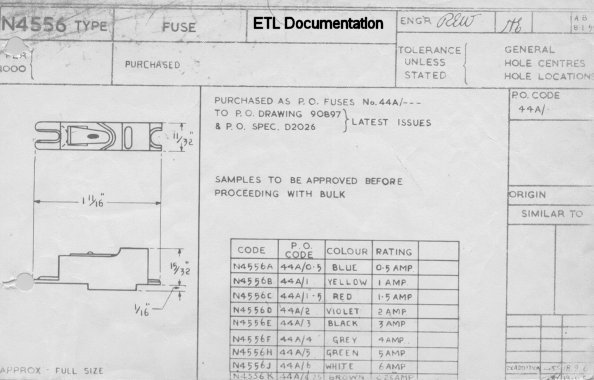

Fuse No. 44 Alarm fuse, comprising moulded plastic body fitted
with slotted brass terminal plates. Fuse No. 41/0.5 - 1 amp - Blue
Fuse No. 41/1 - 2 amps - Yellow
Fuse No. 41/1.5 - 3 amps - Red
Fuse No. 41/3 - 6 amps - Black
Fuse No. 41/10 - 10 amps - Green
Fuse No. 41/6 - 12 amps - White Fixing screws
Supply side - 2 BA.
Distribution side - 4 BA. Siemens Brothers Part No. 41. Fixing
Centres - 40mm.
Click here for more information
|
|
|

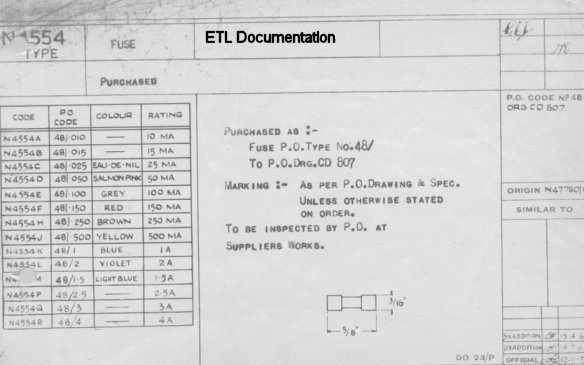

Fuse No. 48 Click here for more information
|
 |
|

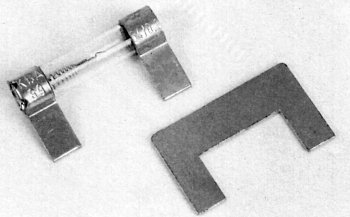

Fuse No. 64 Delayed action fuse which fits the Fuse, Mounting
No. 4001.
Fuse, Dummy No. 64A is shown to the right.
|
|
|
|
|
