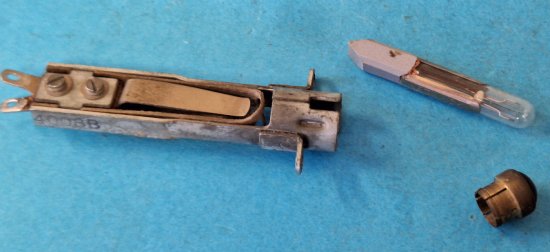

No. 10 Supervisory lamp jack used on switchboards.
With fixing lugs for 22mm thick panels,
Used with:-
Lamps No. 2.
Caps, Lamp No. 2.
|
|
|
No. 12 E.S. Socket with a Porcelain base and Bakelite cover.
Used on generator leads. |
|
|
No. 16 Pilot light holder.
Used with
Lamps No. 2.
Caps, Lamp No. 69. |
|
|
No. 17 Strip of 20 lamp, holders.
Dimensions - 10.3" x 0.5".
Used with
Lamps No. 2.
Caps, Lamp No. 1.
|
|
|
No. 19 Strip of 10 lamp, holders.
Dimensions - 10.3" x 0.5".
Used with
Lamps No. 2.
Caps, Lamp No. 1.
|
|
|
No. 25 Lamp jack in a steel frame. Used as pilot lights.
Has adjustable fixing lugs for three thicknesses of panel - 22mm,
32mm and 45mm.
Used with
Lamps No. 2.
Caps, Lamp No. 1.
|
|
|
No. 33 S.B.C. batten lamp holder.
No. 17
Strip of 20 lamp, holders.
Dimensions - 10.3" x 0.5".
Used with
Lamps No. 7.
|
|
|
No. 45
Black, moulded Bakelite case with stud fixing. Dimensions - 60mm x
34mm. |
|
