| Pulley-Weights No. 1A 24oz double pulley-weight
with pulley wheels side by side.
Used on CB No. 1 Switchboards with tinsel cords.
|
|
| |
|
| Pulley-Weights No. 6A 24oz double pulley-weight
with pulley wheels side by side.
Used on CB No. 1 Switchboards with tinsel cords.
|
|
| Pulley-Weights No. 8 16oz single pulley for general
purpose use.
|
|
| Pulley-Weights No. 9 9oz single pulley for used on
CB Switchboards.
|
|
| Pulley-Weights No. 12 20oz double pulley-weight
with one pulley wheel above the over.
Used in exchanges that use Cords, Switchboard No. 324.
|
|

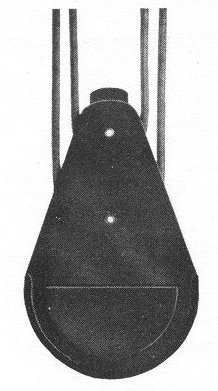

| Pulley-Weights No. 14A
Double-pulley cord weight for use in all types of cord
connecting switchboards. Specially designed so that when it is
raised or lowered, the movement is in a vertical line with no
appreciable swing. For use with heavy tinsel cords.
Overall dimensions: 7.5" x 4.5" x 7/16" (191 x 114 x 11mm).
Weight: 24 ozs (682 gm).
Used on CB No. 1 Switchboards with tinsel cords.
|
|

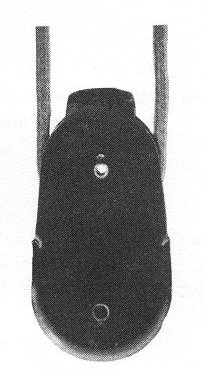

| Pulley-Weights No. 16 Single-pulley
cord weight, for use with short tinsel cords.
Overall dimensions: 4.1" x 2.1" x 7/16" (105 x 54 x 11 mm).
Weight: 9 ozs (235 gm).
|
|

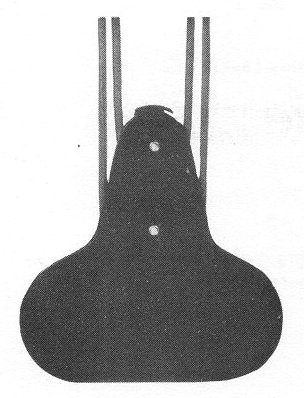

| Pulley-Weights No. 17 Double-pulley
cord weight for use with canopy cords, e.g. on trunk test racks.
Overall dimensions: 7.25" x 7" x 7/16" (184 x 178 x 11 mm).
Weight: 42 ozs. (1.2 kg).
|
|
| Pulley-Weights No. 19A 6oz nylon pulley cord for
use with the PMBX 4. |
|
