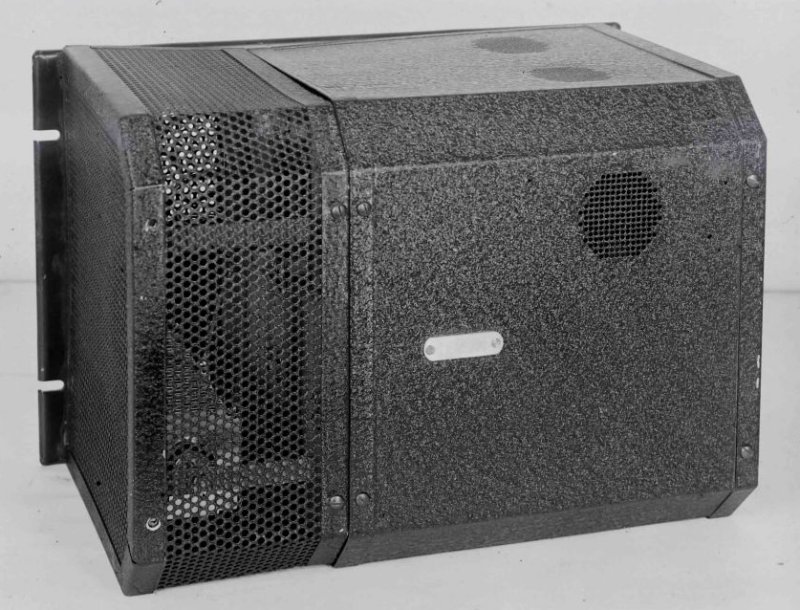

Rectifier No. 26B

Metal rectifier, electronic type. For supplying line current for Teleprinter Circuits.

Input: 100V, 200V, 220V, or 240V, single phase, 50-83 c/s.
Output: 50+50V, D.C., 0�02 amp; 80+80V, D.C., 0�02 amp.

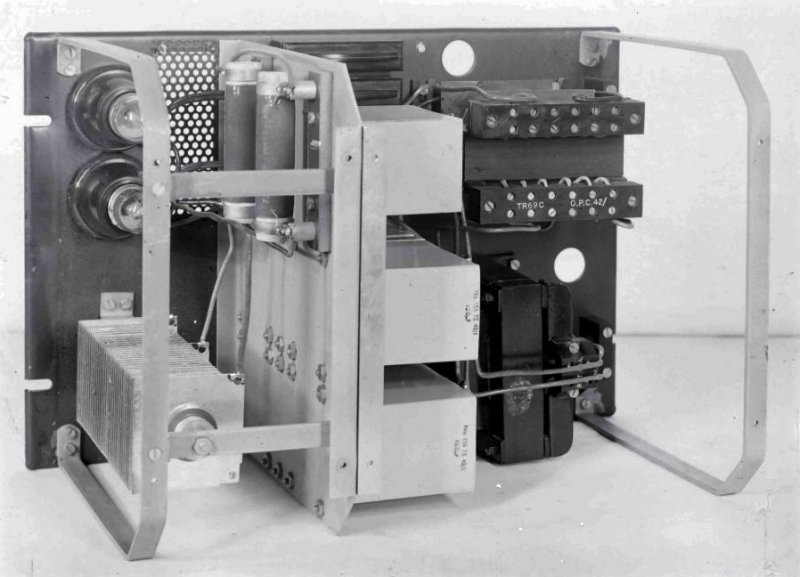

Includes:-
1 x Block, Terminal, No. 21/5.
1 x Coil, Retard, No. 6-lA.
2 x Condenser, M.C., No. 151.
5 x Condenser, M.C., No. 156.
2 x Cut-outs No. 121A.
2 x Jacks, Lamp, No. 12.
1 x Rectifier-element No. SETF 2.
1 x Resistor, Coil, No. 21-2000ohms.
1 x Transformer No. 69C.
