RELAYS - LETTERED

Before the GPO started to number relays, they were either described or lettered.

This page shows some of the lettered variety.  These were mounted on a wooden base which also had the terminals fitted.  Later a square base was introduced which could be fitted with spring clips and then plugged into a mounting.

The relays were enclosed in a tin cover with a glass, opening, window on the top.  This allowed visual inspection of the contact points when adjust via the Vernier screw on the side of the casing.

Relay, Standard A

For general telegraph purposes, except Wheatstone circuits.




Relay, Standard B

7 terminal rectangular base, with earlier supplies having only 6 terminals.


For Baudot sets and repeaters boards on which spring contact clips are used.

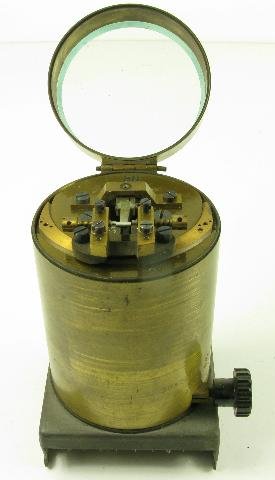

Relay, Standard BN

For Panels, Telegraph, For jacking-in to Baseboards, No. 26.

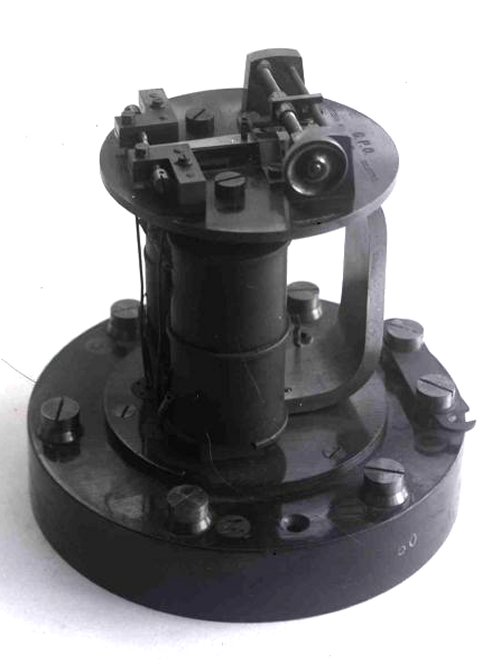

Relay, Standard C






Relay, Standard G




10 terminal rectangular base.

Used with Wheatstone receivers.

Diagram - TG261.




Relay, Standard GN

For Panels, Telegraph, For jacking-in to Baseboards, No. 26.







Relay, Standard H

12 terminal change-over relay with multiple windings on each bobbin.

Diagram - TG416

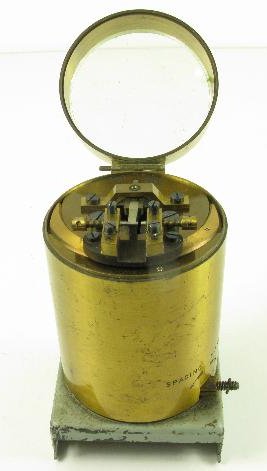

Relay, Standard HN

For Panels, Telegraph, For jacking-in to Baseboards, No. 26.

Base fits a Jack No. 48.




Relay, P1 B








Pictures

Relay ready to be inserted into mounting



Relay inserted into mounting
