SIEMENS BROTHERS No. F1061 - F1069

INTERCOMMUNICATION TELEPHONES
Automatic replacement - Metallic Circuits

(Wall Pattern)

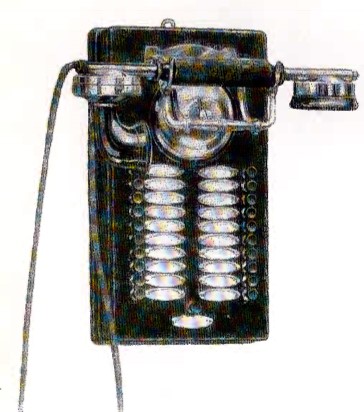

F1067

F1061 to F1069
Battery Inter-communication Telephone, Wall Pattern, in polished Walnut Case; comprising self-replacing press-button Line-Selectors, Hand-Microtelephone, Induction Coil, Battery Bell, and Automatic Switch Cradle.

These instruments are arranged to operate with a common ringing battery, a dry cell being installed in the transmitter circuit of each  instrument for speaking purposes. By means of this arrangement, and using the metallic circuit type telephone cable throughout the installation, immunity from cross-talk is secured.

The press button line-selectors are so arranged that after removal of the hand-Microtelephone from the cradle switch, any number of press buttons may be depressed simultaneously, permitting a general call to be sent to the stations selected; thus directions may be given to a number of persons at the same time.

All selectors are replaced automatically when the hand-micro-telephone is returned to the rest.

F1061 - 4 lines
F1062 - 6 lines
F1063 - 8 lines
F1064 - 10 lines
F1065 - 12 lines
F1066 - 16 lines
F1067 - 20 lines
F1068 - 24 lines
F1069 - 30 lines


Taken from the Siemens Brothers Catalogue "Telephones and Telephone Switchboards for private installation" 1913
